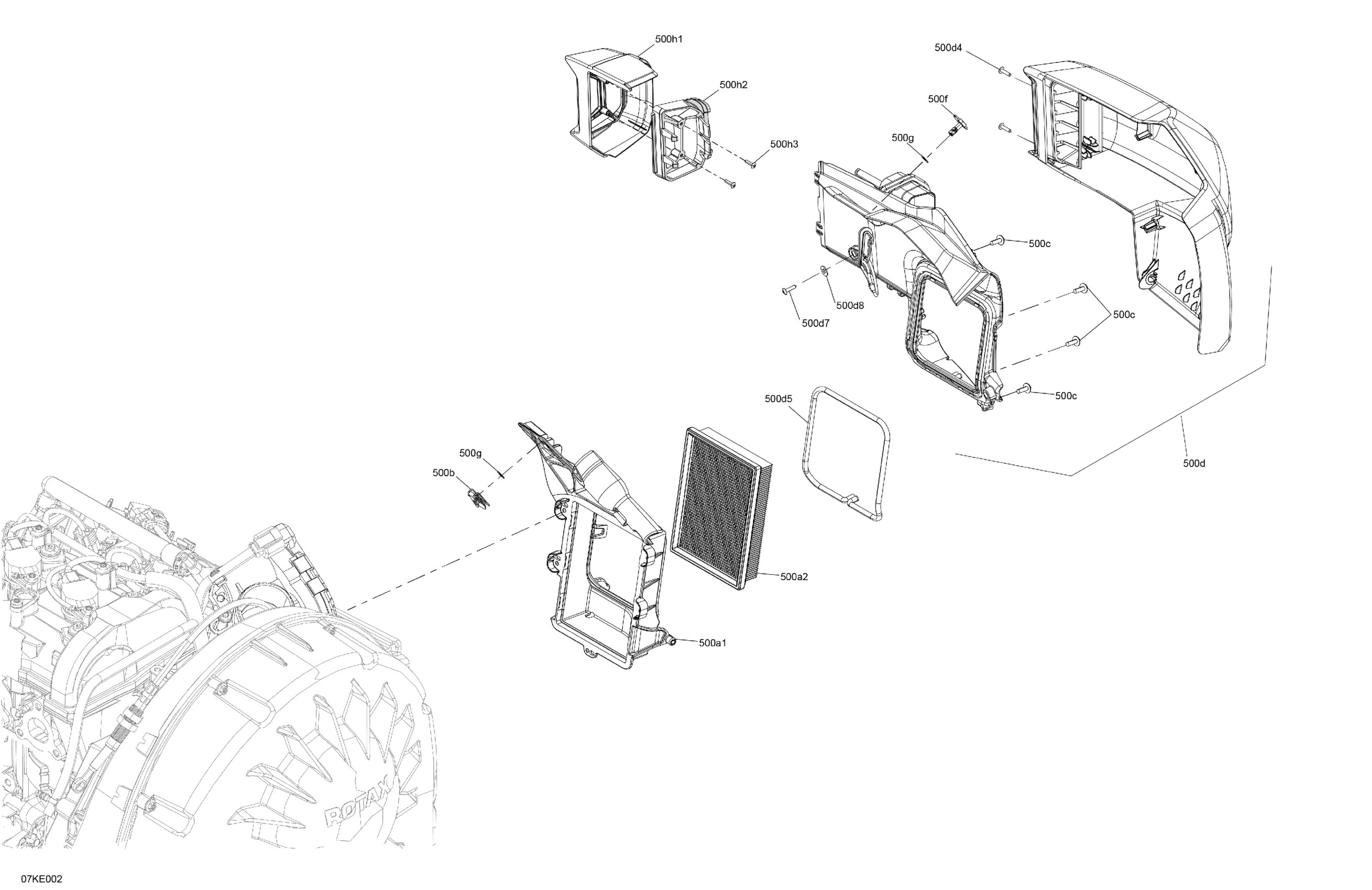

Can-Am North America - RYKER - RALLY - 900 ACE - F3SC - CARB - Deep Black, 2025 02- Engine - RH Air Intake Diagram

Description

Price

500a1

Baseplate

706600370

$22.49

500a2

Air Filter

707800306

$46.49

500b

Quarter Turn Nut

705002651

$4.76

500c

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

500d

Side Cover Ass'y

706600404

$144.99

500d4

Torx-Truss Pt K40 X 16

250000759

$2.11

500d5

Neoprene Seal

707800817

$14.49

500d6d

Cord Decal

704905127

Unavailable

500d7

Torx-Truss Pt K40 X 16

250000759

$2.11

500d8

Flat Washer

224061121

$0.53

500f

Quarter-Turn Screw

705013609

$14.99

500g

Washer

705002650

$2.68

500h1

RH Filter Support

705015092

$12.17

500h2

Carbon Black, RH Fairing Trim

705016509

$159.99

500h3

Torx-Truss Pt K40 X 16

250000759

$2.11
