Description

Price

1

CDI UNIT ASS'Y - Call your local BRP dealership

S30400RCA000

Unavailable

2

Ignition Coil

S3051ARB1000

$56.99

4

Battery 12 Amp

715900031

$124.99

5

Redresseur *Rectifier

S31600RCA010

$243.49

6

Connector Bracket

S31601RCA000

$11.05

7

Head Light Rear Cover Ass'y

S6310BRCA000

Unavailable

8

Not Available As Spare Parts

NASP/NDPR

Unavailable

9

Clip Nut

S90302V02000

$0.53

10

Tapping Screw M4 X 12

S9390334380

$0.42

13

Ground Cable

S32412RB1000

$19.99

14

Rear Stop Switch Ass'y

S35350RCA000

$21.99

15

Starter Solenoïd

S3585ARCA000

$36.99

16

Horn

S38110RCA000

Unavailable

17

Flasher Relay

S38301RA1000

Unavailable

18

DC Power Outlet, 12 Volts

S38600RA1000

$30.49

19

Flange Bolt M5 X 22

S90112GK8000

$0.92

20

Flanged Nut 6 mm

S9405006070

$0.46

21

Flanged Bolt M6 X 12

S958010601207

$0.42

22

Flanged Bolt M6 X 16

S958010601607

$0.42

23

Flanged Bolt M8 X 12

S958010801207

$0.77

24

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

25

ELECTRICAL HARNESS ASS'Y - Call your local BRP dealership

S32100RCA000

Unavailable

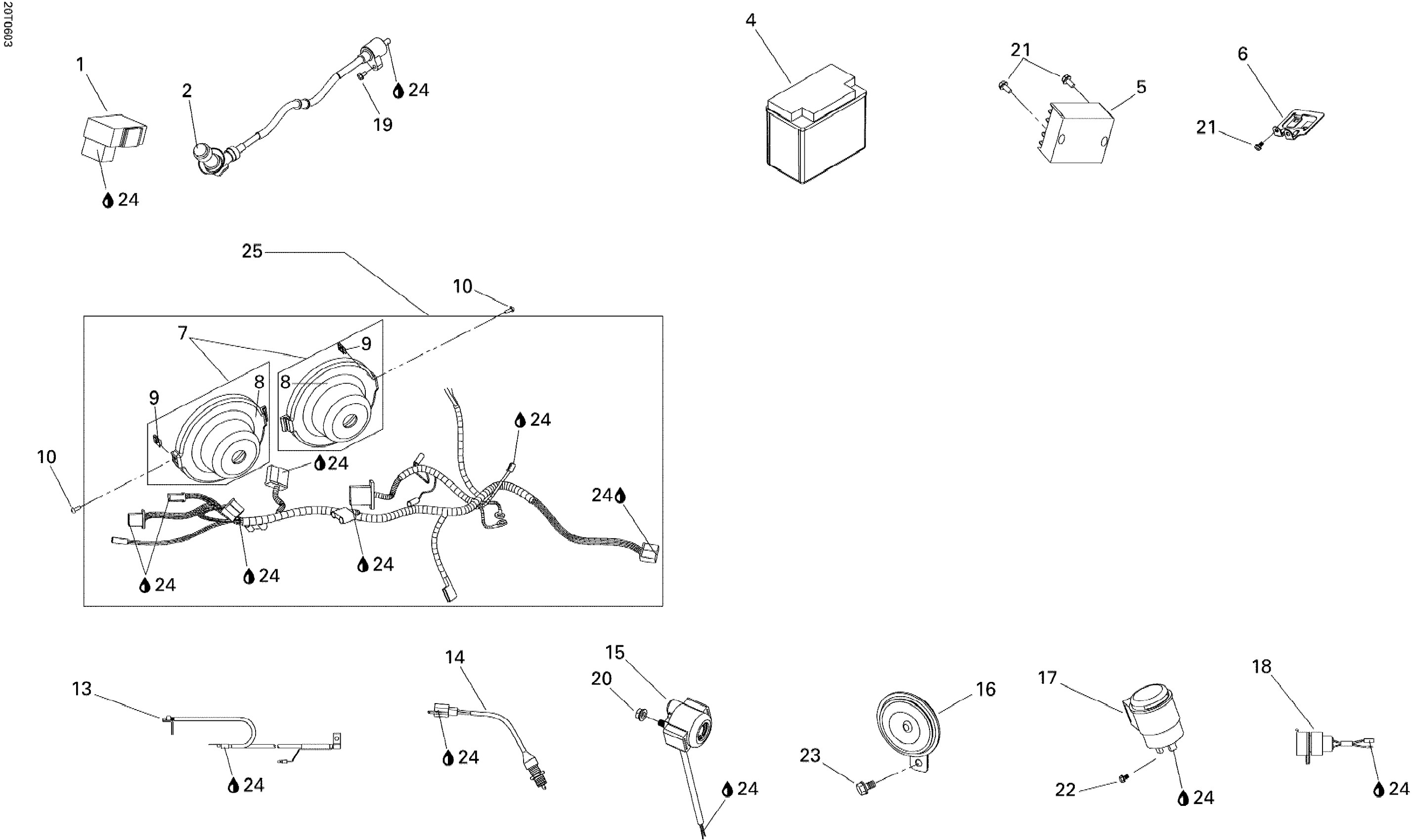

Can-Am DS 250, CE, 2006 10- Electrical Components Diagram

CDI UNIT ASS'Y - Call your local BRP dealership

Ignition Coil

Battery 12 Amp

Redresseur *Rectifier

Connector Bracket

Head Light Rear Cover Ass'y

Not Available As Spare Parts

Clip Nut

Tapping Screw M4 X 12

Ground Cable

Rear Stop Switch Ass'y

Starter Solenoïd

Horn

Flasher Relay

DC Power Outlet, 12 Volts

Flange Bolt M5 X 22

Flanged Nut 6 mm

Flanged Bolt M6 X 12

Flanged Bolt M6 X 16

Flanged Bolt M8 X 12

Was 293550004 Dielectric Grease, 150 g

ELECTRICAL HARNESS ASS'Y - Call your local BRP dealership
