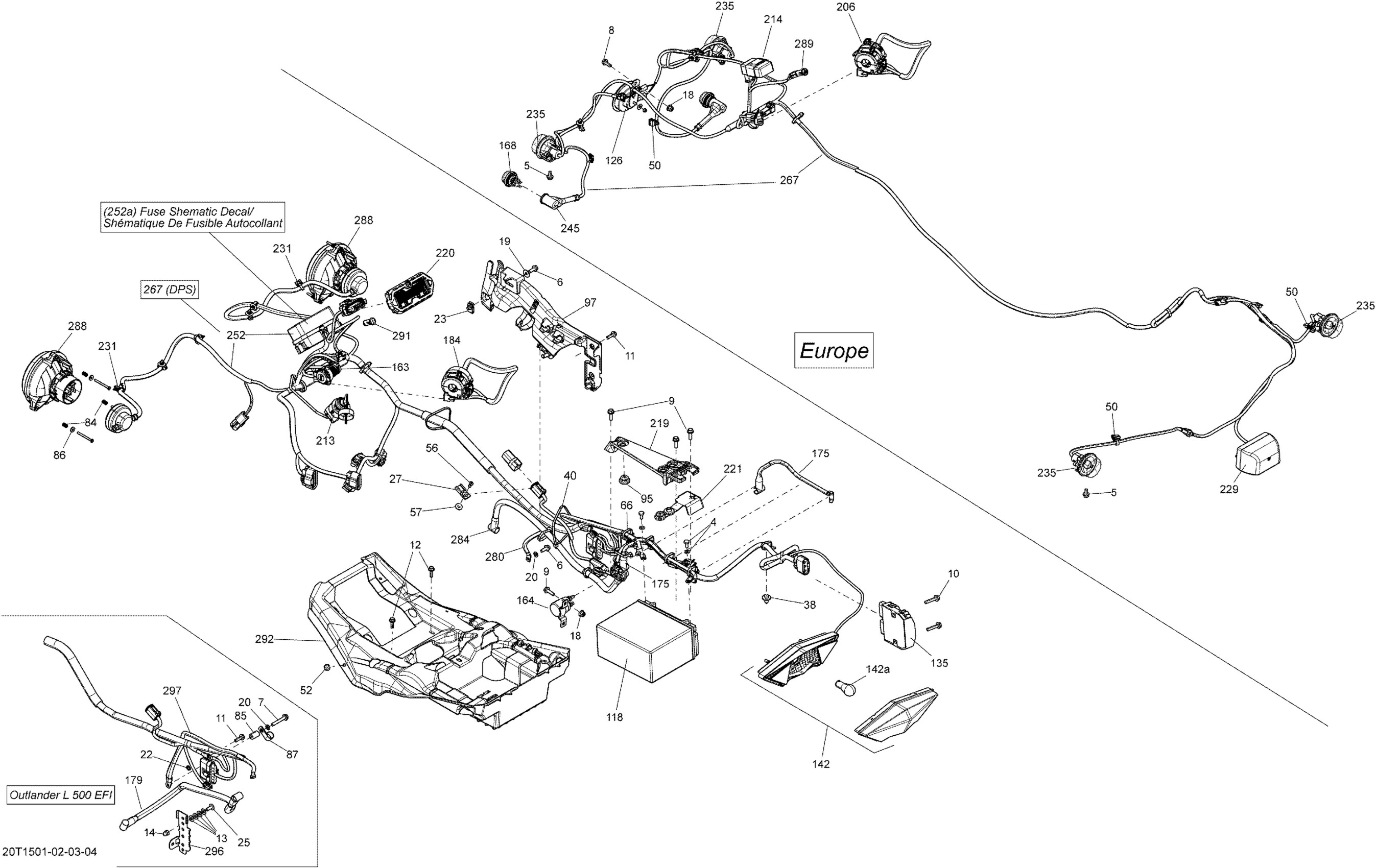

Can-Am Outlander L 500 EFI, 2015 10- Electrical System _20T1503 Diagram

Battery Bolt Kit

250000282

$7.29

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

Not Available As Spare Parts

XXX

Unavailable

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Screw M6 X 20

207662084

$1.69

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Flange Screw M6 X 20

210262040

$2.11

Hexagonal Head Screw

210262050

$2.11

Flat Washer

224061121

$0.53

Domed Nut M6

232361493

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Not Available As Spare Parts

XXX

Unavailable

Lock Washer Helical M6

234161601

$1.15

External Serrated Lock Washer 6 mm

234461608

$1.15

Not Available As Spare Parts

XXX

Unavailable

Torx Screw M6 X 16

250000223

$2.11

Clip

270000141

$11.49

Mount Dart

293730040

$1.04

Tie Wrap 368 mm

293750008

$1.04

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

Rubber Bumper

293830005

$8.09

Pop Rivet 3/16"

390402300

$0.75

Washer | DS 650 X

391301600

$0.48

Tie-Rap 180 mm

414115200

$0.11

Spring

517168600

$7.39

Spacer

517203200

$16.18

Flat Washer

517225900

$0.18

Open Clamp

518321570

$7.69

Stopper Rubber

705014429

$5.95

Not Available As Spare Parts

XXX

Unavailable

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Horn

710004791

$38.99

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$74.99

DC Outlet

710001248

$37.99

Starter Relay

710007777

$48.49

Day Light | Europe

710001726

$35.99

Positive Cable

710004376

$48.99

POSITIVE CABLE - Call your local BRP dealership

710001750

Unavailable

Switch Kit | XT, XTP, XMR, LTD

703500920

$97.49

Handle Kit | STD

703500919

$74.99

Multi-Function Handle

710004040

$179.99

Ignition Switch With Key

710002323

$86.99

Flasher Unit

710003239

$78.49

Fixation Plate

710002404

$9.39

Speedometer

710005087

$399.99

Battery Cable Cap

710006729

$7.20

License Plate Light | Europe

710005563

$126.99

Tie-Rap Clip

710002896

$4.39

Flasher | Europe

710002964

$35.99

Cap Protector | Model-Europe

710003269

$12.11

WIRING HARNESS ASSEMBLY - Call your local BRP dealership | Package-STD

710003353

Unavailable

Wiring Harness Ass'y | Includes 1 to SS2

710004595

$989.99

Wiring Harness Assembly | Includes 1 To RRF

710004331

$134.99

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Low Beam

710003900

$114.99

Bulb, 12V 35/35W

710000871

$34.99

Pilot Lamp | Model-Europe

710003909

$21.99

Pilot Lamp Cap

710003910

$4.29

Battery Support

710006561

$50.99

Connector Bracket

710004118

$5.40

Ground Cable

710004382

$19.99

Bulb

520000758

$9.10

Fuse Shematic Decal

710003976

$0.01
