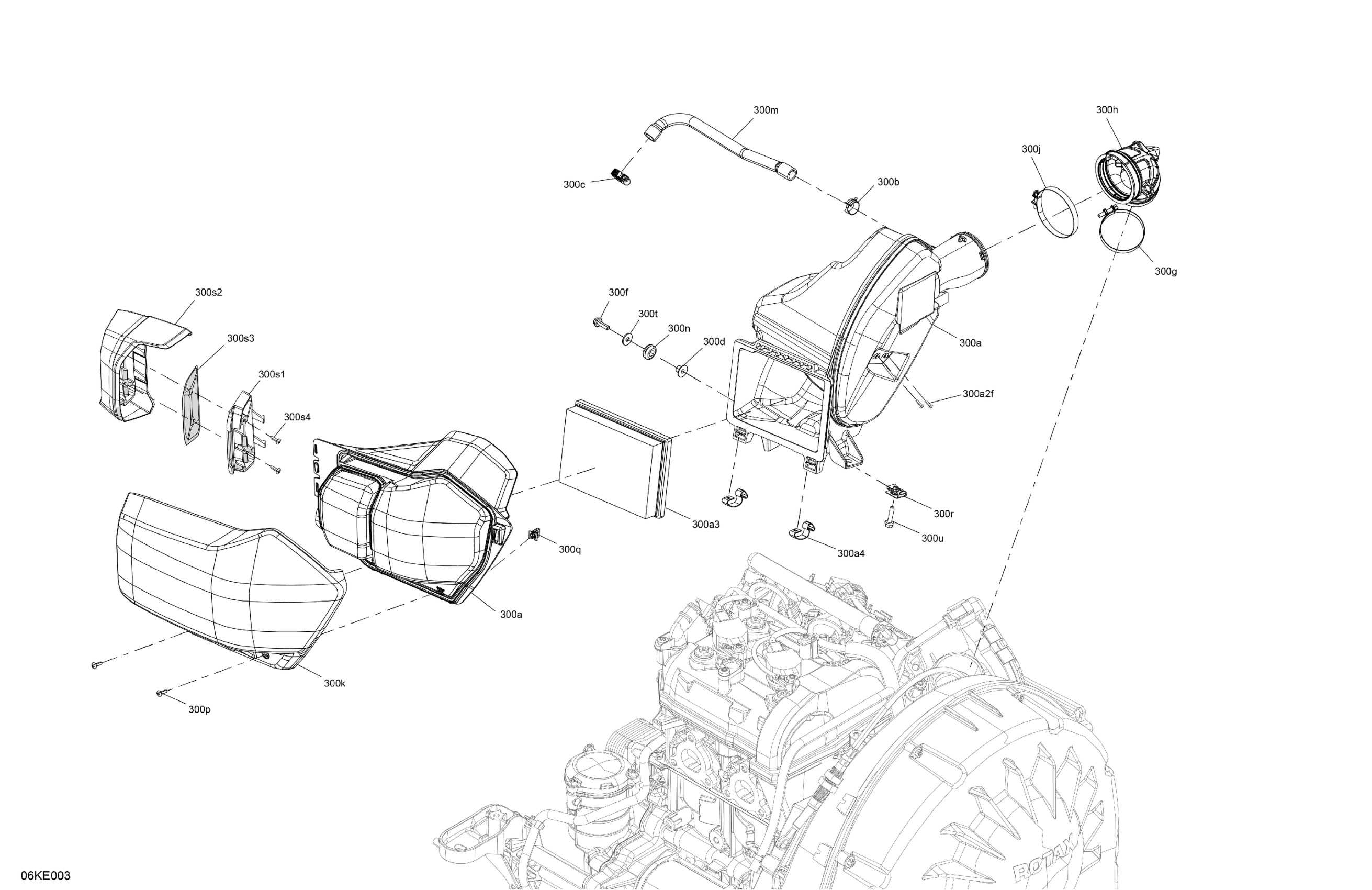

Can-Am North America - RYKER - RALLY - 900 ACE - F3SA - Deep Black, 2025 02- Engine - LH Air Intake Diagram

Description

Price

300a

Intake Silencer Ass'y

707801071

$184.99

300a2f

Torx-Truss Pt K40 X 16

250000759

$2.11

300a3

Air Filter

707800306

$46.49

300a4

Cover Retainer

707800342

$9.19

300b

Spring Clamp

513033865

$4.49

300c

Clamp Gear

293650285

$3.27

300d

Bushing

709001288

$9.09

300f

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

300g

Gemi Clamp

293650229

$11.60

300h

Air Intake Silencer Adaptor

707800712

$33.99

300j

Gemi Clamp

508000150

$12.72

300k

Lateral Cover

707801015

$114.99

300m

Formed Hose

707800710

$34.99

300n

Grommet

709001197

$5.29

300p

Torx-Truss Pt K40 X 16

250000759

$2.11

300q

Edge Clip

517302785

$0.88

300r

Flat Washer

250200082

$0.42

300s1

LH Filter Support | Includes 1000a to 1000d

705015093

$12.17

300s2

Carbon Black, LH Fairing Trim

705016508

$159.99

300s3

Filter

508001076

$38.99

300s4

Torx-Truss Pt K40 X 16

250000759

$2.11

300t

Panel Nut M6 X 1.0

250100208

$1.46

300u

Hex. Flange Screw M6 X 25

207662544

$0.64
