Description

Price

7

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

8

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

9

Hex. Flange Screw M6 X 16

207661654

$2.11

10

Hex. Flange Screw M6 X 20

207662054

$1.01

11

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

12

Hex. Flange Screw M8 X 20

207682044

$1.15

13

Carriage Bolt M6 X 35

207763554

$2.11

14

Hex. Flange Screw M6 X 12

210261250

$1.90

15

Flat Washer

224061201

$1.37

16

Square Nut M6

232862412

$1.49

17

Flange Elastic Nut M5

233251434

$2.00

18

Flange Elastic Nut M6

233261434

$4.44

19

Hex. Flange Elastic Nut M8

233281434

$2.11

20

Elastic Flange Nut M8

233281464

$1.01

22

Flat Washer 6 mm

234062410

$0.77

23

Stainless Steel Flat Washer

234062670

$2.11

24

Hex. Screw M8 X 20

236282084

$1.48

25

Hex. Flange Screw K50 X 20

241152060

$1.99

26

Panel Nut M6 X 1.0

250100198

$2.11

28

Torx Screw M6 X 20

250000722

$1.68

29

Hex Torx Truss M8 X30

250000745

$3.17

30

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

31

Torx Truss Screw M8 X 50

250000761

$7.51

32

Elastic Flange Nut M8

250100131

Unavailable

33

Tuflok Plastic Rivet

293150230

$1.47

34

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$38.99

35

Insert Half Hex Body M8 x 1.25

293450307

$2.69

36

Rubber Pad

293830163

$10.49

50

Red Reflector

705011221

$14.49

51

Grommet

705003264

$4.09

54

Engine Cover

705003444

$22.99

55

Console Support Ass'y | Model-Europe/International

715006101

$63.99

56

Yellow, LH Lateral Panel | Yellow

705003446

$57.99

56

Viper Red, LH Lateral Pannel | Viper Red

705005237

$73.99

56

PANEL_BODY LH B-005 - Call your local BRP dealership | Camo

705005238

Unavailable

56

Quarry Gray LH Lateral Panel | Model-Gray

705007530

$61.99

56a

Not Available As Spare Parts

XXX

Unavailable

57

PANEL_BODY RH B-005 - Call your local BRP dealership | Camo

705009118

Unavailable

57

PANEL_BODY RH B-365 - Call your local BRP dealership | Model-Gray

705009116

$59.99

57

Viper Red, RH Lateral Panel | Viper Red

705009115

$57.99

57

Yellow, RH Lateral Panel | Yellow

705009019

$57.99

59

Not Available As Spare Parts

XXX

Unavailable

60

Stopper Rubber

705014429

$5.95

61

Deflector_Body Panel Kit

715007008

$28.99

62

Not Available As Spare Parts

XXX

Unavailable

62a

Not Available As Spare Parts

XXX

Unavailable

63

Not Available As Spare Parts

XXX

Unavailable

64

Shiftgate Trim | Europe

705005003

$10.49

65

RH Structural Footboard

705011542

$109.99

67

LH Structural Footboard

705011540

$119.99

73

CAMO FRONT FENDER - Call your local BRP dealership | Model-OUT Camo North America

715002685

Unavailable

73

GREY FRONT FENDER - Call your local BRP dealership | Model-OUT Grey Europe

715002665

$199.99

73

GREY FRONT FENDER - Call your local BRP dealership | Model-OUT Grey International

715002666

Unavailable

73

Grey Front Fender | Model-OUT Grey North America

715002663

$204.99

73

Viper Red, Front Fender | Model-OUT Viper Red International

715002681

$204.99

73

Viper Red, Front Fender | Model-OUT Viper Red North America

715002679

$204.99

73

YELLOW FRONT FENDER - Call your local BRP dealership | Model-OUT Yellow Europe

715002673

Unavailable

73

YELLOW FRONT FENDER - Call your local BRP dealership | Model-OUT Yellow International

715002674

Unavailable

73

Yellow Front Fender | Model-OUT Yellow North America

715002671

$204.99

74

Front Facia | Model-Europe

705009335

$99.99

74

Front Facia | Model-North America, International

705009334

$119.99

75

Deep Black, Rear Luggage Rack

705017598

$275.49

77

Rear Facia | Except Model- Europe

705005576

$45.99

77

REAR FACIA - Call your local BRP dealership | Model- Europe

705007445

Unavailable

78

Dash Kit

715006098

$30.99

85

Storage Cover | Model-Europe International

715004412

$219.99

86

Black, Front Luggage Rack

705006887

$285.99

88

Front Frame

705017337

$264.99

95

RH Footrest

705007723

$104.99

96

LH Step

705007040

$97.99

97

Gage Support

705007066

$44.99

98

Storage Cover | Model-Europe International

715004412

$219.99

99

CAP - Call your local BRP dealership

414859400

Unavailable

103

CAMO LH REAR FENDER - Call your local BRP dealership | Model-OUT Camo North America

715002712

Unavailable

103

GREY LH REAR FENDER - Call your local BRP dealership | Model-OUT Grey Europe

715002689

Unavailable

103

GREY LH REAR FENDER - Call your local BRP dealership | Model-OUT Grey International

715002691

Unavailable

103

GREY LH REAR FENDER - Call your local BRP dealership | Model-OUT Grey North America

715002687

Unavailable

103

VIPER RED LH REAR FENDER - Call your local BRP dealership | Model-OUT Viper Red International

715002711

Unavailable

103

Viper Red LH Rear Fender | Model-OUT Viper Red North America

715002707

$139.99

103

YELLOW LH REAR FENDER - Call your local BRP dealership | Model-OUT Yellow Europe

715002699

Unavailable

103

YELLOW LH REAR FENDER - Call your local BRP dealership | Model-OUT Yellow International

715002701

Unavailable

103

YELLOW LH REAR FENDER - Call your local BRP dealership | Model-OUT Yellow North America

715002697

Unavailable

104

GREY RH REAR FENDER - Call your local BRP dealership | Model-Grey Europe

715002721

Unavailable

104

FENDER REAR R B-365 - Call your local BRP dealership | Model-Grey North America

705008501

$179.99

104

Viper Red, RH Rear Fender | Model-Viper Red International

715002723

$139.99

104

Viper Red, RH Rear Fender | Model-Viper Red North America

705012738

$139.99

104

FENDER REAR R B-387 - Call your local BRP dealership | Model-Viper Red North America

705008651

Unavailable

104

YELLOW RH REAR FENDER - Call your local BRP dealership | Model-Yellow Europe

715002719

Unavailable

104

Yellow, RH Rear Fender | Model-Yellow North America

705007210

Unavailable

108

LH Box Rear Latch

705007448

$11.99

109

Plate Support | Model- Europe

705007449

$27.99

112

Heat Deflector Sheet

705007487

$5.09

113

Retaining Rod

705007531

$78.99

115

Not Available As Spare Parts

XXX

Unavailable

120

RH Box Rear Latch

705007921

$13.49

121

Not Available As Spare Parts

XXX

Unavailable

124

LH Inner Fender

705012338

$28.49

125

RH Front Wheel Arch Protector

705017023

$28.49

127

Grille Shift Lever | Model- 450 North America, 450 International

705011551

$26.99

127

Shifter Gate | Model- 450 Europe

705011552

$26.99

130

Protective Plate Kit

715002374

$64.49

131

Console Support Insert

705010406

$16.99

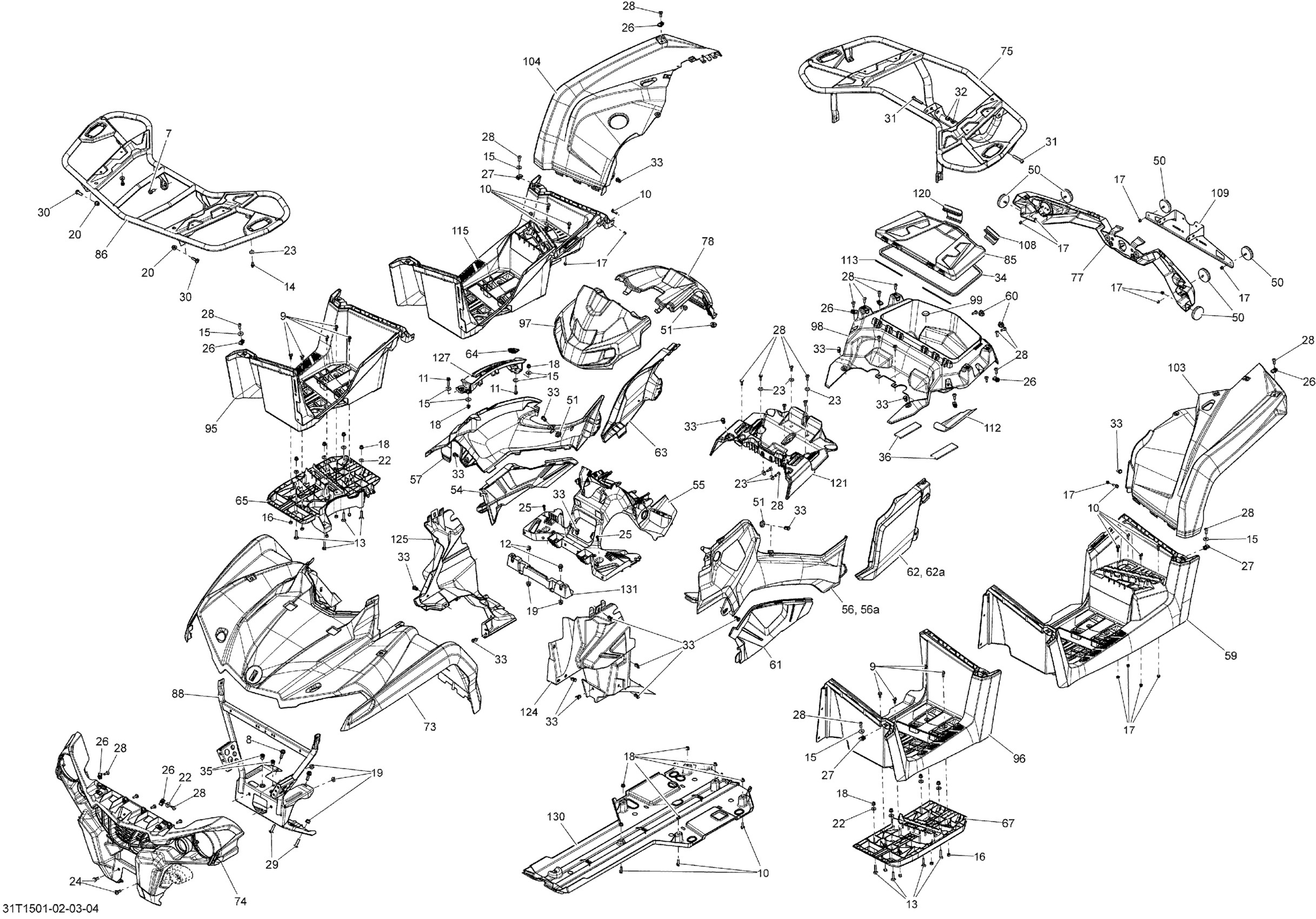

Can-Am Outlander L 450 EFI, 2015 09- Body And Accessories _31T1501 Diagram
