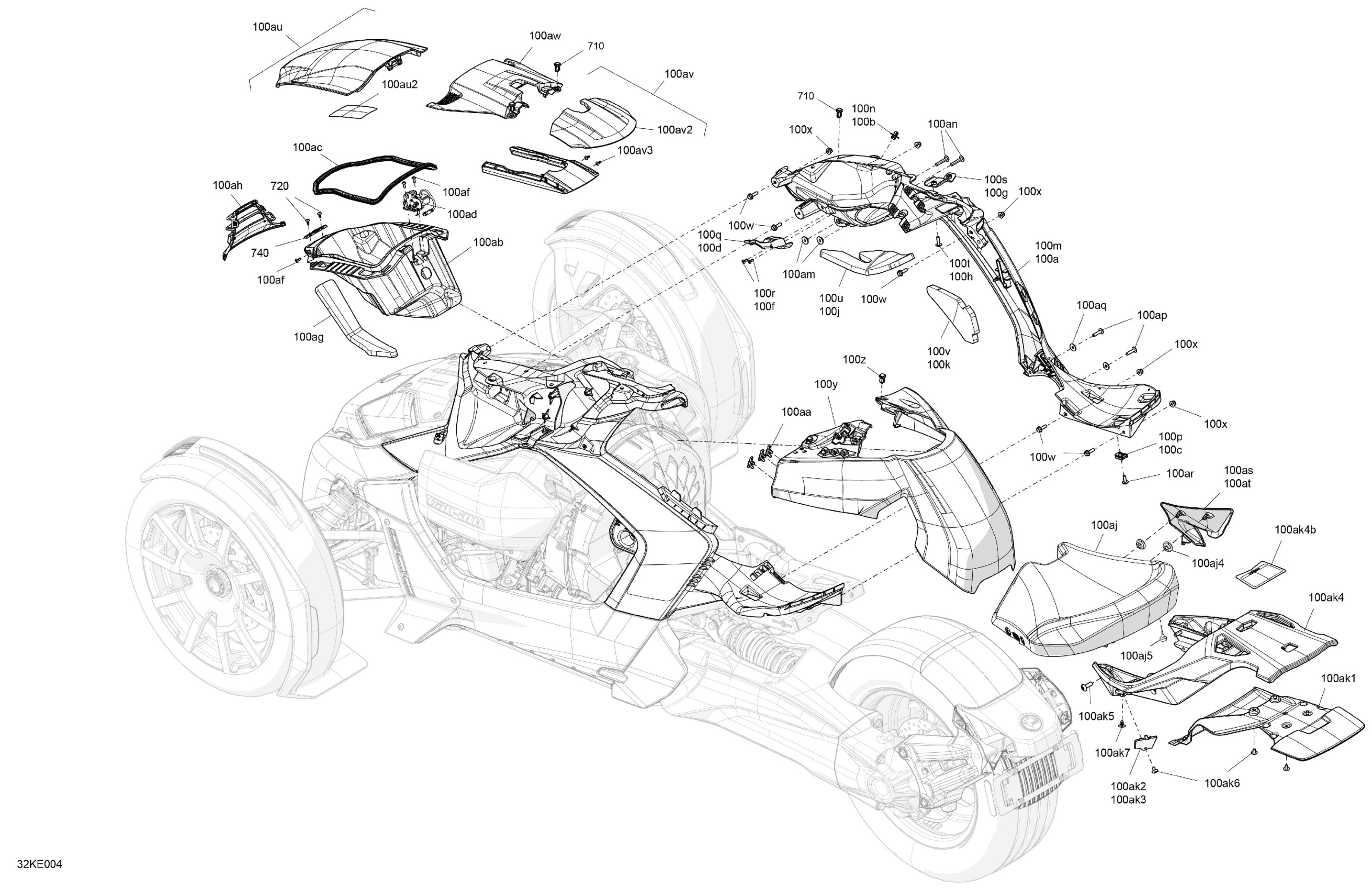

Can-Am International - RYKER - RALLY - 900 ACE - F3SB - Deep Black, 2025 07- Body - Upper Section Diagram

LH Upper Frame

705208901

$144.99

Dart Clip

293730080

$1.15

Panel Nut M6 X 1.0

250100208

$1.46

LH Holder (support)

705013415

$4.19

Torx Truss PT K40 x 12

250001131

$2.11

Low Beam Support Ass'y

705207855

$20.99

Torx Screw M6 X 20

250000722

$1.68

LH Upper Front Acoustic Foam

705013944

$4.39

LH Upper Rear Acoustic Foam

705013946

$19.49

RH Upper Frame

705208902

$144.99

Dart Clip

293730080

$1.15

Panel Nut M6 X 1.0

250100208

$1.46

RH Holder (support)

705013416

$4.19

Torx Truss PT K40 x 12

250001131

$2.11

Low Beam Support Ass'y

705207855

$20.99

Torx Screw M6 X 20

250000722

$1.68

RH Upper Front Acoustic Foam

705013945

$5.49

RH Upper Rear Acoustic Foam

705013947

$19.49

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Elastic Nut M6

233261466

$2.00

Tank Trim

705016524

$214.99

Tuflok Plastic Rivet

293150230

$1.47

Connector Support

515179692

$2.09

Storage Compartment Front

705205819

$109.99

Neoprene Seal Joint

708200794

$15.99

Latch Lid Ass'y

705015497

$154.99

Torx Truss PT K40 x 12

250001131

$2.11

Acoustic Foam, Storage Compartment

705013943

$4.39

Center Front Fairing

705013110

$20.99

Driver Seat Ass'y | Includes 100ad to 100ad5

708003307

$489.99

Grommet

705003264

$4.09

Rubber Stopper

708000759

$4.19

Upper Rear Fender

705013197

$204.99

LH Cover

705013619

$6.99

RH Cover

705013620

$6.99

Passenger Chassis Module Kit

219401169

$405.99

Warning Decal, Passenger

704907499

Unavailable

Torx Truss M8 X 25

250000874

$2.11

Torx-truss M/s M6 X 10

250000995

$4.44

Rivet, Plastic

293730084

$4.39

Large Shoulder Nut M6

705014119

$6.14

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Torx Truss Screw M6 X 16

250000721

$1.69

RH Rear Chassis Trim

705016201

$8.49

LH Rear Chassis Trim

705016202

$8.49

Deep Black, Front Cover | Includes 100at to 100at2

705015113

$80.99

Decal Aesthetic Notice

704907056

Unavailable

Fuel Door Filler Ass'y | Includes 100au to 100au3

705017593

$51.99

Fuel Door Filler

705017575

$51.99

Torx-Truss Screw K40 X 10

250001034

$0.98

Upper Fairing

705017574

$38.99

Tuflok Plastic Rivet

293150230

$1.47

Torx-Truss Screw K40 X 10

250001034

$0.98

Pivot

705013475

$1.49

Torx Truss PT K40 x 12

250001131

$2.11
