Description

Price

1a

DRIVE ASS'Y - Call your local BRP dealership | Includes 1 to 24

420684221

Unavailable

1b

Bevel Gear Ass’y

420635558

$659.99

2

Washer Thrust Set

420281300

$95.49

3

Ball Bearing 6405

420632280

$98.49

4

O-Ring

420430373

$3.17

5

Oil Seal

420650683

$19.49

6

Ball Bearing

420932822

$30.49

7

Thrust Washer Set, MAG Side

420281306

$61.49

8

Axial Needle Bearing

420632300

$18.49

9a

Gear Wheel Set | 400HO, Includes 2a to 7

420281285

$499.99

9b

Needle Bearing

420632070

$25.99

10

Retaining Ring

420245850

$5.31

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Thrust Washer Set, CVT Side

420281302

$86.99

16a

Countershaft Ass'y, 11 Teeth | Includes 10 to 18

420620441

Unavailable

16b

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Needle Bearing

420632070

$25.99

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Circlip

420445302

$4.12

21

Not Available As Spare Part - Friction Washer

Unavailable

22

O-Ring

420631612

$4.33

23

Distance Ring

420247125

$20.99

24a

INTERMEDIATE GEAR SHAFT ASS'Y - Call your local BRP dealership | Includes 16a to 20

420635673

Unavailable

24b

Needle Pin

420229600

$37.99

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Needle Cage

420432034

$35.99

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Pin

420229540

$20.99

30

Shift Fork

420257332

$124.99

31

Shift Fork

420257342

$104.99

32

Shift Drum

420257329

$179.99

33

Isolating Washer

420627782

$5.50

34

Index Spring

420238290

$11.12

35

Step Ring

420227717

$12.12

36

Index Lever Kit

703500254

$52.99

37

Torx Screw M6 X 16

420241529

$2.11

38

Shift Shaft Ass'y

420620136

$98.99

39

Parking Lock Lever

420257316

$58.99

40

Torx Flange Screw M8 X 25

420440372

$4.12

41

Bearing Cover

420610243

$58.99

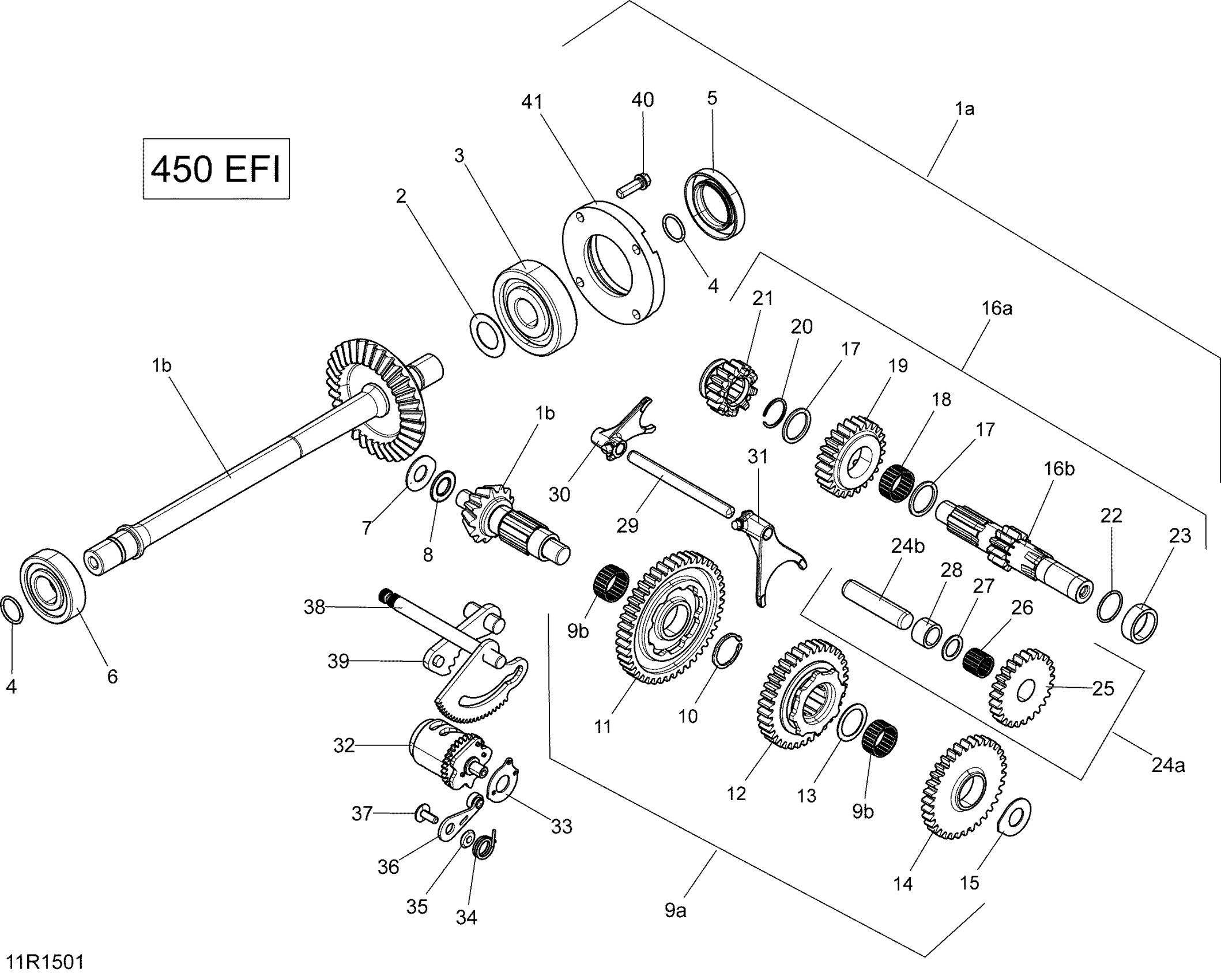

Can-Am Outlander L 450 EFI, 2015 05- Gear Shift _11R1501 Diagram

DRIVE ASS'Y - Call your local BRP dealership | Includes 1 to 24

Bevel Gear Ass’y

Washer Thrust Set

Ball Bearing 6405

O-Ring

Oil Seal

Ball Bearing

Thrust Washer Set, MAG Side

Axial Needle Bearing

Gear Wheel Set | 400HO, Includes 2a to 7

Needle Bearing

Retaining Ring

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Thrust Washer Set, CVT Side

Countershaft Ass'y, 11 Teeth | Includes 10 to 18

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Needle Bearing

Not Available As Spare Part - Friction Washer

Circlip

Not Available As Spare Part - Friction Washer

O-Ring

Distance Ring

INTERMEDIATE GEAR SHAFT ASS'Y - Call your local BRP dealership | Includes 16a to 20

Needle Pin

Not Available As Spare Part - Friction Washer

Needle Cage

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Pin

Shift Fork

Shift Fork

Shift Drum

Isolating Washer

Index Spring

Step Ring

Index Lever Kit

Torx Screw M6 X 16

Shift Shaft Ass'y

Parking Lock Lever

Torx Flange Screw M8 X 25

Bearing Cover
