Description

Price

1

Frame Front

S50100RCA000

Unavailable

2

Tank Cover Bracket

S50171RCA000

$18.49

3

Tank Bracket

S50172RCA000

$20.99

4

RH Engine Bracket

S50350RCA000

$18.55

5

LH Engine Bracket

S50360RCA000

$17.05

6

Front Fender Support

S50510RCA000

$98.99

7

SHIFT GEAR CONTROL UNIT - Call your local BRP dealership

S3576ARCA000

Unavailable

8

RH Front Fender Support

S50520RCA000

Unavailable

9

Rubber Washer

S80103X01000

$4.14

10

Fender Collar

S80104X01000

$4.29

11

ELEC.RELAY ASSY - Call your local BRP dealership

S3850AHLA000

Unavailable

12

Hazard Control Unit Ass'y

S3872ARB1000

Unavailable

13

LH Front Fender Support

S50522RCA000

Unavailable

14

Bolt M12 X 162

S90101RCA000

$5.90

15

Bolt M12 X 98

S90102RCA000

$4.55

16

Self Lock Nut M12

S90306M9Q000

$2.30

17

Flanged Nut 6 mm

S9405006070

$0.46

18

Flanged Bolt M6 X 12

S958010601207

$0.42

19

Flanged Bolt M10 X 16

S958011001607

$0.77

20

Flanged Bolt M6 X 12

S960010601207

$0.42

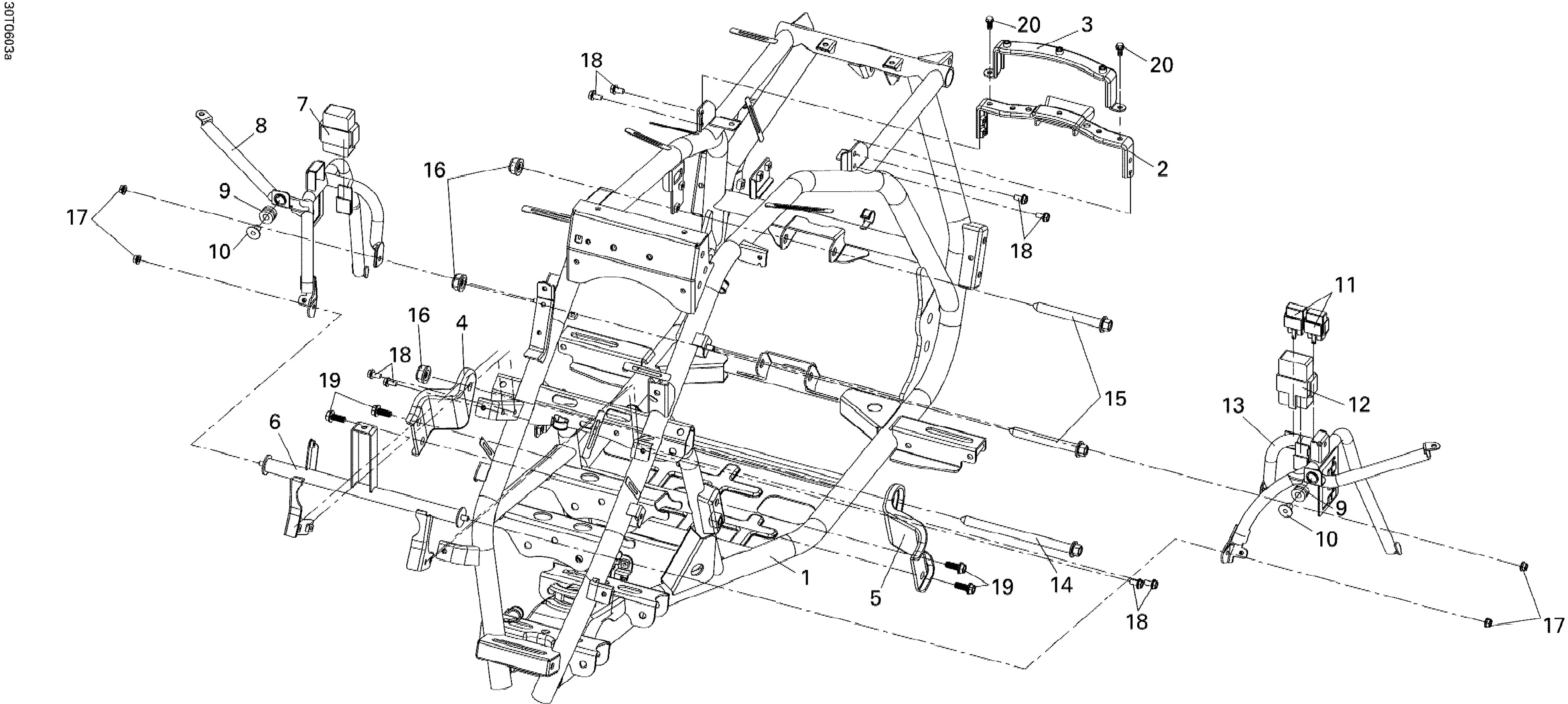

Can-Am DS 250, CE, 2006 09- Frame, System Diagram

Frame Front

Tank Cover Bracket

Tank Bracket

RH Engine Bracket

LH Engine Bracket

Front Fender Support

SHIFT GEAR CONTROL UNIT - Call your local BRP dealership

RH Front Fender Support

Rubber Washer

Fender Collar

ELEC.RELAY ASSY - Call your local BRP dealership

Hazard Control Unit Ass'y

LH Front Fender Support

Bolt M12 X 162

Bolt M12 X 98

Self Lock Nut M12

Flanged Nut 6 mm

Flanged Bolt M6 X 12

Flanged Bolt M10 X 16

Flanged Bolt M6 X 12
