Description

Price

1

Oil Pressure Switch

420256915

$40.99

2

Crush Washer

420552280

$3.70

3

Drain Plug M18 X 1.5

420840278

$23.99

4

Oil Sieve Cover

420211944

$54.99

5

Rubber Ring

420650560

$16.86

6

Oil Collector

420256650

$50.99

7

O-Ring

420650697

$11.05

8

Oil Sieve

420256576

$19.49

9

Torx Flange Screw M6 X 20

420440207

$3.06

10

Oil Dipstick

420256800

$17.05

11

O-Ring

420631640

$2.11

12

Location Pin 10 M6x50

420229302

$3.17

13

Idle Gear, 42 Teeth

420635660

$20.49

14a

Oil Pump Ass’y | Includes 17 to 24

420296507

$284.99

14b

Oil Pump Housing

420610221

$96.49

15

Piston Valve

420256922

$12.70

16

Compression Spring

420238220

$8.09

17

Plug Screw M16

420641167

$19.49

18

Oil Pump Shaft

420220814

$132.49

19

Oil Pump Outer Rotor

420256935

$69.99

20

Needle Pin

420232431

$4.39

21

Oil Pump Cover

420610570

$71.99

22

Oil Pump Gear, 32 Teeth

420635220

$20.99

23

Torx Flange Screw M6 X 45

420440324

$0.98

24

O-ring

420250290

$8.85

25

Oil Filter

420256188

$13.77

26

O-Ring

420230923

$3.17

27

Oil Filter cover

420612135

$11.63

28

Torx Flange Screw M6 X 25

420440234

$3.06

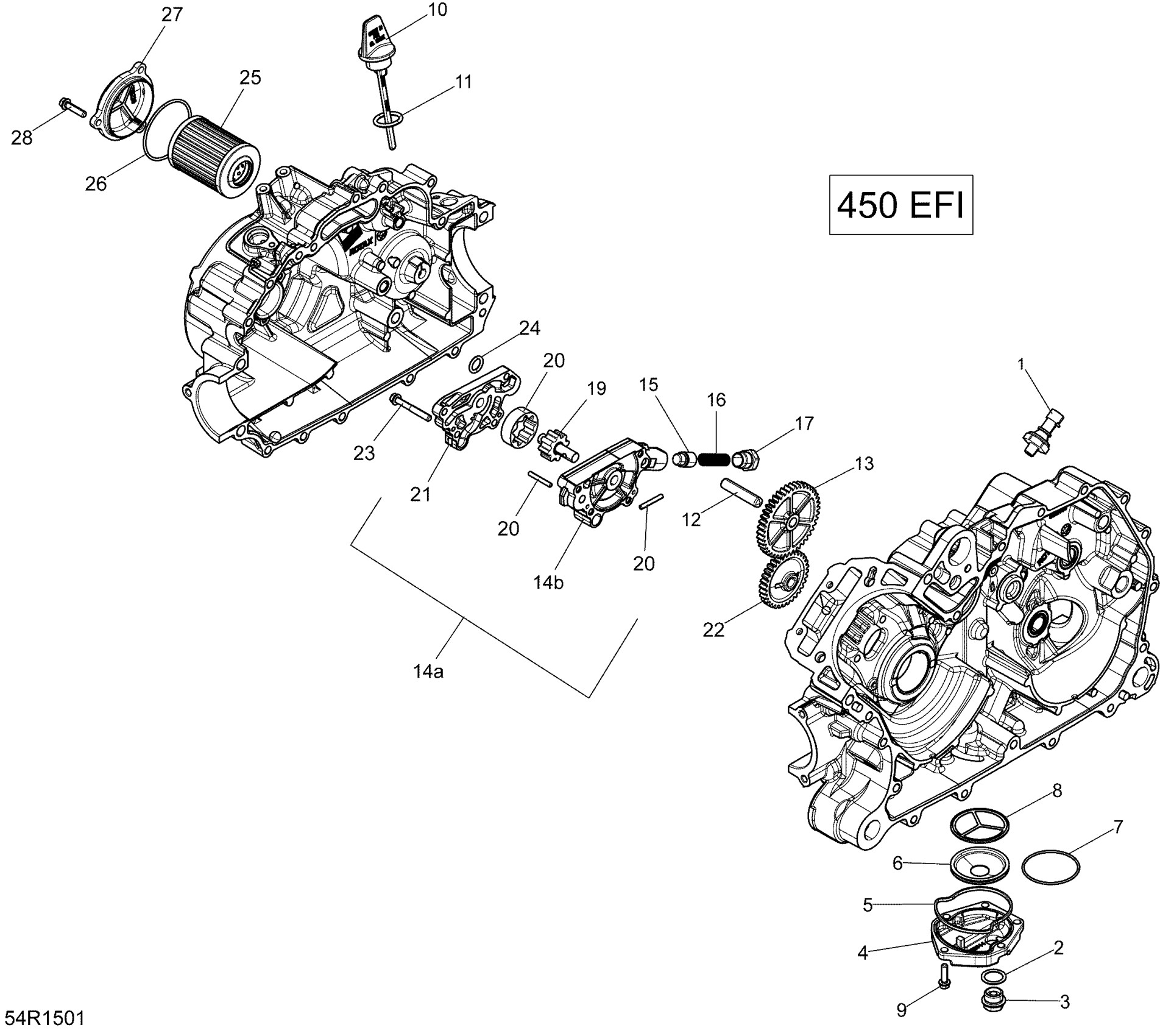

Can-Am Outlander L 450 EFI, 2015 01- Engine Lubrication _54R1501 Diagram

Oil Pressure Switch

Crush Washer

Drain Plug M18 X 1.5

Oil Sieve Cover

Rubber Ring

Oil Collector

O-Ring

Oil Sieve

Torx Flange Screw M6 X 20

Oil Dipstick

O-Ring

Location Pin 10 M6x50

Idle Gear, 42 Teeth

Oil Pump Ass’y | Includes 17 to 24

Oil Pump Housing

Piston Valve

Compression Spring

Plug Screw M16

Oil Pump Shaft

Oil Pump Outer Rotor

Needle Pin

Oil Pump Cover

Oil Pump Gear, 32 Teeth

Torx Flange Screw M6 X 45

O-ring

Oil Filter

O-Ring

Oil Filter cover

Torx Flange Screw M6 X 25
