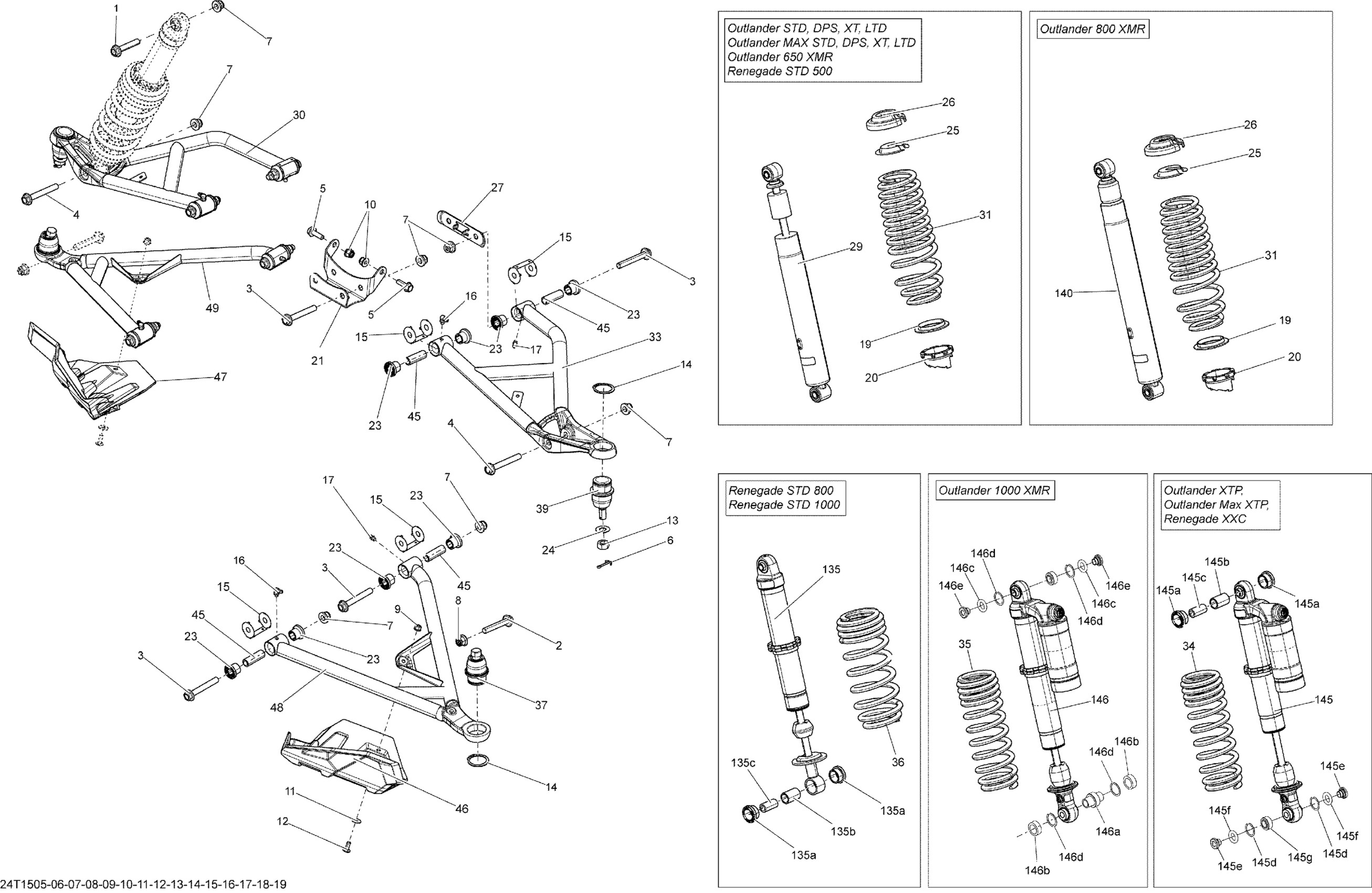

Can-Am Outlander 800R EFI Xmr, 2015 07- Front Suspension _24T1509 Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 55

207605546

$2.11

2

Hex. Flange Screw M10 X 60

207606044

$3.38

3

Hex. Flange Screw M10 X 70

207607046

$2.96

4

Hex. Flange Screw M10 X 75

250001038

$6.77

5

Hex. Flange Screw M8 X 25

207682534

$2.11

6

Cotter Pin

211400017

$0.33

7

Hex. Flange Elastic Nut M10

233201436

$2.11

8

Hex. Flange Elastic Nut M10

233201434

$2.09

9

Hex. Flange Elastic Nut M6

233261494

$1.58

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Stainless Steel Flat Washer

234062670

$2.11

12

Torx Screw M6 X 16

250000755

$0.87

13

Nut M12

250100099

$2.09

14

Circlip

293370035

$2.64

15

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

16

Grease Fitting 90°

293550056

$1.15

17

Grease Fitting

408200700

$3.49

19

Spring Guide

503187500

$10.49

20

Adjustment Cam

505073625

$12.99

21

Upper Front Holder

705203247

$15.99

23

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

24

Hardened Washer

706200281

$2.85

25

Cap

706200785

$4.69

26

Spring Stopper

706200881

$12.99

27

Front Suspension Cross Plate

706200998

$5.09

29

Not Available As Spare Parts

XXX

Unavailable

30

Black RH Upper Arm

706201797

$158.99

31

Yellow Spring

706201769

$116.49

33

Black LH Upper Arm

706201796

$158.99

34

Not Available As Spare Parts

XXX

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

36

Not Available As Spare Parts

XXX

Unavailable

37

Ball Joint

706202045

$35.99

39

Ball Joint

706202044

$35.99

45

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

46

LH Joint Protector

706202808

$9.90

47

RH Joint Protector

706202809

$9.90

48

LH Lower Suspension Arm

706204639

$158.99

49

Black, RH Lower Arm

706202870

$158.99

135

Not Available As Spare Parts

XXX

Unavailable

135a

Not Available As Spare Parts

XXX

Unavailable

135b

Not Available As Spare Parts

XXX

Unavailable

135c

Not Available As Spare Parts

XXX

Unavailable

140

Shock Absorber

706202110

$185.49

145

Not Available As Spare Parts

XXX

Unavailable

145a

Not Available As Spare Parts

XXX

Unavailable

145b

Not Available As Spare Parts

XXX

Unavailable

145c

Not Available As Spare Parts

XXX

Unavailable

145d

Not Available As Spare Parts

XXX

Unavailable

145e

Not Available As Spare Parts

XXX

Unavailable

145f

Not Available As Spare Parts

XXX

Unavailable

145g

Not Available As Spare Parts

XXX

Unavailable

146

Not Available As Spare Parts

XXX

Unavailable

146a

Not Available As Spare Parts

XXX

Unavailable

146b

Not Available As Spare Parts

XXX

Unavailable

146c

Not Available As Spare Parts

XXX

Unavailable

146d

Not Available As Spare Parts

XXX

Unavailable

146e

Not Available As Spare Parts

XXX

Unavailable
