Description

Price

1

Socket Head Screw M5 X 25

205052588

$1.90

2

Screw Socket M10 X 25 | Europe

205402556

$3.91

3

Socket Head Screw M5 X 10

205951046

$2.43

5

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

7

Hex. Flange Screw M6 X 25

207562544

$1.69

8

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

9

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

10

Hex. Flange Screw M10 X 25

207602544

$1.69

11

Hex. Flange Screw M6 X 25

207662544

$0.64

12

Lever

707000911

$20.49

12a

Hex. Flange Screw M6 X 35

207663544

$0.90

12b

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Hex. Flange Screw M6 X 50

207665044

$4.12

14

Hex. Flange Screw M8 X 20

207682046

$1.90

15

Carriage Bolt M8 X 50 | DS 650 X

207785044

$7.41

16

Hex. Flange Screw M6 X 12

210261250

$1.90

17

Hex. Flange Screw M10 X 125

230602546

$7.41

18

Hex. Jam Nut M8

232180600

$0.67

19

Hex. Elastic Stop Nut M8

232581414

$0.56

20

Hex. Flange Elastic Nut M10

233201436

$2.11

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

22

Hex. Flange Elastic Nut M8

233281414

$1.47

23

Hex. Elastic Flange Nut M8

233281416

$1.48

25

External Serrated Lock Washer 6 mm

234461608

$1.15

26

Tuflok Plastic Rivet

293150230

$1.47

27

Polyurethane Hose 10000Mm Long

219704410

$56.99

28

Torx Screw K50 X 16

250000720

$1.69

30

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

31

Tuflok Plastic Rivet

293150230

$1.47

33

Norma Clamp

293650091

$11.12

34

Vibration Damper

707001169

$42.99

35

Hex. Nut M8, LH Threads

250100144

$2.00

37

Lever Trim

707003211

$8.49

38

Not Available As Spare Parts

XXX

Unavailable

39

Polyurethane Hose 10000Mm Long

219704410

$56.99

40

Norma Gear Clamp

293650118

$13.16

41

Upper Engine Bracket

707001256

$13.49

43

Clamp, Oetiker

293650195

$1.09

44a

Hex. Flange Screw M6 X 20

207662044

$2.00

44b

Panel Nut M6 X 1.0

250100198

$2.11

46

Welded Support

707001498

$89.99

47

Tie-Rap 173 mm

293750009

$1.04

54

Bushing

293900019

$7.73

55

Washer | DS 650 X

391301600

$0.48

56

Tie-Rap 180 mm

414115200

$0.11

74

Washer

506151252

$3.17

77

Air Outlet

706600019

$37.99

78a

Air Outlet

707001496

$81.99

78b

Air Outlet

707001497

$43.99

79

Cover OPS

707000410

$13.24

80

Cable Guide

707000434

$11.60

81

RH Ball Joint

707001959

$36.99

83

Spring

707000577

$10.99

84

Throttle Handle | 4X4

707000595

$214.99

85

Not Available As Spare Parts

XXX

Unavailable

96

Engine Support

707003319

$10.99

100

Shift Arm | Except Europe

707000840

$16.87

103

Bushing

293900106

$4.55

106

Rubber Isolator

707000949

$11.49

107

Throttle Cable

707000955

$13.24

108

Ball Joint Ass'y | Includes 55 to 56

707000966

$36.99

110

Lever Support

707003054

$6.67

111

Upper Cable Support

707001955

$10.49

112

SPEED LIMITER - Call your local BRP dealership | Europe

707000994

Unavailable

113

Shift Arm | Europe

707001003

$18.55

117

Not Available As Spare Parts

XXX

Unavailable

119

Not Available As Spare Parts

XXX

Unavailable

120

Flexibale Adaptor

707002585

$10.99

121

Shifter Rod

707002085

$33.99

122

CVT Air Inlet

707001087

$43.99

125

Deflector

707001129

$20.99

126

Filter CVT

707001130

Unavailable

127

Welded Support

707001498

$89.99

129

CVT Air Outlet Adaptor

707001168

$15.99

130

CVT Filter Base

707001171

$8.59

131

Plug

707001185

$1.15

134

LH Rear Engine Bracket

707001193

$16.99

135

RH Rear Engine Bracket

707001194

$16.99

136

CVT Filter Support

707001203

$65.99

137

PROTECTOR CONNECTOR - Call your local BRP dealership

707001204

Unavailable

138

Heat Shield

707001206

$10.49

139

Heat Shield

707001205

$10.49

141

Not Available As Spare Parts

XXX

Unavailable

142

Tube

707001263

$9.79

143

CVT Air Inlet

707001301

$53.99

144

CVT Air Inlet

707001302

$53.99

147

Retainer Clip

707800506

$12.63

148

Insulator Pad

710000073

$11.12

149

Tie-Rap Clip

710002896

$4.39

150

Long Block

420081022

$3,887.99

151

Air Outlet Support

707001262

$9.89

152

Flat Washer 6 mm

234062410

$0.77

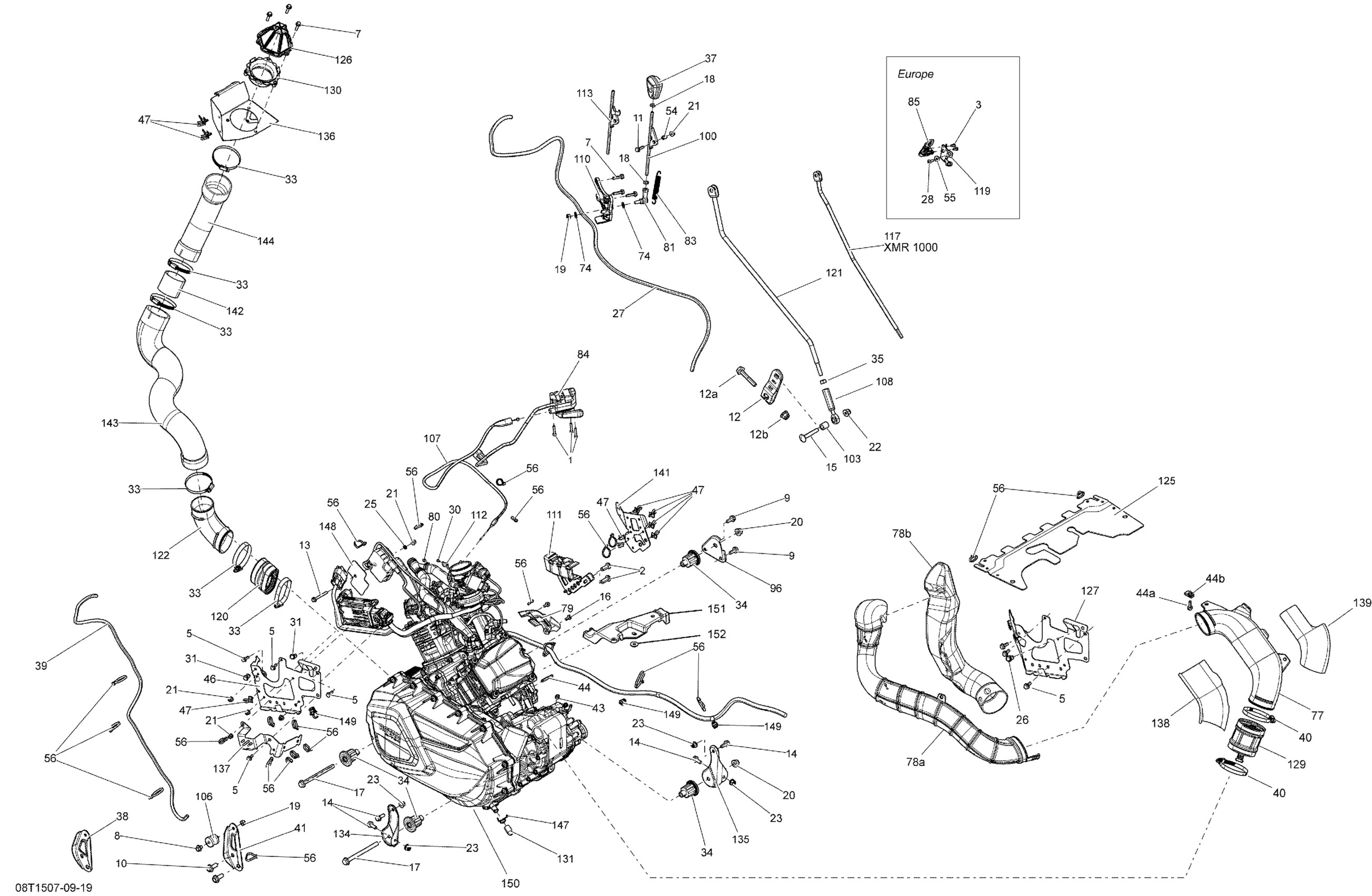

Can-Am Outlander 800R EFI Xmr, 2015 01- Engine And Engine Support _08T1509 Diagram
