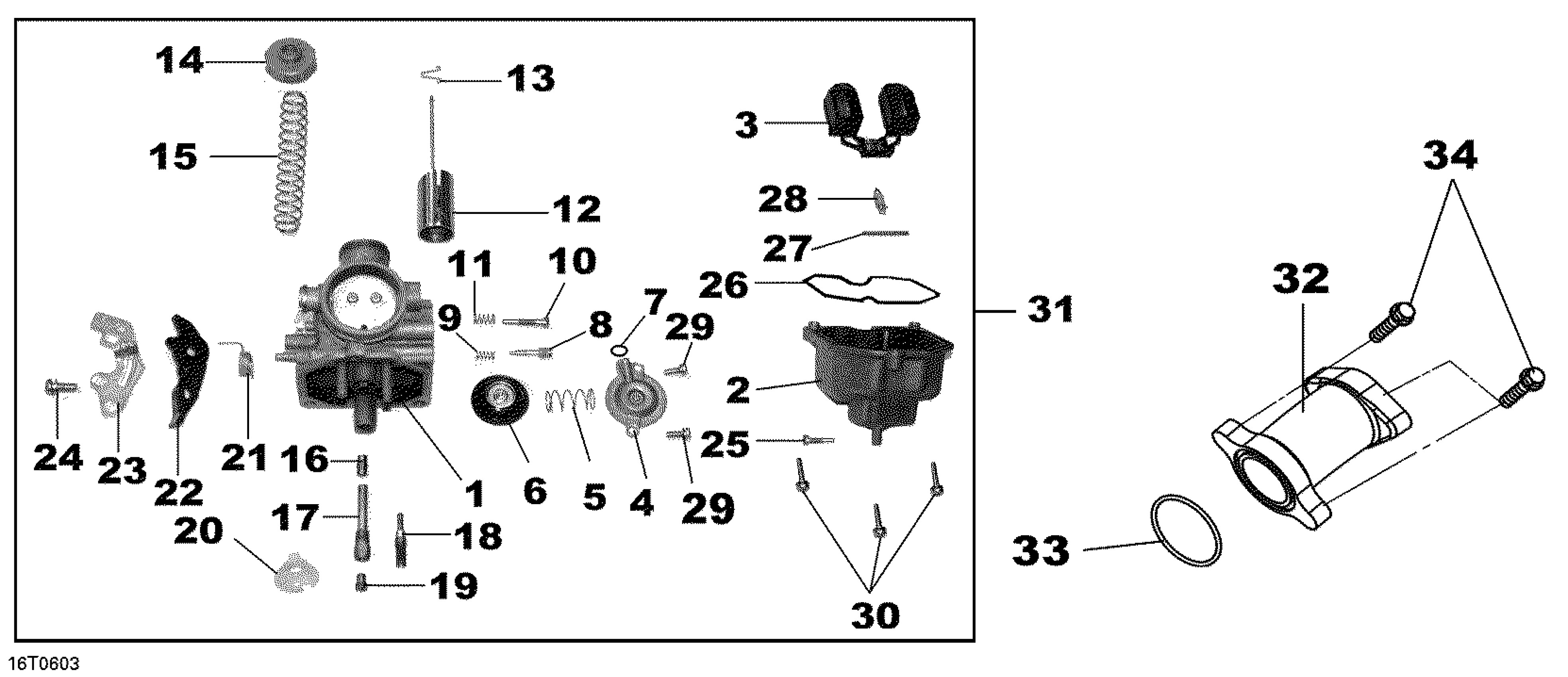

Can-Am DS 250, CE, 2006 02- Carburetor Diagram

#

Description
Price

1

Not Available As Spare Parts

NASP/NDPR

Unavailable

2

Not Available As Spare Parts

NASP/NDPR

Unavailable

3

Not Available As Spare Parts

NASP/NDPR

Unavailable

4

Not Available As Spare Parts

NASP/NDPR

Unavailable

5

Not Available As Spare Parts

NASP/NDPR

Unavailable

6

Diaphragm

S120A106H9900

Unavailable

7

0-ring

SW935330000

Unavailable

8

Screw

S1014240H9900

Unavailable

9

CARBURATOR REPAIR KIT - Call your local BRP dealership

S1300KG8H9010TFB-2

Unavailable

10

Screw

SW957601000

Unavailable

11

Spring

S1300KG8H0010

Unavailable

12

Throttle Valve

SN50272C00

Unavailable

13

Clip

SW957413000

Unavailable

14

Cover

S103J061H9901

Unavailable

15

Spring

S1300185H9920

Unavailable

16

Jet Needle

S101043FH9900

$21.99

17

Needle Jet Holder

SN41315A00

Unavailable

18

Jet

SD1424KAG0100

Unavailable

19

JET - Call your local BRP dealership

S991013931050

Unavailable

20

Jet Holder

S1012382H0140

Unavailable

21

Spring

S1305491H9901

Unavailable

22

LEVER CHOKE - Call your local BRP dealership

S1113HB7H6710

Unavailable

23

Throttle Cable Support

SD1141A630100

Unavailable

24

Not Available As Spare Parts

NASP/NDPR

Unavailable

25

Drain Screw

S16162KGS9010M1

Unavailable

26

Gasket

S16163KCS9200

Unavailable

27

Pin

SW952525250

Unavailable

28

NEEDLE VALVE - Call your local BRP dealership

S16155ZG8L100

Unavailable

29

Not Available As Spare Parts

NASP/NDPR

Unavailable

30

Not Available As Spare Parts

NASP/NDPR

Unavailable

31

Carburetor Ass'y

S16100RB1000

Unavailable

32

Inner Pipe

S1711ARCA000

$34.99

33

O-ring

S91308HMA000

$8.96

34

Flanged Bolt M6 X 22

S960010602500

$1.04
