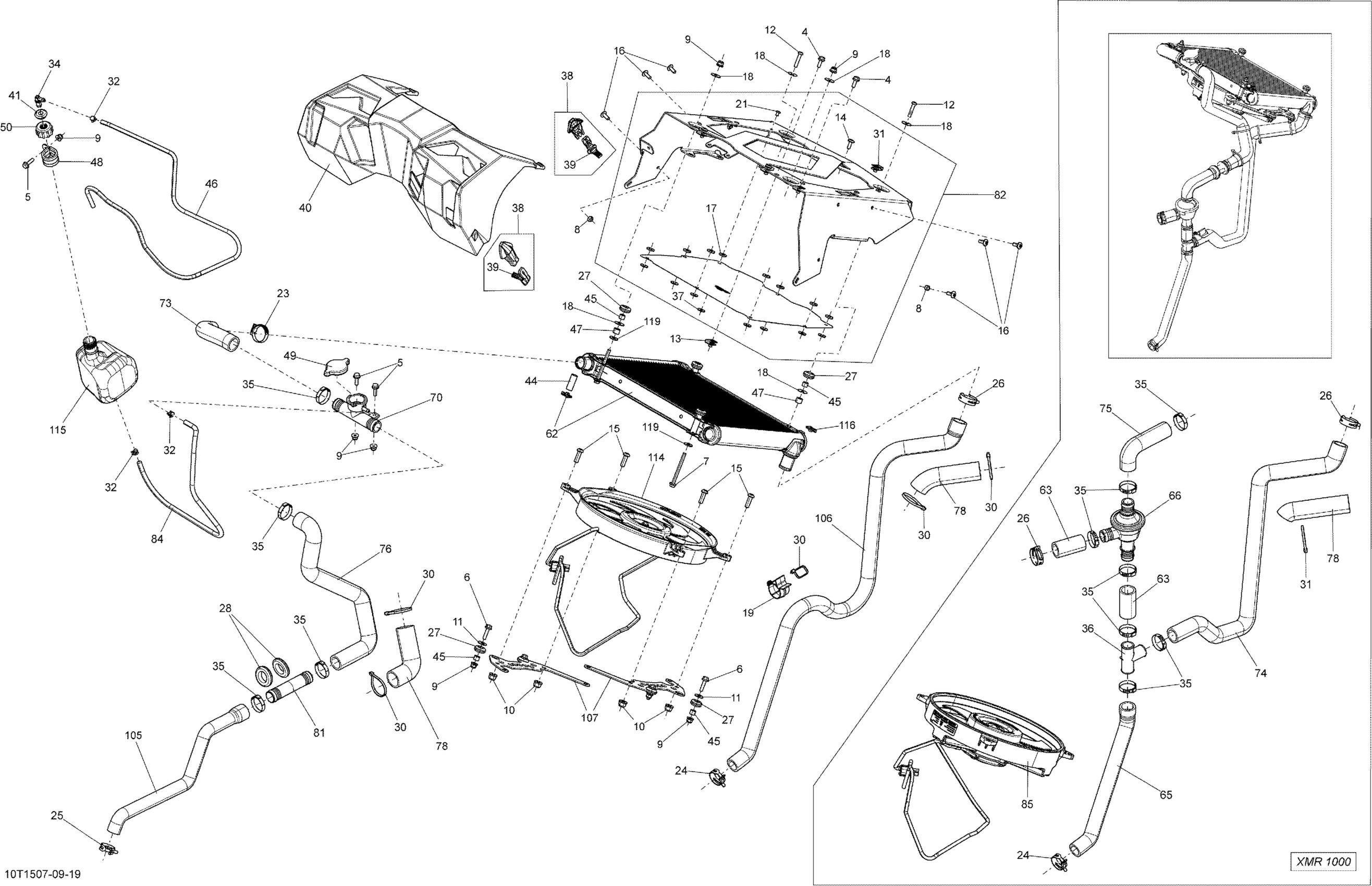

Can-Am Outlander 650 EFI Xmr, 2015 01- Cooling System _10T1507 Diagram

#

Description
Price

4

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

5

Hex. Flange Screw M6 X 20

207662034

$2.11

6

Hex. Flange Screw M6 X 25

207662544

$0.64

7

Hex. Flange Screw M6 X 70

207667044

$0.85

8

Elastic Stop Nut M6

232561434

$1.99

9

Flange Elastic Nut M6

233261434

$4.44

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Flat Washer M6, Stainless

234062600

$0.77

12

Torx Screw M6 X 30

235563054

$4.44

13

Panel Nut M6 X 1.0

250100198

$2.11

14

Torx Head Screw M6 X 16

250000717

$2.11

15

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

16

Torx Head Screw M6 X 16

250000717

$2.11

17

Rubber Washer 5 mm

250200024

$2.19

18

Flat Washer

250200040

$1.90

19

Retainer

275500590

$9.69

21

Rivet 3/16"

293150102

$0.70

23

Norma Gear Clamp

293650098

$4.44

24

Norma Spring Clamp

293650108

$4.12

25

Norma Spring Clamp

293650109

$4.12

26

Norma Spring Clamp

293650166

$4.44

27

Grommet

293720062

$5.39

28

Grommet

293720096

$11.49

30

Tie-Rap 180 mm

414115200

$0.11

31

Panel Nut M6 X 1.0

250100198

$2.11

32

Spring Clamp

414554800

$0.88

34

Male Connector

414580700

$4.12

35

Gear Clamp

509000162

$7.29

36

Not Available As Spare Parts

XXX

Unavailable

37

Washer

517124300

$0.19

38

Black Latch Kit | Includes 390 to 400

860200239

$16.88

39

Panel Latch

517303981

$12.99

40

Protection Cover Kit

703100399

$88.99

41

Grommet

705003264

$4.09

44

Bushing

705202499

$6.67

45

Spacer

707000058

$13.49

46

Polyurethane Hose 10000Mm Long

219704410

$56.99

47

Bushing

708001129

$11.99

48

Hose Anchor

709200036

$11.12

49

Radiator Pressure Cap

709200207

$25.49

50

Cap

709200586

$11.11

62

Radiator

709200286

$476.99

63

Not Available As Spare Parts

XXX

Unavailable

65

Not Available As Spare Parts

XXX

Unavailable

66

Not Available As Spare Parts

XXX

Unavailable

70

Filler Neck

709200422

$18.49

73

Hose

709200891

$14.31

74

Not Available As Spare Parts

XXX

Unavailable

75

Not Available As Spare Parts

XXX

Unavailable

76

Outlet Hose

709200429

$34.99

78

Tubing 35 MM 1000MM Long

219704428

$10.99

81

Nipple Tube 1"

709200448

$20.99

82

ASS. SUPPORT - Call your local BRP dealership | Includes 30a to 30f

715002316

Unavailable

84

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

85

Not Available As Spare Parts

XXX

Unavailable

105

Outlet Hose

709200484

$34.99

106

OUTLET HOSE ENGINE SIDE - Call your local BRP dealership

709200485

Unavailable

107

Support

709200495

$27.49

114

Fan Ass'y

709200567

$284.99

115

Coolant Tank Ass'y

709200624

$27.99

116

CLIP NUT M6 X 1 - Call your local BRP dealership

715900148

Unavailable

119

Flat Washer M6, Stainless

234062600

$0.77
