Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Front Coupling Device

705204452

Unavailable

3

Pin

605456511

Unavailable

4

Pin

605456518

Unavailable

5

Carriage Bolt, M8 X 20

207782044

$1.90

6

Hex. Flange Elastic Nut M8

233281414

$1.47

7

Coupling Ball Ass'y | Includes 7 To 12

605256548

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Hitch Pin

705204490

$52.99

12

Hitch Decal

605456545

Unavailable

13

Trailer Plug Ass'y | Includes 13 To 19

860200927

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Plug Support Plate

605356523

Unavailable

16

Socket Head Screw M5 X 35

205053588

$1.90

17

Hex. Flange Elastic Nut M5

233251414

$1.04

18

Hex. Flange Screw M6 X 16

207661644

$0.74

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Seat Ass'y | Model-T3

708002208

Unavailable

21

Front Bottom Support | Model-T3

605456520

Unavailable

22

Support Central Cushion

510005986

Unavailable

23

Support Rear Cushion

510005988

Unavailable

24

RUBBER DAMPER - Call your local BRP dealership | Model-T3

605456546

Unavailable

25

Rivet | Model-T3

293150067

$2.89

26

Latch

708000909

$6.29

27

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

28

Support Rear Seat

705204621

Unavailable

29

Bumper Rubber

708000760

$10.49

30

Seat Rear Raiser

705204655

Unavailable

31

Decal

605456593

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Backrest | Model-T3

708001794

Unavailable

34

Torx Truss Screw M6 x 12 | Model-T3

250000675

$0.98

35

Backrest Weld

708001811

Unavailable

36

Backrest Runners

708001815

Unavailable

37

Lock

708001820

Unavailable

38

Socket Screw M5 X .80 X 16

250000652

$1.01

39

Serrated Lock Washer

20018

Unavailable

40

Rubber Washer 5 mm

250200024

$2.19

41

Washer M5

250200025

$0.74

42

Elastic Flange Nut M5

233251494

$2.11

43

Decal

605456560

Unavailable

44

P-Decal, T3 | Package-XTT3

605356244

Unavailable

45

Cabin Decal, T3 | Package-XTT3

605456594

Unavailable

46

Warning Decal

605356505

Unavailable

47

LABEL-WARNING TIRE PRESSURE - Call your local BRP dealership

704905689

Unavailable

48

ECU Module

420266868

$1,449.99

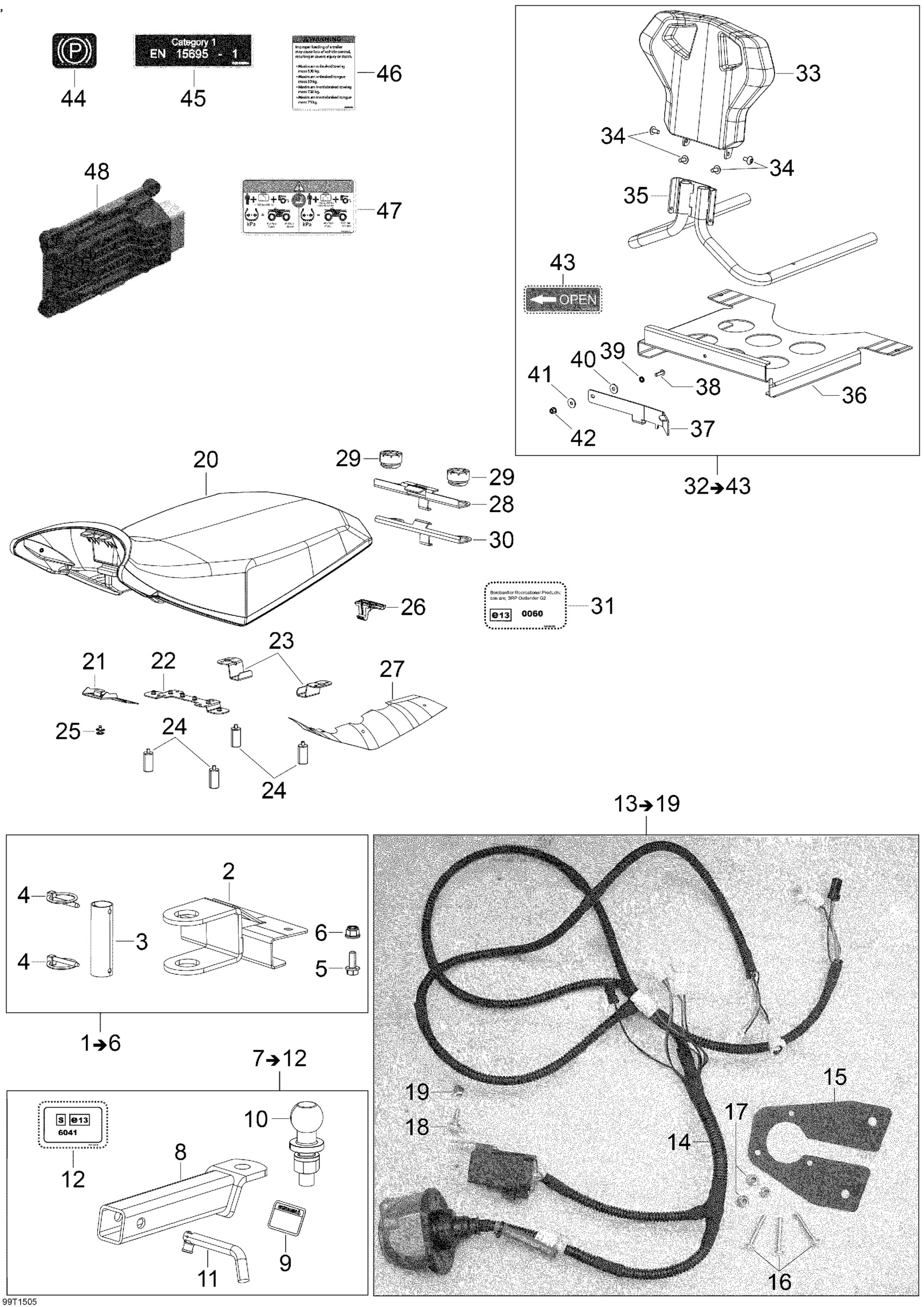

Can-Am Outlander 500 EFI, 2015 11- T3 Parts _99T1505 Diagram

Not Available As Spare Part - Friction Washer

Front Coupling Device

Pin

Pin

Carriage Bolt, M8 X 20

Hex. Flange Elastic Nut M8

Coupling Ball Ass'y | Includes 7 To 12

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Hitch Pin

Hitch Decal

Trailer Plug Ass'y | Includes 13 To 19

Not Available As Spare Part - Friction Washer

Plug Support Plate

Socket Head Screw M5 X 35

Hex. Flange Elastic Nut M5

Hex. Flange Screw M6 X 16

Hex. Flange Elastic Nut M6 x 1.0

Seat Ass'y | Model-T3

Front Bottom Support | Model-T3

Support Central Cushion

Support Rear Cushion

RUBBER DAMPER - Call your local BRP dealership | Model-T3

Rivet | Model-T3

Latch

HEAT SHIELD - Call your local BRP dealership

Support Rear Seat

Bumper Rubber

Seat Rear Raiser

Decal

Not Available As Spare Part - Friction Washer

Backrest | Model-T3

Torx Truss Screw M6 x 12 | Model-T3

Backrest Weld

Backrest Runners

Lock

Socket Screw M5 X .80 X 16

Serrated Lock Washer

Rubber Washer 5 mm

Washer M5

Elastic Flange Nut M5

Decal

P-Decal, T3 | Package-XTT3

Cabin Decal, T3 | Package-XTT3

Warning Decal

LABEL-WARNING TIRE PRESSURE - Call your local BRP dealership

ECU Module
