Description

Price

100a

Ext Compressor Support

706005318

$4.19

100b

Compressor

706005694

$459.99

100d

Hose 4.32Mm 3000Mm Long

219704415

$55.99

100f

Compressor Isolator

706000631

$13.99

100g

Circlip

293370123

$2.69

100h

Hex. Flange Elastic Nut M6

233261494

$1.58

100j

Hex. Flange Screw M6 X 25

207662554

$1.48

100k

Hex. Flange Screw M6 X 25

207662554

$1.48

100m

Air Damper Kit

219800175

$291.49

100m1

Air Damper Kit

219800175

$291.49

100m2

Elbow 90°

706001018

$28.99

100m3

Jam Nut M20

250100119

$4.13

100n

Shock Absorber Anchorage

706005195

$25.99

100p

Hex. Flange Screw M6 X 16

210261650

$1.67

100s

Hex. Flange Screw M8 X 50

207685044

$1.69

100t

Pressure Manifold Ass'y | Includes 100t to 100t3

706006098

$299.99

100t3

Elbow 90°

706000928

$27.99

100u

Socket Head Screw M4 X 12

205041254

$2.11

100v

Tie Rod

706202505

$23.99

100w

Suspension Sensor

710004740

$159.99

100x

Hex. Flange Screw M5x10

207551056

$1.99

100y

Torx Screw M6 X 20

250000712

$2.11

100z

Air Valve

706002797

$18.49

100aa

Ckeck Valve

706000831

$38.99

100ab

Elbow 90°

706000928

$27.99

100ac

Pipe Elbow Fitting

293700060

$28.49

100ad

Pneumatic Connector

706004028

$19.49

100af

Hose 4.32Mm 3000Mm Long

219704415

$55.99

100ag

Hose 4.32Mm 3000Mm Long

219704415

$55.99

100ah

Air Filter

706005941

$18.49

100aj

Hose 1/2 ID

706006038

$19.99

100ak

Hose 4.32Mm 3000Mm Long

219704415

$55.99

100am

Hex. Flange Screw M6 X 12

210261250

$1.90

100an

TUBING 6 MM - Call your local BRP dealership

515175442

Unavailable

100ap

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100aq

Trim - 70 mm

219704620

Unavailable

140

Spacer

706000410

$13.99

150

Shock Absorber Shaft

706000409

$49.99

160a

Shock Absorber

706005089

$137.49

160b

Compression Spring

706005088

$89.99

160c

Spring Stopper

503193781

$18.49

160d

Cap

503193782

$10.49

160f

Urethane Cushion

503191609

$18.49

170

Hex.Flange Screw M10 X 150

230605034

$6.77

180

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

1810

Hex. Flange Elastic Nut M10

233201434

$2.09

1820

Spacer

706000410

$13.99

1830

Hex. Flange Screw M10 X 140

230604034

$6.77

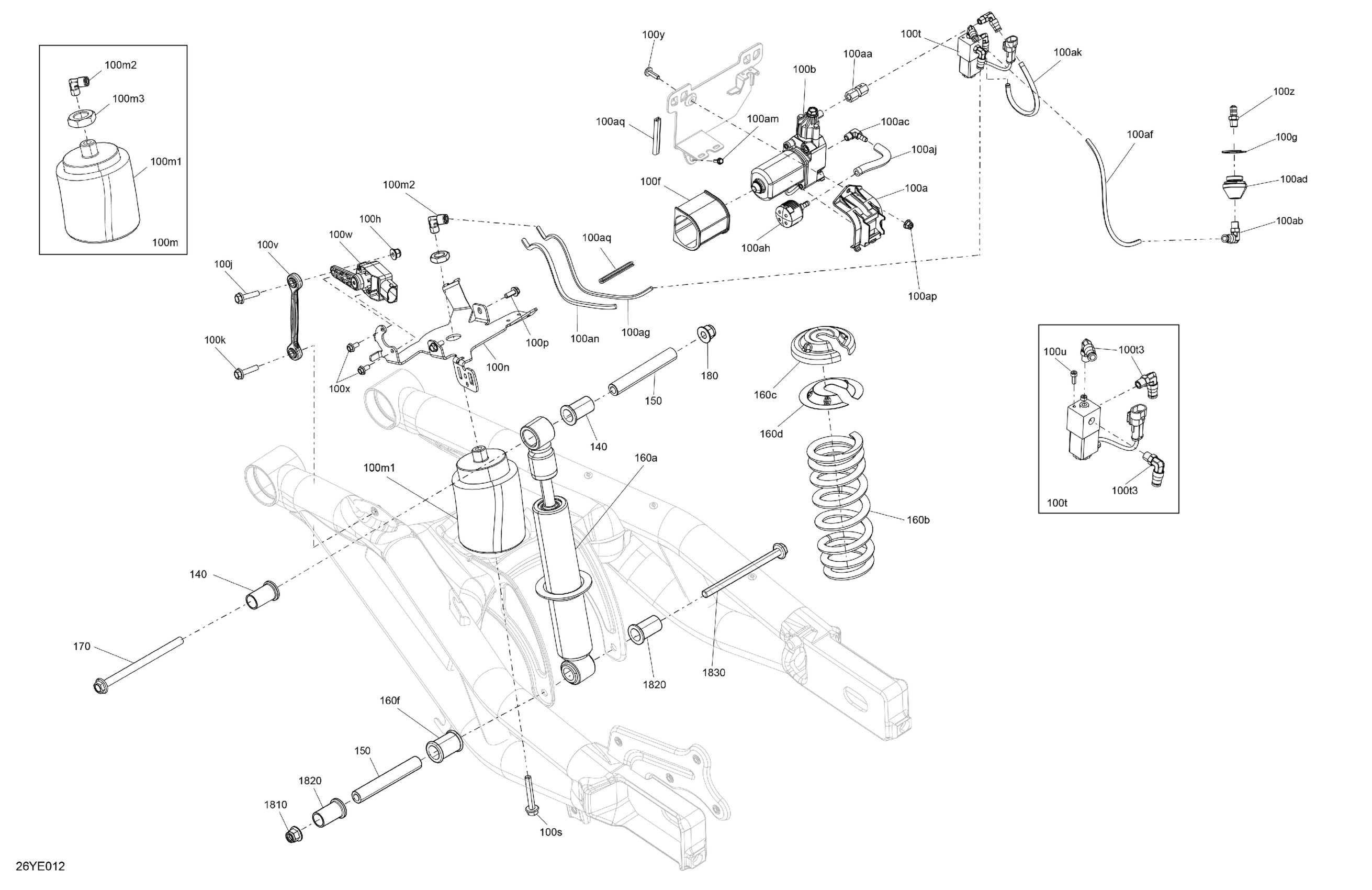

Can-Am Europe - CANYON XT - J2SB - Sterling Silver Satin, 2025 05- Suspension - Rear Shock Diagram

Ext Compressor Support

Compressor

Hose 4.32Mm 3000Mm Long

Compressor Isolator

Circlip

Hex. Flange Elastic Nut M6

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 25

Air Damper Kit

Air Damper Kit

Elbow 90°

Jam Nut M20

Shock Absorber Anchorage

Hex. Flange Screw M6 X 16

Hex. Flange Screw M8 X 50

Pressure Manifold Ass'y | Includes 100t to 100t3

Elbow 90°

Socket Head Screw M4 X 12

Tie Rod

Suspension Sensor

Hex. Flange Screw M5x10

Torx Screw M6 X 20

Air Valve

Ckeck Valve

Elbow 90°

Pipe Elbow Fitting

Pneumatic Connector

Hose 4.32Mm 3000Mm Long

Hose 4.32Mm 3000Mm Long

Air Filter

Hose 1/2 ID

Hose 4.32Mm 3000Mm Long

Hex. Flange Screw M6 X 12

TUBING 6 MM - Call your local BRP dealership

Hex. Flange Elastic Nut M6 x 1.0

Trim - 70 mm

Spacer

Shock Absorber Shaft

Shock Absorber

Compression Spring

Spring Stopper

Cap

Urethane Cushion

Hex.Flange Screw M10 X 150

Hex. Flange Elastic M10 x 1.5

Hex. Flange Elastic Nut M10

Spacer

Hex. Flange Screw M10 X 140
