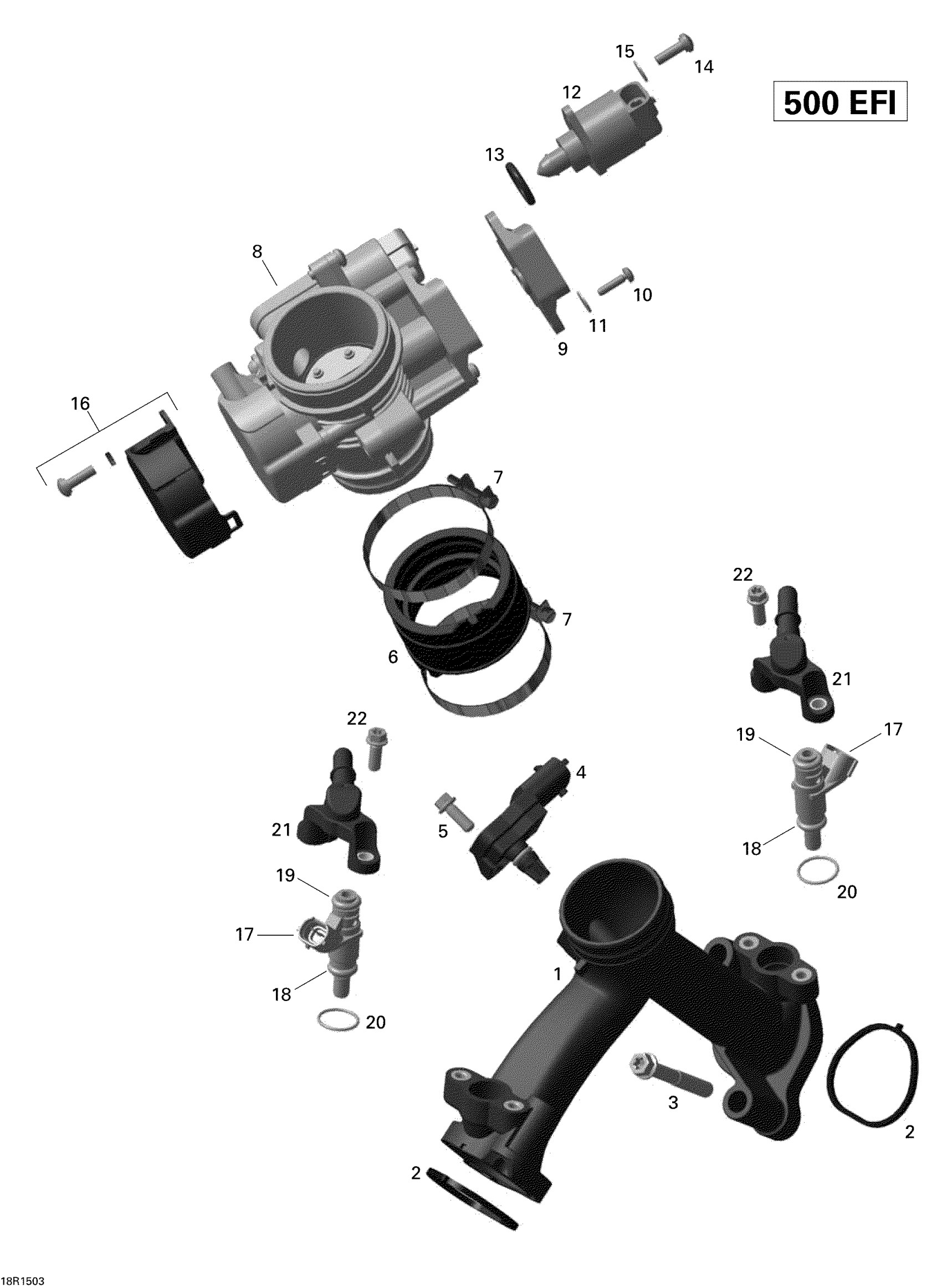

Can-Am Outlander 500 EFI, 2015 02- Air Intake Manifold And Throttle Body _18R1503 Diagram

#

Description
Price

1

Air Intake Manifold

420667581

$139.99

2

Gasket

420630642

$5.39

3

Torx Flange Screw M8 X 55

420641213

$7.41

4

Pressure And Temperature Sensor

707000995

$88.99

5

Torx Flange Screw M6 X 16

420641048

$2.96

6

Intake Adaptor

420267480

$15.89

7

Clamp

420251480

$14.28

8

Throttle Body Ass'y | Includes 8 to 16

420685326

$709.99

9

Position Sensor

420866120

$98.99

10

Phillips Screw M4 X 16

208641660

$0.90

11

Flat Washer 4 mm, Stainless

234042600

$1.15

12

Idle Air Control Valve

420665941

$179.99

13

O-Ring

420631780

$4.44

14

Binding Head Screw M5 X 16

420440911

$14.28

15

Snap Ring

420845710

$4.12

16

Cover Kit

420281540

$20.99

17

Injection Valve Ass'y | Includes 17 to 19

420874840

$174.99

18

O-Ring

420431890

$7.49

19

O-Ring

420631220

$14.28

20

O-Ring

420631296

$0.76

21

Fuel Rail

420874901

$24.49

22

Torx Flange Screw M6 X 16

420641048

$2.96
