Description

Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Not Available As Spare Parts

XXX

Unavailable

3

Hex. Screw M6 X 25

207162544

$1.15

4

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

5

Hex. Flange Screw M6 X 12

207661244

$2.11

6

Not Available As Spare Parts

XXX

Unavailable

7

Not Available As Spare Parts

XXX

Unavailable

8

Hexagonal Head Screw

210262050

$2.11

9

Protector Cap | STD Models

710001829

$9.95

10

Not Available As Spare Parts

XXX

Unavailable

11

Hex. Nut M6

232061414

$0.53

12

Hex. Nut M6

232061600

$1.15

13

Elastic Stop Nut M6

232561414

$0.55

15

Hex. Flange Nut M6

233061414

$1.68

16

Not Available As Spare Parts

XXX

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Protector Cap | STD

710001817

$11.12

19

Lock Washer Helical M6

234161601

$1.15

20

External Serrated Lock Washer 6 mm

234461608

$1.15

21

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

22

Not Available As Spare Parts

XXX

Unavailable

23

Not Available As Spare Parts

XXX

Unavailable

24

Clip

270000141

$11.49

25

Wire Seal

278000216

$3.19

26

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

27

Diagnostic Connector

278002704

$19.49

28

Oetiker Clamp

293650100

$3.38

29

Tie Wrap 368 mm

293750008

$1.04

30

Not Available As Spare Parts

XXX

Unavailable

31

Mount Dart

293730040

$1.04

32

Not Available As Spare Parts

XXX

Unavailable

33

Not Available As Spare Parts

XXX

Unavailable

34

Not Available As Spare Parts

XXX

Unavailable

34

Handle Kit | STD

703500919

$74.99

35

Speedometer Ass'y | Includes 18 to 21

710003100

$539.99

36

Bulb, 12V 35/35W

710000871

$34.99

37

Battery Bolt Kit

250000282

$7.29

38

Retainer Strap

293850097

$11.64

41

Not Available As Spare Parts

XXX

Unavailable

43

Strap Clip

293850030

$11.12

44

Pop Rivet 3/16"

390402300

$0.75

46

Pop Rivet 3/16"

390402400

$0.35

50

Pop Rivet 3/16"

390406500

$0.88

51

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

52

Not Available As Spare Parts

XXX

Unavailable

53

Tie-Rap 180 mm

414115200

$0.11

64

Clip

414227300

$1.67

65

Housing Support

515175283

$9.19

66

Male Housing, 3 Circuits

515175494

$16.18

67

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

68a

Not Available As Spare Parts

XXX

Unavailable

68b

Not Available As Spare Parts

XXX

Unavailable

69

Washer

517124300

$0.19

70

BRP Logo13 mm

704904615

$13.49

71

Not Available As Spare Parts

XXX

Unavailable

72

Not Available As Spare Parts

XXX

Unavailable

73

CLAMP - Call your local BRP dealership

705600311

Unavailable

74

INSULATOR PAD - Call your local BRP dealership

710000279

Unavailable

75

Not Available As Spare Parts

XXX

Unavailable

76

Not Available As Spare Parts

XXX

Unavailable

77

Was 710000483 Heat Shrink Tubing

219704447

$78.99

78

Open Barrel | STD Models

710000518

$11.12

79

Protector Cap

710000526

$10.99

80a

Not Available As Spare Parts

XXX

Unavailable

80b

Not Available As Spare Parts

XXX

Unavailable

80c

Not Available As Spare Parts

XXX

Unavailable

81

Black, Electronic Key

710000817

$63.49

84

Ground Cable Ass'y, Battery/Frame | Includes 1 to 4

710000830

$23.49

85

Not Available As Spare Parts

XXX

Unavailable

85

RH Headlamp Ass'y | Includes 20 to 22

710001496

$89.99

87

Not Available As Spare Parts

XXX

Unavailable

87

LH Headlamp Ass'y | Includes 24 to 26

710001497

$89.99

89

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

90

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

92

Not Available As Spare Parts

XXX

Unavailable

93

Clip

710000992

$4.29

93

Not Available As Spare Parts

XXX

Unavailable

94

Not Available As Spare Parts

XXX

Unavailable

95

Not Available As Spare Parts

XXX

Unavailable

97

Not Available As Spare Parts

XXX

Unavailable

99

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

100

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$74.99

100

Not Available As Spare Parts

XXX

Unavailable

102

Not Available As Spare Parts

XXX

Unavailable

103

DC Outlet

710001248

$37.99

104

SOLENOID SUPPORT - Call your local BRP dealership

710001260

Unavailable

105

RECTIFIER SUPPORT - Call your local BRP dealership

710001262

Unavailable

106

Not Available As Spare Parts

XXX

Unavailable

107

Starter Relay

710007777

$48.49

108

Ground Cable | Includes 4 to 6

710001443

Unavailable

110

Not Available As Spare Parts

XXX

Unavailable

115

POSITIVE CABLE ASS'Y - Call your local BRP dealership | Includes 27 to 31

710001820

Unavailable

117

Positive Cable Ass'y | STD, Includes 22 to 28

710001822

$30.99

118

Not Available As Spare Parts

XXX

Unavailable

120

Not Available As Spare Parts

XXX

Unavailable

120

Main Harness Ass'y | Includes 1 to 1028

710002113

$999.99

126

FUSE SUPPORT - Call your local BRP dealership

710002176

Unavailable

127

Ignition Switch | Includes 16 to 17

710002324

$79.49

132

Not Available As Spare Parts

XXX

Unavailable

133

Not Available As Spare Parts

XXX

Unavailable

134

Trim Ring

710001416

$23.99

135

Button

710001473

$13.71

136

Bulb

520000758

$9.10

137

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

138

Not Available As Spare Parts

XXX

Unavailable

139

Not Available As Spare Parts

XXX

Unavailable

140

Not Available As Spare Parts

XXX

Unavailable

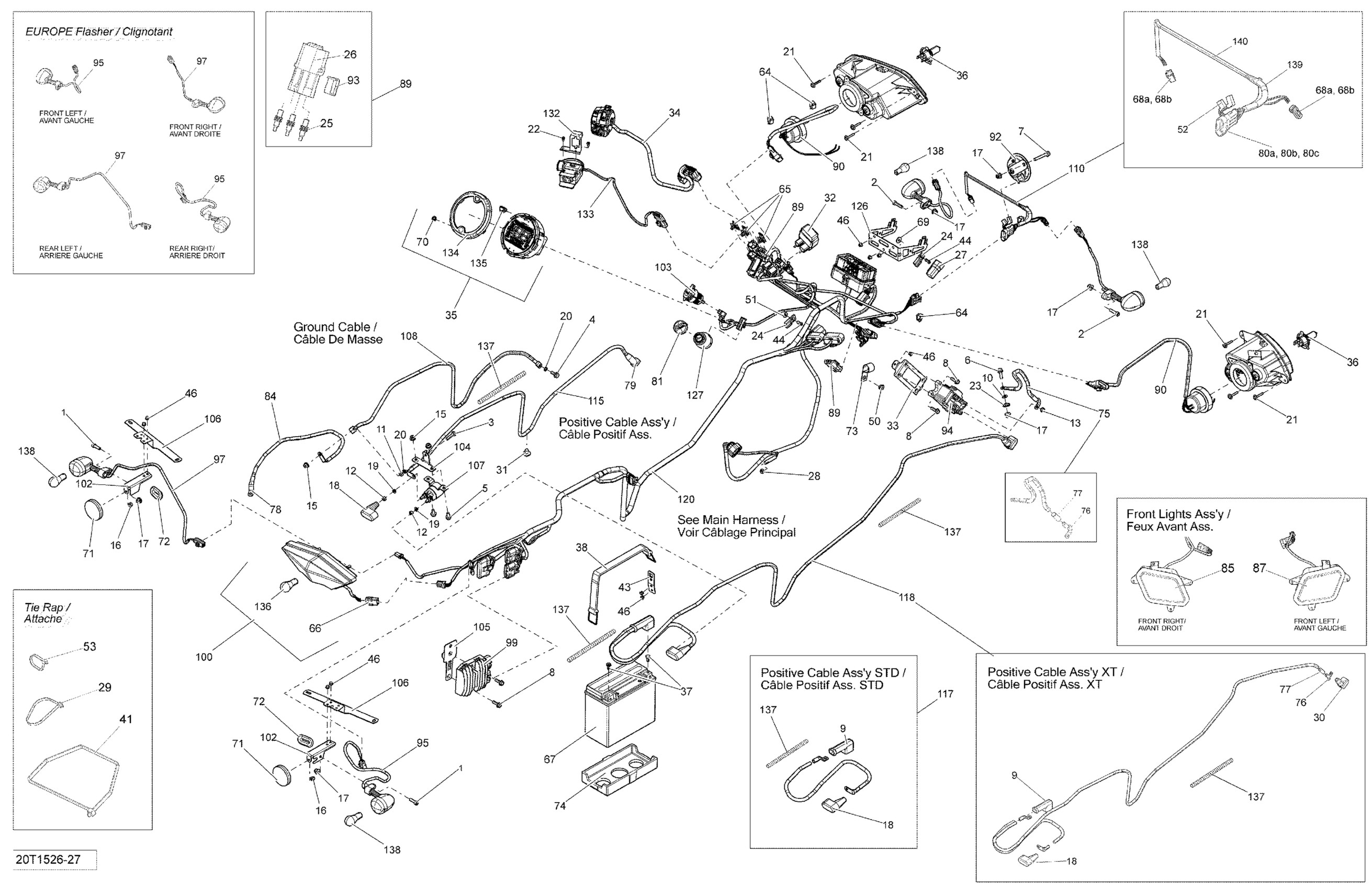

Can-Am Outlander 400 EFI, STD(International only), 2015 10- Electrical System _20T1526 Diagram
