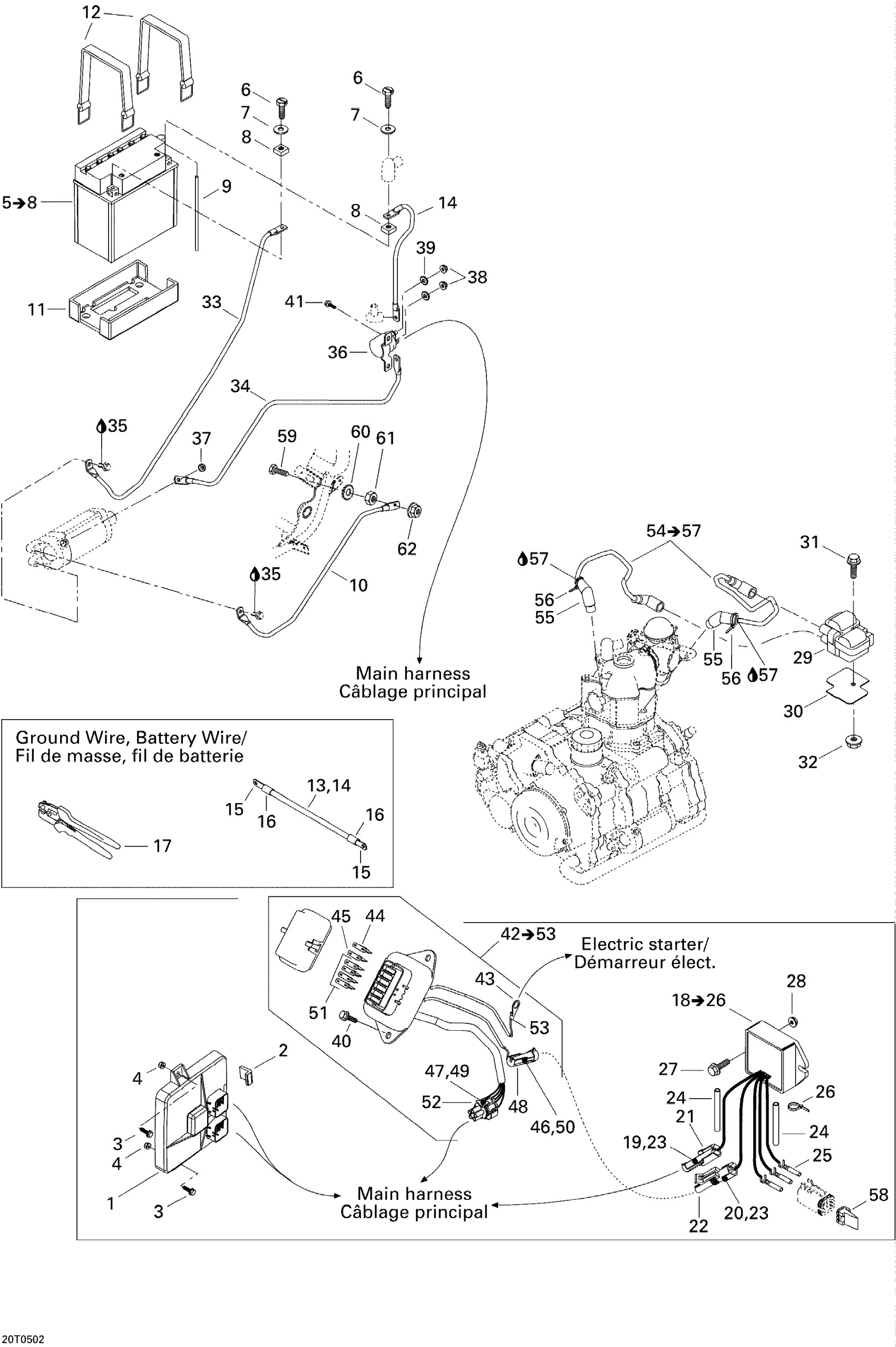

Can-Am Traxter XT, 2005 10- Electrical System Diagram

#

Description
Price

1

Electronique Module

710000588

Unavailable

2

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

3

Hex. Flange Screw M6 X 20

207662044

$2.00

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

5

Battery 19A | Includes 5 to 8

278001756

$153.36

6

Hex. Screw M6 X 16

207161644

$0.74

7

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

8

Hex. Nut M6

232061414

$0.53

9

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

10

Battery Ground Cable

710000022

Unavailable

11

LOWER BATTERY PAD - Call your local BRP dealership

278001976

Unavailable

12

Retainer Strap

293850097

$11.64

13

Ground Cable Battery, no 6, meter)

278001680

Unavailable

14

Cable Battery, no 6, meter)

278001690

Unavailable

15

Terminal 45°, Small Hole

278001682

Unavailable

15

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

15

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

15

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

15

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

15

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

15

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

15

Terminal 30°, 2 Holes

278001776

Unavailable

16

Was 710000483 Heat Shrink Tubing

219704447

$78.99

17

Crimp Plier

529035730

Unavailable

18

VOLT REGULATOR ASS'Y - Call your local BRP dealership | Includes 18 to 26

710000100

Unavailable

19

Male Terminal | XT Models

278000222

$3.19

20

Female Terminal

278000223

$3.19

21

Female Housing, 1 Circuit

278000161

$9.59

22

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

23

Wire Seal

278000218

$4.39

24

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

25

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

26

Tie Wrap 94 mm | 4X4

293750001

$1.03

27

Hex. Flange Screw M6 X 20

207662044

$2.00

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Ignition Coil

278001546

$158.99

30

Insulator Pad

710000073

$11.12

31

Hex. Flange Screw M6 X 50

207665044

$4.12

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

Engine Ground Cable

710000211

Unavailable

34

STARTER POSITIVE CABLE - Call your local BRP dealership

710000136

Unavailable

35

Loctite 243, 10 ml

293800060

$21.49

36

Starter Relay

515176011

$62.49

37

Hex. Elastic Stop Nut M6

232561600

$1.15

38

Hex. Nut M6

232061414

$0.53

39

Lock Washer Helical M6

234161601

$1.15

40

Hex. Forming Screw M6 X 10

210261050

$1.69

41

Hex. Self-threaded Screw 1/4"-20 X 3/4"

250000061

Unavailable

42

FUSE HOLDER ASS'Y - Call your local BRP dealership | Includes 42 to 53

710000579

Unavailable

43

Open Barrel Terminal

278001392

$4.79

44

Fuse, 30 Amperes

410917200

$3.28

45

Fuse, 20 Amperes

409003900

$3.28

46

Male Terminal

409004300

$5.61

47

Female Terminal

409007300

$0.45

48

Female Housing, 1 Circuit

278000161

$9.59

49

Wire Seal

278000218

$4.39

50

Wire Seal

710000048

$7.69

51

Fuse, 15 Amperes

278000343

$3.28

52

Female Housing, 5 Circuit

710000106

Unavailable

53

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

54

Ens Fil Bougie *Wire-Spark Kit | Includes 54 to 57

703500744

$64.49

55

Spark Plug Connector

420265248

$31.99

56

Tie Wrap 94 mm | 4X4

293750001

$1.03

57

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

58

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

59

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

60

External Serrated Lock Washer 6 mm

234461608

$1.15

61

Hex. Nut M6

232061414

$0.53

62

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
