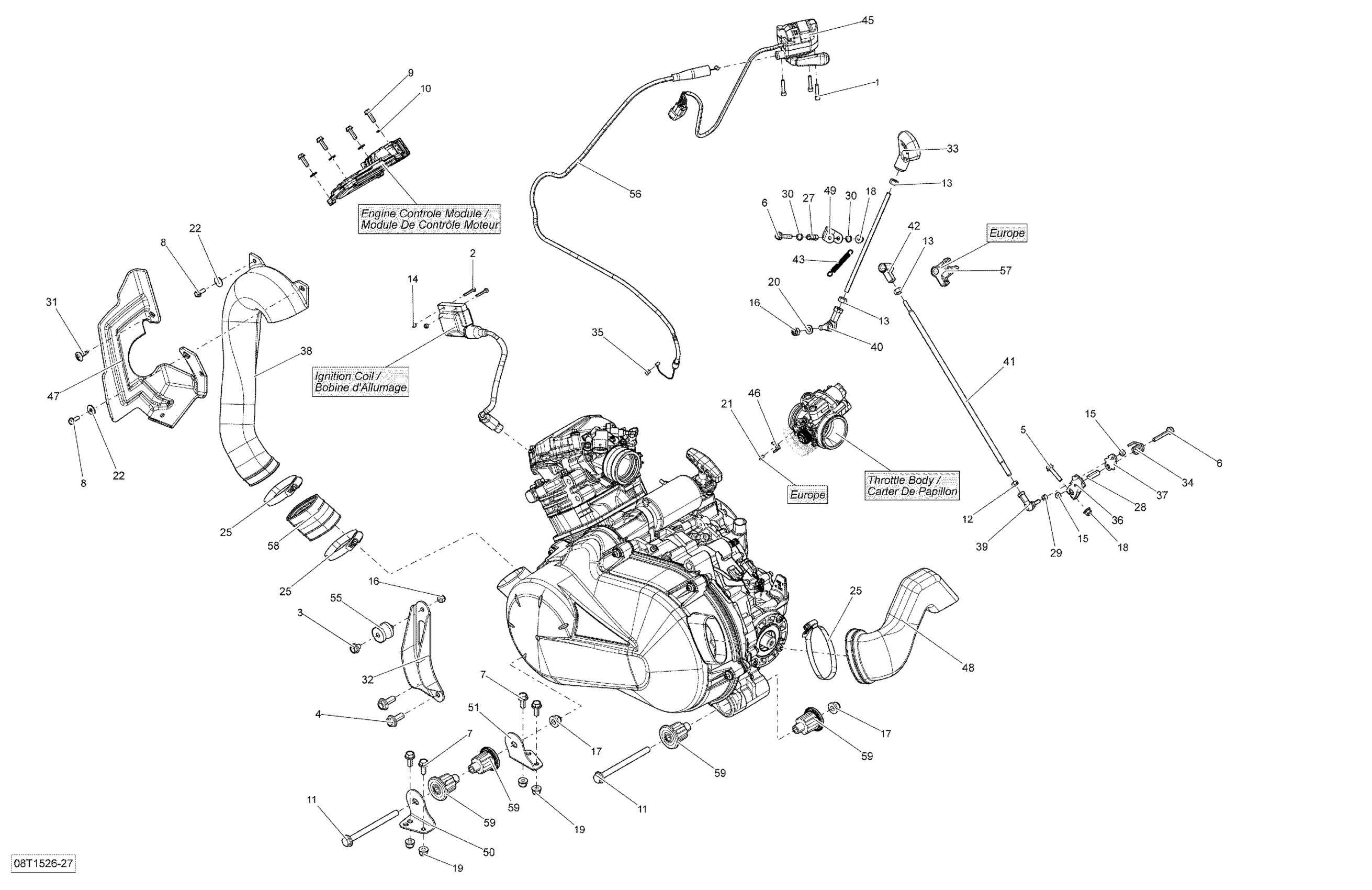

Can-Am Outlander 400 EFI, STD(International only), 2015 01- Engine _08T1526 Diagram

#

Description
Price

1

Socket Head Screw M5 X 25

205052588

$1.90

2

Hex. Screw M4 X 25

207142544

$2.00

3

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

4

Hex. Flange Screw M10 X 25

207602544

$1.69

5

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

6

Hex. Flange Screw M6 X 40

207664044

$2.22

7

Hex. Flange Screw M8 X 20

207682044

$1.15

8

Hex. Flange Screw M6 X 16

210261650

$1.67

9

Hexagonal Head Screw

210262050

$2.11

10

Flat Washer

224061121

$0.53

11

Hex. Flange Screw M10 X 125

230602546

$7.41

12

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

13

Hex. Nut M8

232081414

$0.72

14

Elastic Stop Nut M4

232541414

$0.58

15

Elastic Stop Nut M6

232561414

$0.55

16

Hex. Elastic Stop Nut M8

232581414

$0.56

17

Hex. Flange Elastic Nut M10

233201436

$2.11

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Flat Washer 8 mm

234081410

$0.83

21

Not Available As Spare Parts

XXX

Unavailable

22

Flat Washer

250200082

$0.42

25

Norma Clamp

293650091

$11.12

27

Bushing

293900075

$11.99

28

Bushing

293900079

$8.89

29

Bushing | DS 650 X

293900104

$5.50

30

O-RING - Call your local BRP dealership

414583300

Unavailable

31

Tuflock Phillips Plastic Screw

414745900

$1.69

32

UPPER ENGINE BRACKET - Call your local BRP dealership

707000224

Unavailable

33

Lever Handle

707000284

$19.99

34

Spring

707000310

$10.43

35

Cable Guide

707000434

$11.60

36

Lever

707000503

$38.49

37

Pivot Plate

707000507

$9.23

38

AIR INTAKE - Call your local BRP dealership

707000540

Unavailable

39

LH BALL JOINT - Call your local BRP dealership

707000545

$45.99

40

RH Ball Joint

707001959

$36.99

41

Threaded Rod

707000567

$30.99

42

PIVOT - Call your local BRP dealership

707000568

Unavailable

43

Spring

707000569

$9.69

45

Throttle Handle | 4X4

707000595

$214.99

46

Speed Limiter | Europe

707000573

$14.74

46

Not Available As Spare Parts

XXX

Unavailable

47

CVT WATER DEFLECTOR - Call your local BRP dealership

707000697

Unavailable

48

AIR OUTLET - Call your local BRP dealership

707000718

Unavailable

49

Lever Arm

707000786

$38.99

50

ENGINE BRACKET - Call your local BRP dealership

707000802

Unavailable

51

ENGINE BRACKET - Call your local BRP dealership

707000803

Unavailable

55

Rubber Isolator

707000949

$11.49

56

THROTTLE CABLE - Call your local BRP dealership

707000974

Unavailable

57

PIVOT - Call your local BRP dealership | Europe

707000977

Unavailable

58

Flexibale Adaptor

707002585

$10.99

59

Anti Vibration Buffer

707001170

$20.99
