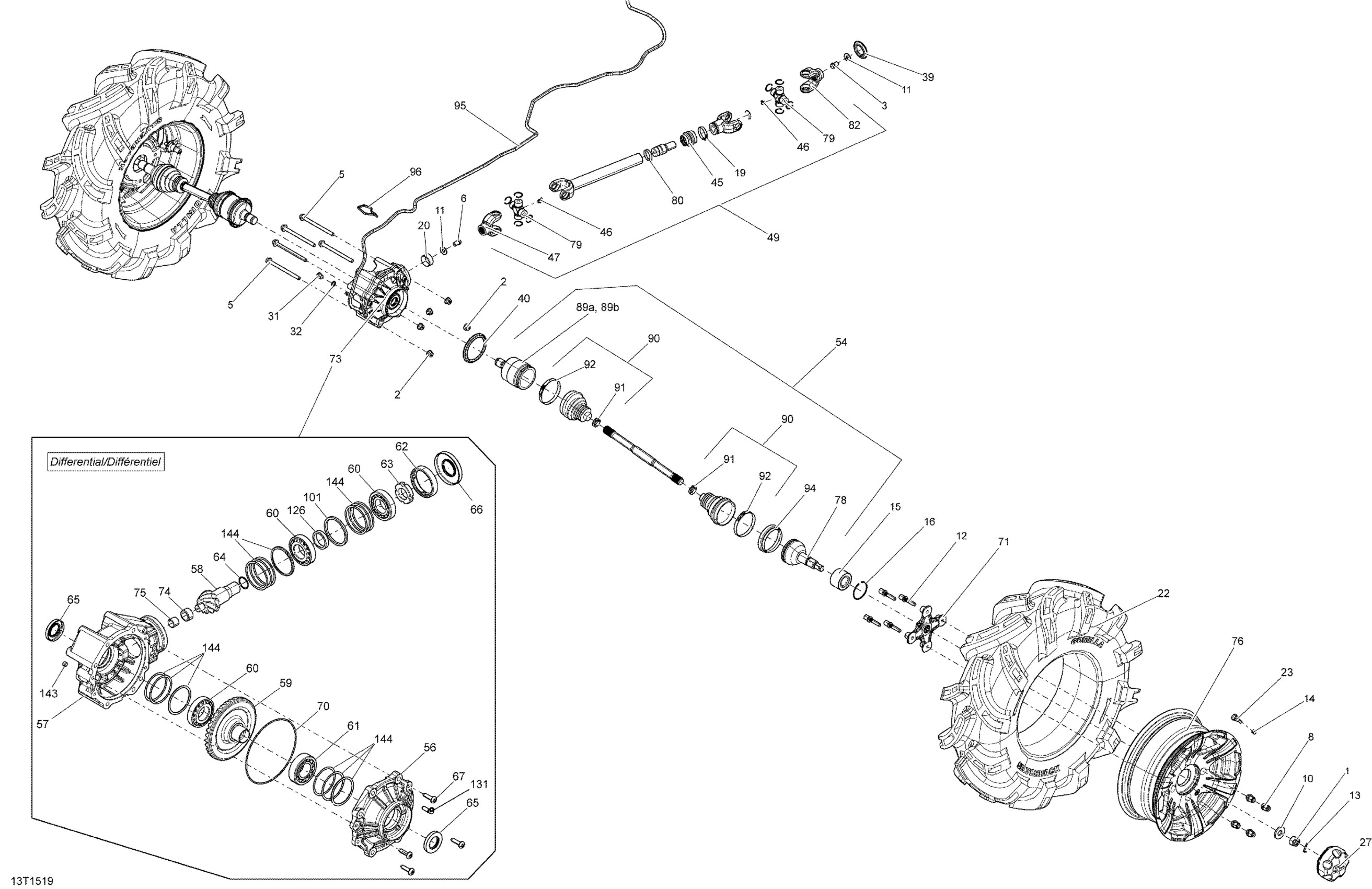

Can-Am Outlander 1000 EFI Xmr, 2015 08- Drive System, Rear _13T1519 Diagram

#

Description
Price

1

Hex. Flange Castellated Nut M18

232291413

$7.98

2

Hex. Flange Elastic Nut M10

233201436

$2.11

3

Hex Flange Screw M12 X 16

250001039

$2.11

5

Hex. Flange Screw M10 X 135

250001041

$5.59

6

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

8

Black, Wheel Nut M10 X 1.25

250100184

$4.51

10

Conical Spring Washer M18

250200171

$7.65

11

Flat Washer M10 | 4X4

250200014

$1.49

12

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

13

Cotter Pin

250400036

$2.11

14

Valve Cap

293000110

$1.59

15

Ball Bearing

293350150

$52.99

16

Circlip

293370019

$4.68

19

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

20

Wear Ring | 4X4

705400036

$26.49

22

TIRE_30X9R14 - Call your local BRP dealership

705400962

Unavailable

23

Rim Valve With Cap

705400193

$8.69

27

Wheel Cap

705401318

$22.49

31

Fill Level Plug | 4X4

705500504

$10.01

32

Copper Washer | 4X4

705500506

$0.45

39

Protector

705501123

$7.55

40

Wear Ring

705501124

$7.90

45

Rubber Boot

715900118

$14.30

46

Grease Fitting

715900184

$5.24

47

FIXED YOKE - Call your local BRP dealership

715900233

Unavailable

49

Shaft Ass'y Kit

703500989

$206.49

54

Performance CV Axle - Rear Left

705501847

$275.49

54

Performance CV Axle - Rear Right

705501848

$275.49

56

Rear Cover

705502547

$163.99

57

Rear Pinion Cover

705502180

$291.49

58

Differential Gear Kit

703500870

$339.99

59

Differential Gear Kit

703500870

$339.99

60

Not Available As Spare Part - Friction Washer

Unavailable

61

Not Available As Spare Part - Friction Washer

Unavailable

62

Nut

705501549

$32.99

63

Nut

705501550

$21.99

64

O-Ring

705501554

$5.03

65

Oil Seal

705501556

$17.99

66

Oil Seal

705501557

$19.49

67

Screw

705502063

$3.24

70

O-Ring

705501711

$10.54

71

Wheel Hub Ass'y

705501716

$105.99

73

Final Drive Unit

705502546

$1,144.99

74

INNER RING - Call your local BRP dealership

705501761

Unavailable

75

Needle Bearing Ass'y

703500836

$56.99

76

Matte Black Rim

705401552

$148.99

78

CV Joint

705501776

$259.49

79

Universal Joint

715900270

Unavailable

80

Oetiker Gear Clamp 36.1MM

509000045

$8.29

82

Fixed Joint

715900129

$24.99

90

Boot Kit

705501864

$42.49

91

Oetiker Clamp, 27.3 mm

715900242

$10.33

92

Oetiker Clamp, 82.1 mm

715900241

$10.33

94

Joint Protector

705501842

$8.85

95

Polyurethane Hose 10000Mm Long

219704410

$56.99

96

Tie Wrap 368 mm

293750008

$1.04

101

Differential Shim

705501552

Unavailable

126

Differential Shim

705501553

Unavailable

131

Breather Tube

705501584

$14.99

143

Plug Drain

705501724

$5.95

144

Differential Shim Kit

703500835

$46.49

89a

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

89b

Circlip

705501781

$6.50
