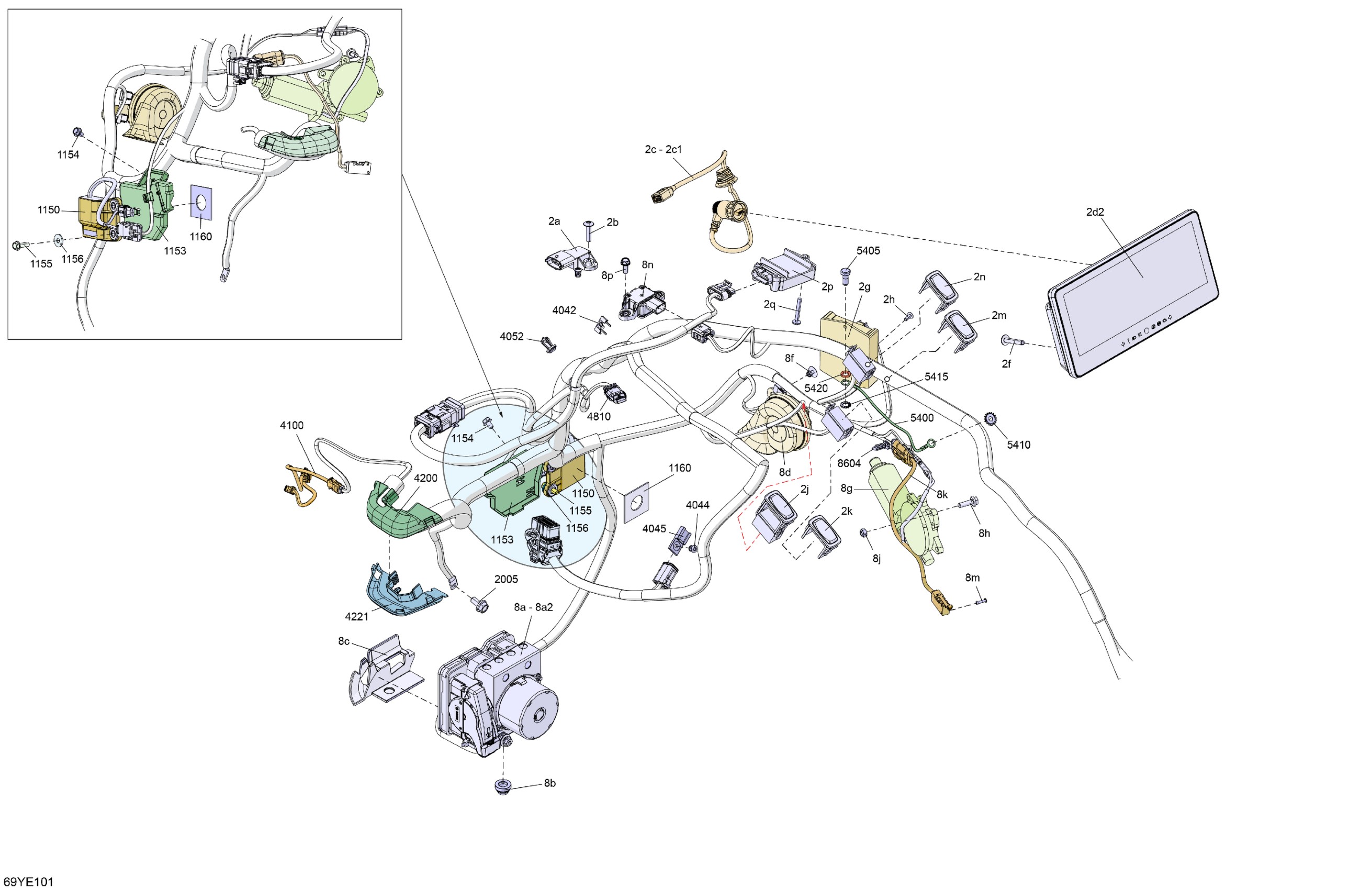

Can-Am Europe - CANYON STD - J1SB - Sterling Silver Satin, 2025 08- Electric - Front Electric Diagram

#

Description
Price

2a

Pressure And Temperature Sensor

707000995

$88.99

2b

Torx Truss Screw M6 X 25

250000807

$2.11

2c

USB Wiring Harness Ass'y

710010072

$76.99

2c1

USB wiring Harness Ass'y

515179431

$76.99

2d2

Multifunction Gauge 10

710010374

$2,039.99

2f

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

2g

PBM Module Ass'y

710008602

$459.99

2h

Torx Truss PT K40 x 12

250001131

$2.11

2j

Switch Hole Cap

517306808

$14.49

2k

Switch Hole Cap

517306808

$14.49

2m

Switch Hole Cap

517306808

$14.49

2n

Switch Hole Cap

517306808

$14.49

2p

External Module GPS

278004172

$189.99

2q

Torx Screw K50 X 35

250001111

$14.49

6a

Wiring Harness | Not Shown

710010118

$17.49

8a

Mod Vcm Wet Prog & Grommet Kit | Includes 8h to 8h2

219800536

$1,149.99

8a2

Shock Damper

710003279

$10.49

8b

Vibration Damper

710009090

$10.49

8c

VCM Harness Protector

710003996

$2.79

8d

Horn

710004940

$29.49

8f

Pop Rivet 3/16"

293150103

$0.55

8g

Actuator Motor

710007256

$227.99

8h

Hex. Flange Screw M6 X 20

207662054

$1.01

8j

Elastic Stop Nut M6

232561434

$1.99

8k

Brake Pressure Switch Ass'y

710001379

$43.49

8m

Pop Rivet

293150150

$2.40

8n

Yaw Rate Sensor

710005658

$179.99

8p

Hex. Flange Screw M6 X 16

210261650

$1.67

1150

Dess Module

710004916

$179.99

1153

Connector Support

707003207

$14.99

1154

Hex. Forming Screw M6 X 10

210261050

$1.69

1155

Hexagonal Head Screw

210262050

$2.11

1156

Stainless Steel Flat Washer

234062670

$2.11

1160

Rubber Bumper

293830091

$8.29

2005

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

4042

Lock

710001222

$2.09

4044

Pop Rivet 3/16 X ,425

293150293

$0.35

4045

Clip

270000141

$11.49

4052

Tuflok Plastic Rivet

293150230

$1.47

4100

Fog Light Wiring Harness

710009923

$76.99

4200

Upper Harness Holder

710009180

$3.39

4221

Lower Harness Holder

710010741

$3.39

4810

Connector Cap

708305003

$13.22

5400

Fuel Tank Cable

710006436

$19.49

5405

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

5410

Lock Washer Serrated M6

250200041

$1.15

5415

Serrated Lock Washer 8 mm

234481608

$1.15

5420

Washer

250200111

$2.11

8604

Connector Holder

710002033

$3.39
