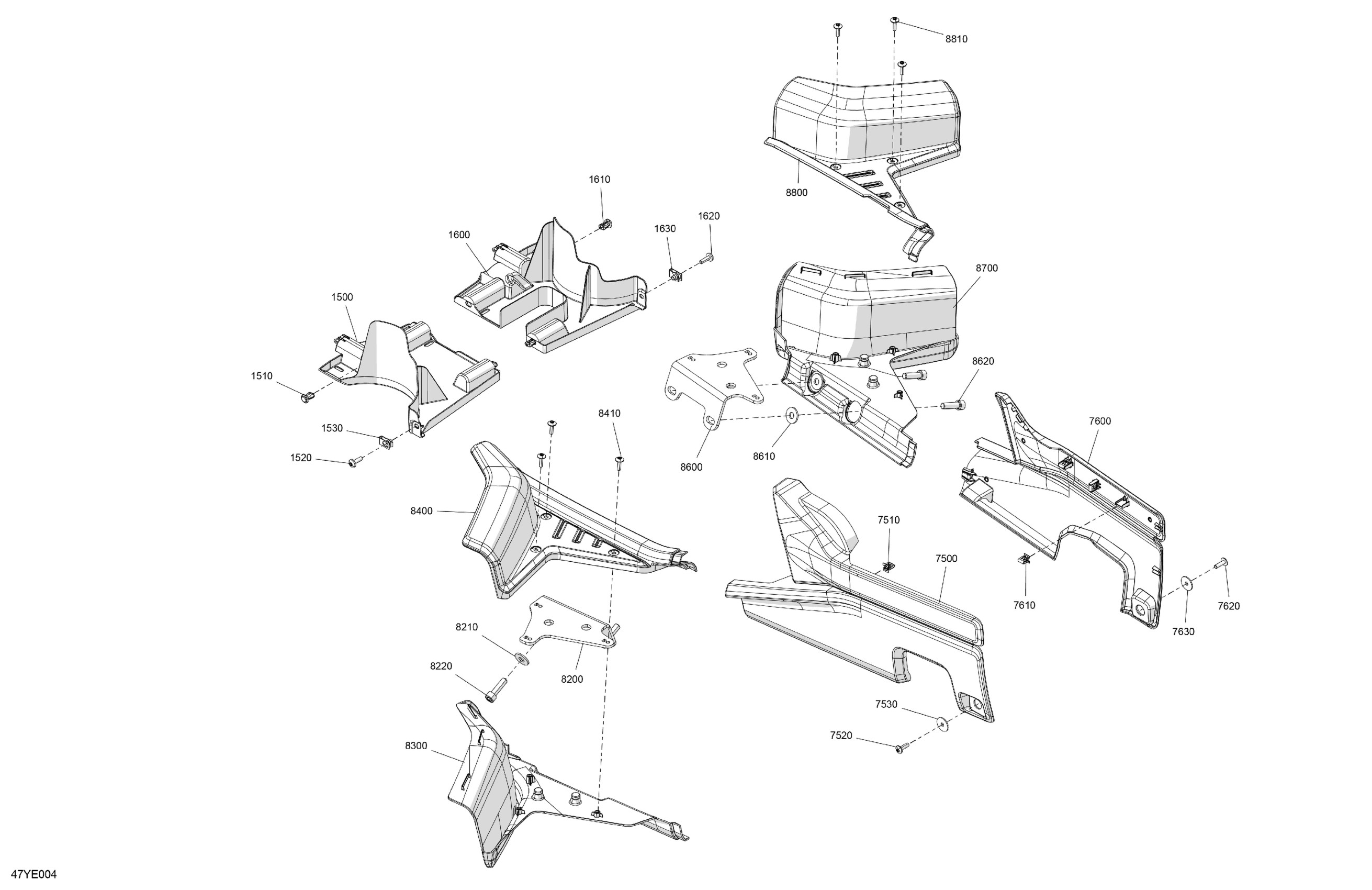

Can-Am Europe - CANYON STD - J1SB - Sterling Silver Satin, 2025 07- Body - Skid Plate Diagram

Description

Price

1500

LH Skid Plate

705017695

$28.49

1510

Tuflok Plastic Rivet

293150230

$1.47

1520

Torx Truss Screw M6 X 20

250000705

$2.11

1530

Panel Nut M6 X 1.0

250100198

$2.11

1600

RH Skid Plate

705017696

$28.49

1610

Tuflok Plastic Rivet

293150230

$1.47

1620

Torx Truss Screw M6 X 20

250000705

$2.11

1630

Panel Nut M6 X 1.0

250100198

$2.11

7500

LH Skid Plate

705017384

$28.49

7510

Edge Clip

517302785

$0.88

7520

Torx Screw M6 X 20

250000722

$1.68

7530

Washer M6

250200029

$2.50

7600

RH Skid Plate

705017385

$28.49

7610

Edge Clip

517302785

$0.88

7620

Torx Screw M6 X 20

250000722

$1.68

7630

Washer M6

250200029

$2.50

8200

LH Deflector Support

705018640

$35.99

8210

Washer

503191926

$1.58

8220

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

8300

LH Lower Deflector

705018744

$43.99

8400

LH Upper Deflector

705018742

$43.99

8410

Screw Type K-50 X20

250001155

$4.76

8600

RH Deflector Support

705018639

$35.99

8610

Washer

503191926

$1.58

8620

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

8700

RH Lower Deflector

705018745

$28.99

8800

RH Upper Deflector

705018743

$28.99

8810

Screw Type K-50 X20

250001155

$4.76
