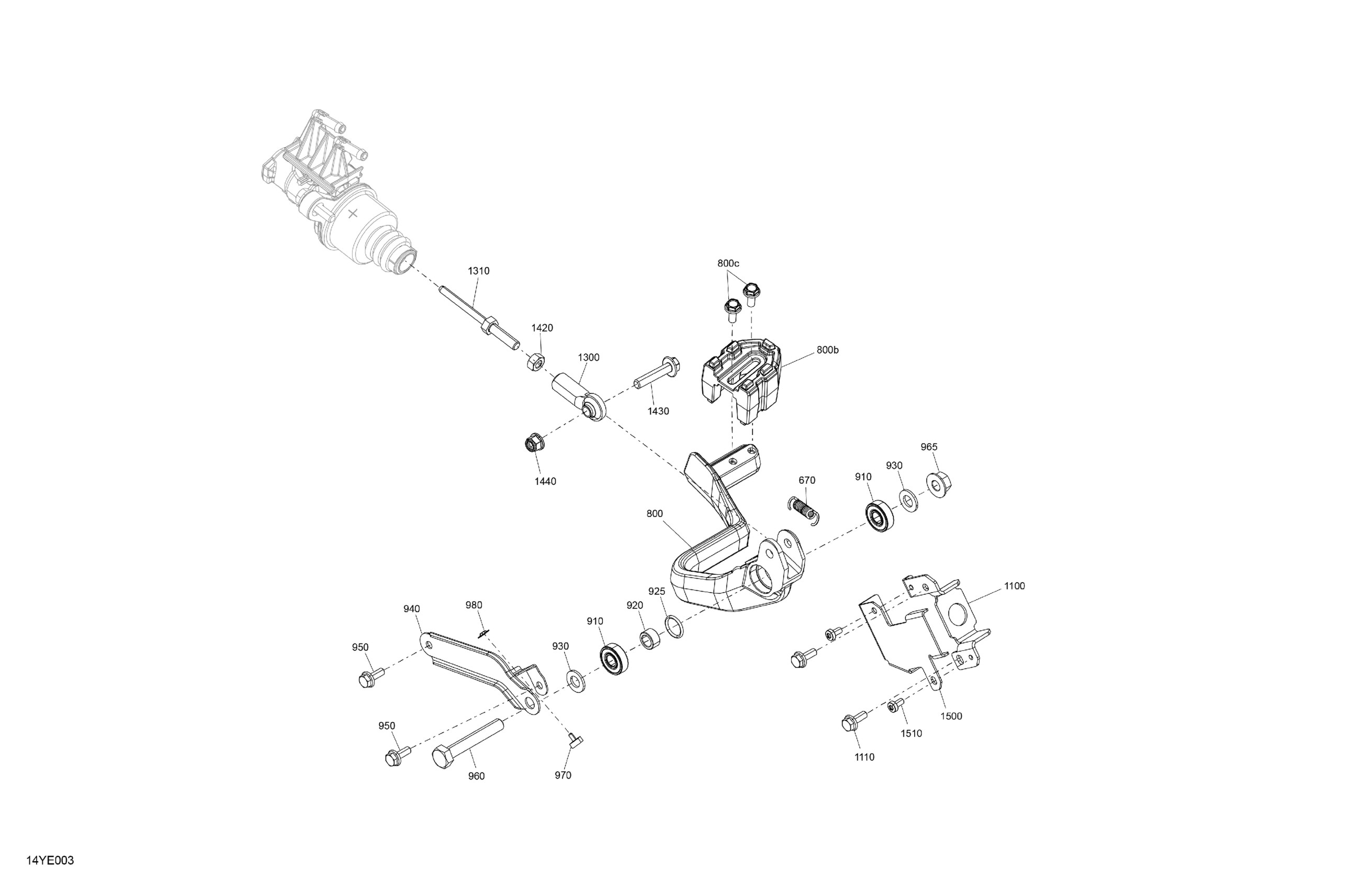

Can-Am North America - CANYON REDROCK - J3SA - Moss Green, 2025 03- Mechanic - Brake Pedal Diagram

Description

Price

670

Compression Spring

705602243

$3.17

800

Brake Pedal Ass'y | Includes 800 to 800c

705602321

$104.99

800b

Pedal Tip

705602245

$20.49

800c

Hex.Flange Screw M6 X 16

250001362

$2.11

910

Ball Bearing

705601974

$7.49

920

Spacer

705602003

$6.98

925

O-Ring

293300191

$1.46

930

Washer

503183800

$3.28

940

Stopper Support

705602256

$49.99

950

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

960

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

965

Hex. Flange Nut M10

233101414

$4.97

970

Rubber Stopper

708003414

$4.12

980

Push Nut

250001189

$1.37

1100

Switch Support

705602358

$17.99

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

1300

ROD END - Call your local BRP dealership

705601506

$14.99

1310

Piston Rod

705600468

$23.49

1420

Hex. Nut M8

232081414

$0.72

1430

Hex Flange Screw M8 X 40

207684056

$1.47

1440

Elastic Flange Nut M8

233281466

$1.01

1500

Heat Shield

705602357

$18.99

1510

Pan Screw Forming, 7500C

250000690

$2.11
