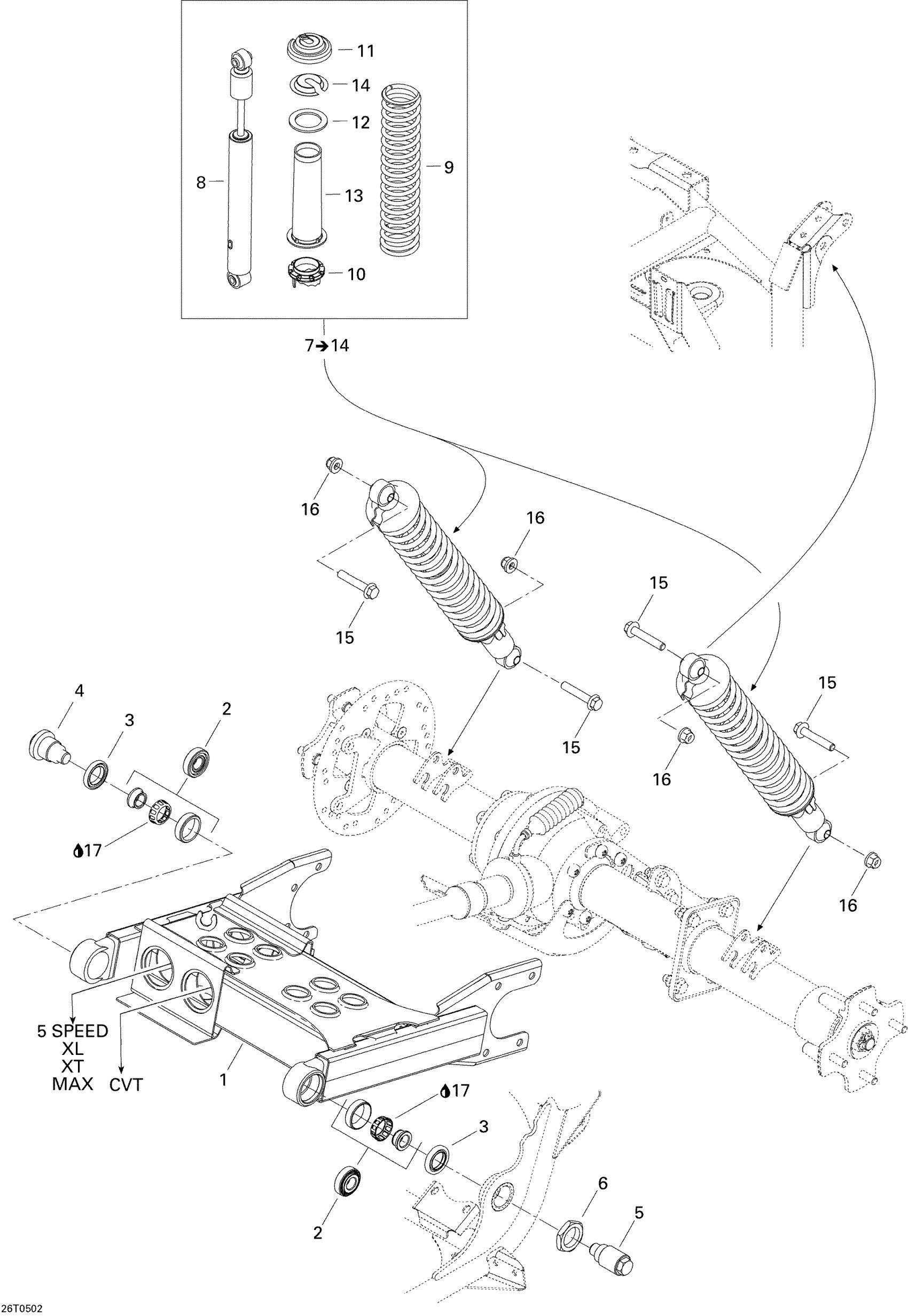

Can-Am Traxter XT, 2005 08- Rear Suspension Diagram

#

Description
Price

1

SWING ARM, BLACK - Call your local BRP dealership

706000298

Unavailable

2

CONE BEARING - Call your local BRP dealership

706000169

Unavailable

3

OIL SEAL - Call your local BRP dealership

706000010

Unavailable

4

RH Pivot Bolt

706000092

Unavailable

5

LH PIVOT BOLT - Call your local BRP dealership

706000093

Unavailable

6

HEX. JAM NUT - Call your local BRP dealership

706000006

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Rear Shock

706000380

Unavailable

9

Rear Spring, Yellow

706000301

Unavailable

10

Adjuster Ring

706002356

$18.49

11

Spring Stopper

706200881

$12.99

12

SPRING SEAT - Call your local BRP dealership

706000533

Unavailable

13

PROTECTOR - Call your local BRP dealership

503190436

Unavailable

14

Cap

706200785

$4.69

15

Hex. Flange Screw M10 X 55

207605544

$3.38

16

Hex. Flange Elastic Nut M10

233201414

$1.58

17

Synthetic Grease, 400 G

293550010

Unavailable
