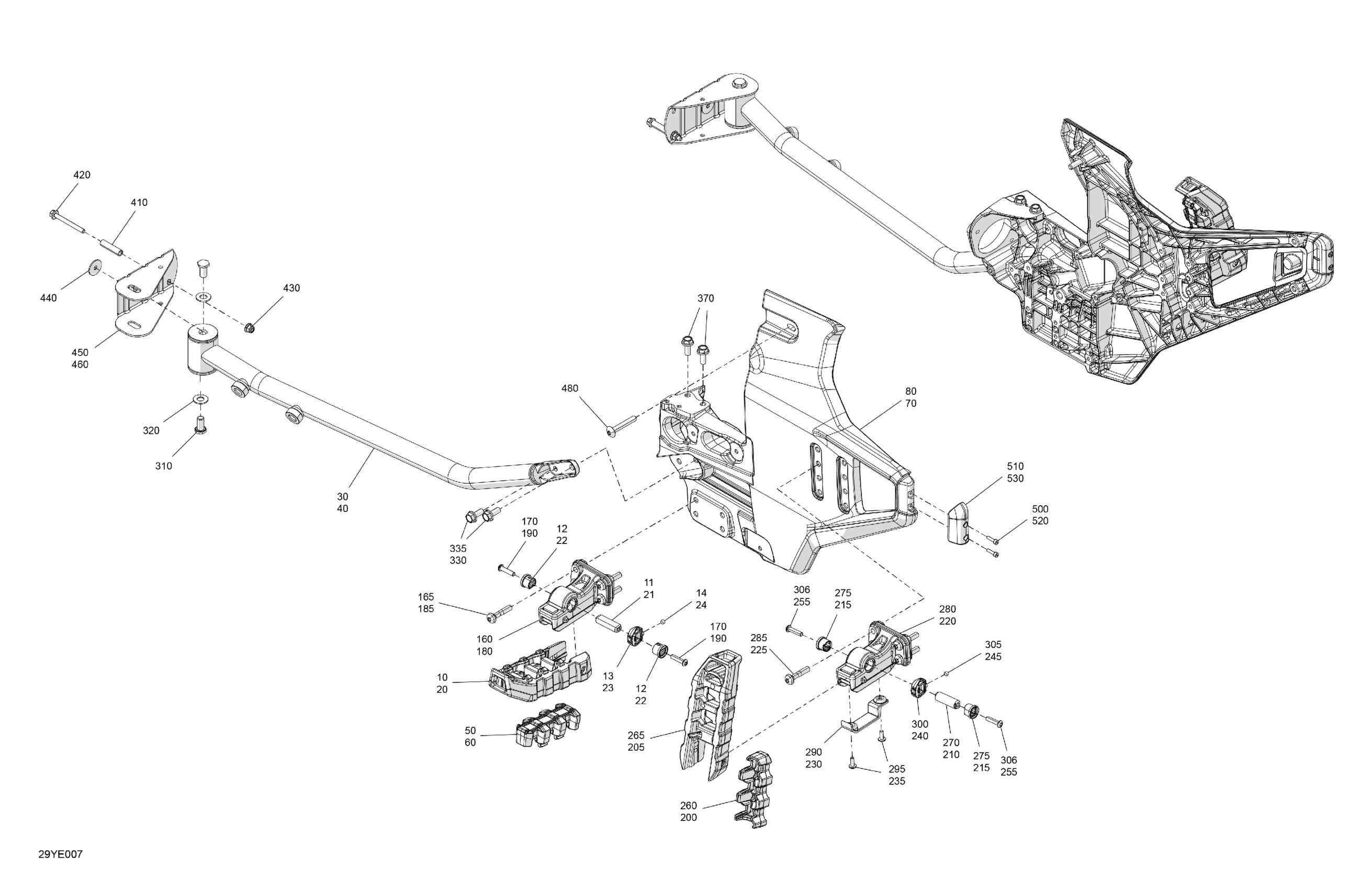

Can-Am Europe - CANYON REDROCK - J3SB - Moss Green, 2025 06- Frame - Footrest Diagram

#

Description
Price

10

Footrest

705018513

$51.99

11

Hinge Pin

705017968

$17.82

12

Bushing

705018477

$5.59

13

Overmolded Magnet

709403037

$38.99

14

Ball

705001705

$6.39

20

Footrest

705018513

$51.99

21

Hinge Pin

705017968

$17.82

22

Bushing

705018477

$5.59

23

Overmolded Magnet

709403037

$38.99

24

Ball

705001705

$6.39

30

LH Lower Support

705017638

$119.99

40

RH Lower Support

705017639

$119.99

50

Footrest Pad

705017889

Unavailable

60

Footrest Pad

705017889

Unavailable

70

RH Footrest Support

705018517

$409.99

80

LH Footrest Support

705018519

$389.99

160

LH Footrest Anchorage

709403041

$84.99

165

Button Head Torx Screw M8 X 38

250000904

$2.11

170

Torx Button Head Screw M6 X 25

250001352

$6.08

180

RH Footrest Anchorage

709403040

$84.99

185

Button Head Torx Screw M8 X 38

250000904

$2.11

190

Torx Button Head Screw M6 X 25

250001352

$6.08

200

Footrest Pad

705017889

Unavailable

205

Footrest

705018513

$51.99

210

Hinge Pin

705017968

$17.82

215

Bushing

705018477

$5.59

220

RH Footrest Anchorage

709403040

$84.99

225

Button Head Torx Screw M8 X 38

250000904

$2.11

230

RH Sensor Support

710010571

$2.54

235

Torx Screw M5 X 14

250000742

$1.47

240

Overmolded Magnet

709403037

$38.99

245

Ball

705001705

$6.39

255

Torx Button Head Screw M6 X 25

250001352

$6.08

260

Footrest Pad

705017889

Unavailable

265

Footrest

705018513

$51.99

270

Hinge Pin

705017968

$17.82

275

Bushing

705018477

$5.59

280

LH Footrest Anchorage

709403041

$84.99

285

Button Head Torx Screw M8 X 38

250000904

$2.11

290

LH Trim Support

710010572

$3.39

295

Torx Screw M5 X 14

250000742

$1.47

300

Overmolded Magnet

709403037

$38.99

305

Ball

705001705

$6.39

306

Torx Button Head Screw M6 X 25

250001352

$6.08

310

Hex. Cap Screw Full Thread M10 X 20

250000719

$5.82

320

Washer

506152582

$4.55

330

Hex Flange Screw M8 X 20

207582046

$1.48

335

Hex Flange Screw M8 X 20

207582046

$1.48

370

Hex Screw Washer Head M8 X 20

207582054

$3.17

410

Spacer

705018575

$12.99

420

Hex. Flange Screw M6 X 60

250000778

$4.44

430

Hex. Flange Elastic Nut M6

233261466

$2.00

440

Washer M6

250200029

$2.50

450

Tube Support | Includes 150 to 150a

705008950

$22.99

460

Tube Support | Includes 150 to 150a

705008950

$22.99

480

Torx Truss Screw M/S M8 X 50 S.Grip

250001368

Unavailable

500

Black, Socket Head Screw M4 X 16

250001011

$1.47

510

LH Cap

708401005

$3.69

520

Black, Socket Head Screw M4 X 16

250001011

$1.47

530

RH Cap

708401004

$3.69
