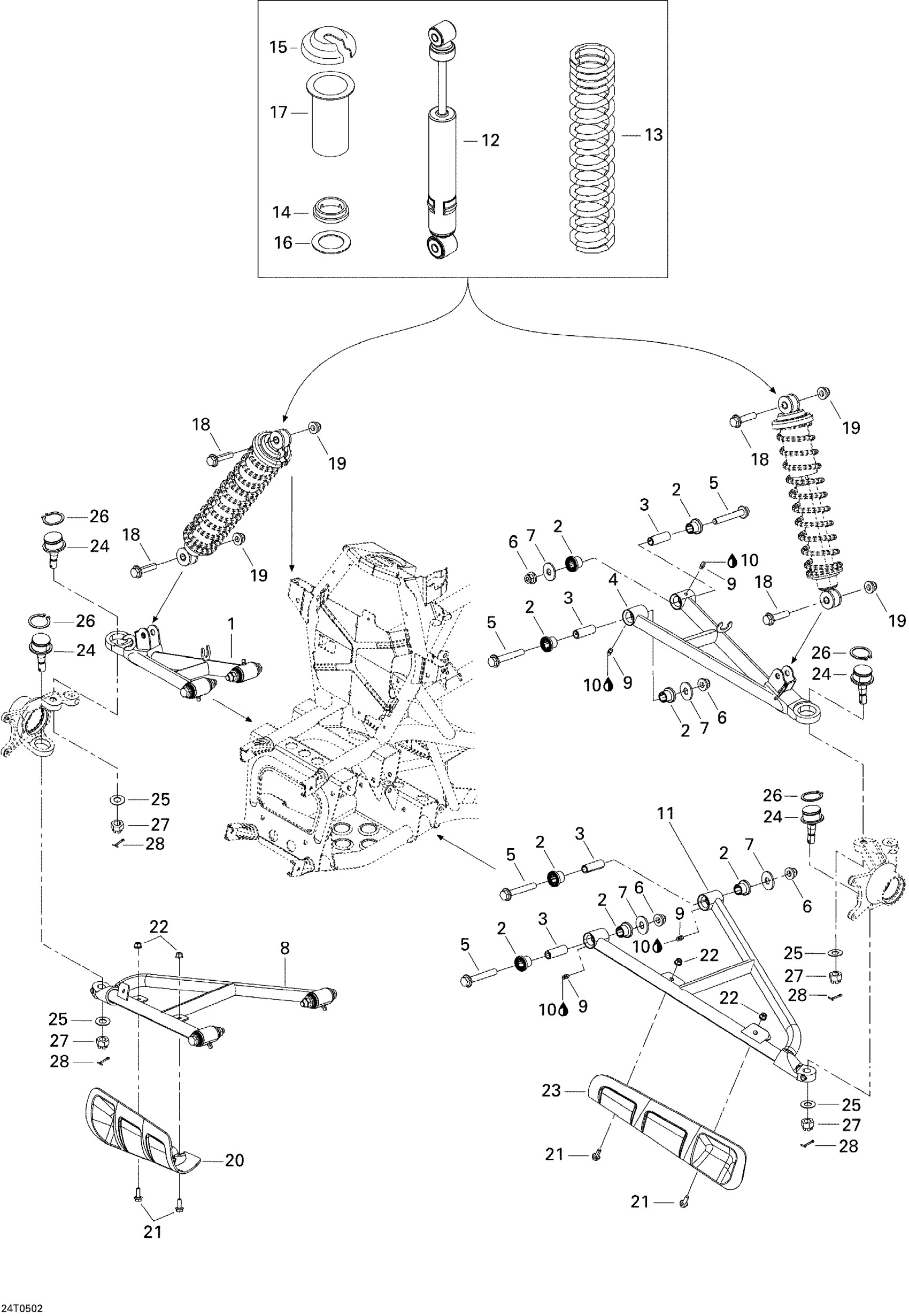

Can-Am Traxter XT, 2005 07- Front Suspension Diagram

#

Description
Price

1

RH UPPER ARM, BLACK - Call your local BRP dealership

706200318

Unavailable

2

Bushing

706200181

$3.14

3

Sleeve

706201587

$3.79

4

LH Upper Arm, Black

706200320

Unavailable

5

Hex. Flange Screw M10 X 70

207607046

$2.96

6

Hex. Flange Elastic Nut M10

233201436

$2.11

7

Conical Spring Washer 10 mm

234201474

$1.69

8

RH LOWER ARM, BLACK - Call your local BRP dealership

706200360

Unavailable

9

Grease Fitting

408200700

$3.49

10

Synthetic Grease, 400 G

293550010

Unavailable

11

LH LOWER ARM, BLACK - Call your local BRP dealership

706200365

Unavailable

12

FRONT SHOCK - Call your local BRP dealership

706200429

Unavailable

13

Yellow Front Spring | Traxter 5-Speed STD

706200467

Unavailable

13

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | Traxter 5-Speed XT

706200470

Unavailable

14

SPRING GUIDE - Call your local BRP dealership

706200460

Unavailable

15

Spring Stopper

706200881

$12.99

16

WASHER - Call your local BRP dealership

706000375

Unavailable

17

PROTECTOR - Call your local BRP dealership

503139800

Unavailable

18

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

19

Hex. Flange Elastic Nut M10

233201414

$1.58

20

RH ARM PROTECTOR - Call your local BRP dealership

706200179

Unavailable

21

Hex. Flange Screw M6 X 16

207661644

$0.74

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

LH ARM PROTECTOR - Call your local BRP dealership

706200180

Unavailable

24

Ball Joint

706200653

$44.99

25

Hardened Washer

706200281

$2.85

26

Circlip 32 mm

293370009

$1.39

27

Hex. Castellated Nut M12

232221414

$3.17

28

Cotter Pin

211400017

$0.33
