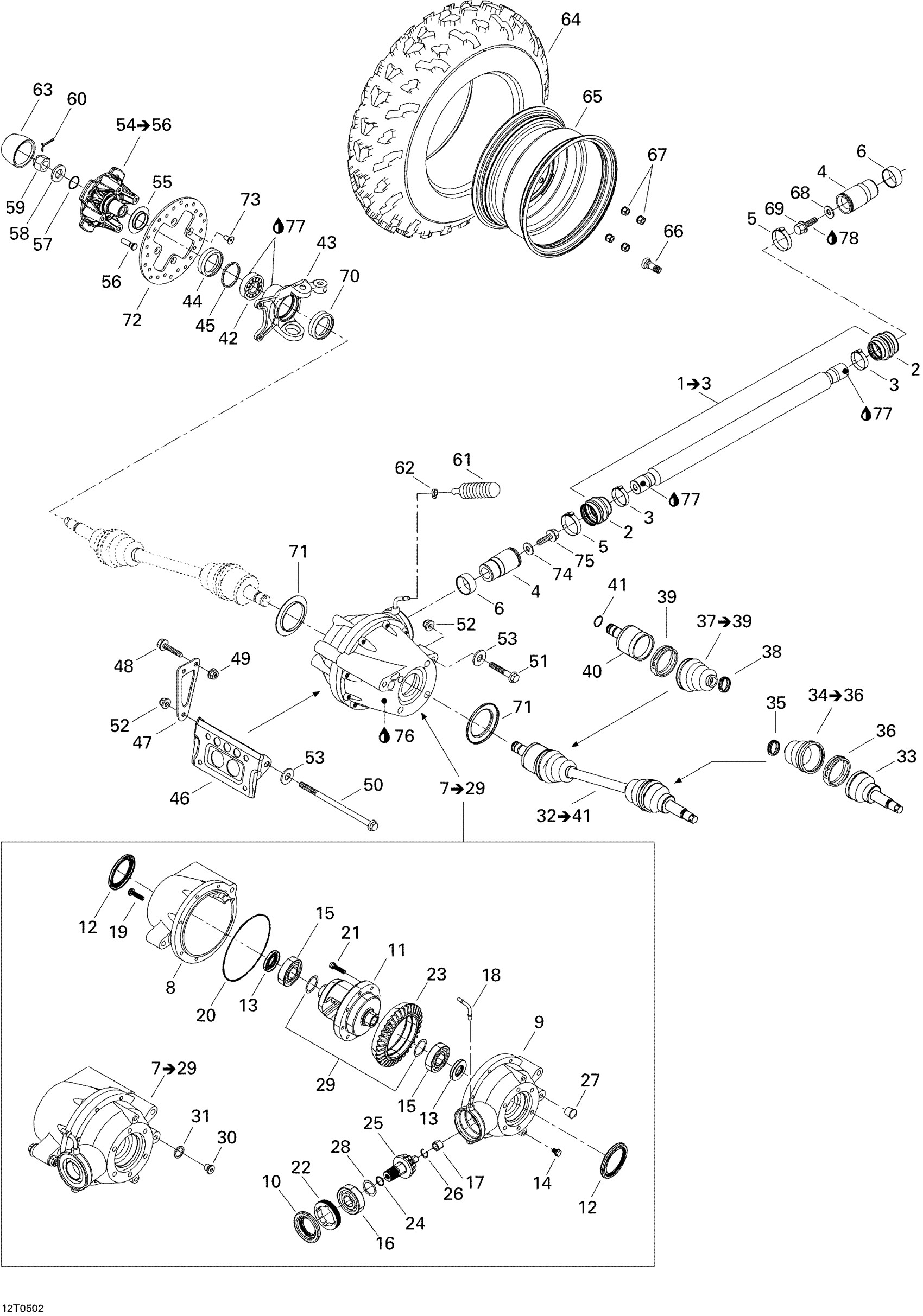

Can-Am Traxter XT, 2005 07- Drive System, Front Diagram

#

Description
Price

1

Front Drive Axle Ass'y | Includes 1 to 3

705400334

Unavailable

2

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

3

Collar | 4X4

705400148

Unavailable

4

Front Bushing Shaft Kit | 4X4

703500678

$114.99

5

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

6

Wear Ring | 4X4

705400036

$26.49

7

Front Differential Ass'y | Includes 7 to 29

705400264

Unavailable

8

Front Cover

705400099

Unavailable

9

PINION REAR COVER - Call your local BRP dealership

705500515

Unavailable

10

Oil Seal | 4X4

705401481

$19.49

11

DIFFERENTIAL - Call your local BRP dealership

705400404

Unavailable

12

OIL SEAL - Call your local BRP dealership

705400019

Unavailable

13

Gasket | 4X4

705401618

$18.49

14

Drain Plug | 4X4

705500894

$11.49

15

Ball Bearing | 4X4

705401606

$51.99

16

Ball Bearing | 4X4

705500260

$31.99

17

Needle Bearing | 4X4

705500261

$19.99

18

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

19

Screw | 4X4

705401601

$10.49

20

Seal | 4X4

705500265

$18.76

21

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

Unavailable

22

Nut | 4X4

705401603

$35.99

23

GEAR, 36 TEETH - Call your local BRP dealership | 4X4

705400192

Unavailable

24

O-Ring | 4X4

705500267

$7.65

25

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

26

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

27

PROTECTION PLUG - Call your local BRP dealership

705500516

Unavailable

28

Pinion Gear Shim .022"

705500075

Unavailable

29

Shim | 4X4

705401604

$57.99

30

Fill Level Plug | 4X4

705500504

$10.01

31

Copper Washer | 4X4

705500506

$0.45

32

LH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400124

Unavailable

32

RH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400125

Unavailable

33

CV JOINT - Call your local BRP dealership

705400093

Unavailable

34

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$42.49

35

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

36

Clamp | 4X4

705400180

Unavailable

37

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$42.49

38

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

39

Clamp | 4X4

705400181

Unavailable

40

RH Plunging Joint

705400128

Unavailable

40

LH Plunging Joint

705400129

Unavailable

41

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

42

Ball Bearing

293350150

$52.99

43

RH Knuckle

709400095

Unavailable

43

LH KNUCKLE - Call your local BRP dealership

709400097

Unavailable

44

OIL SEAL - Call your local BRP dealership

705500099

Unavailable

45

Circlip

293370019

$4.68

46

DIFFENTIAL FRONT BRACKET - Call your local BRP dealership

705400255

Unavailable

47

RH Diffential Front Bracket

705400069

Unavailable

48

Hex. Flange Screw M8 X 20

207682044

$1.15

49

Hex. Flange Elastic Nut M8

233281414

$1.47

50

Flange Screw M10 X 200, Scotch Grip

250000024

Unavailable

51

Hex. Flange Screw M10 X 65

207606536

$4.44

52

Hex. Flange Elastic Nut M10

233201436

$2.11

53

Flat Washer

250200003

Unavailable

54

Wheel Hub Ass'y | Includes 54 to 56

705400330

Unavailable

55

WEAR RING - Call your local BRP dealership

705500100

Unavailable

56

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

57

O-RING - Call your local BRP dealership

705500271

Unavailable

58

WASHER - Call your local BRP dealership

250200019

Unavailable

59

Hex. Flange Castellated Nut M18

232291413

$7.98

60

Cotter Pin

250400036

$2.11

61

Rubber Bellow | 4X4

705400552

$6.14

62

Tie Wrap 94 mm | 4X4

293750001

$1.03

63

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

64

Front Tire | XT

705400326

$134.99

65

FRONT RIM - Call your local BRP dealership

705400290

Unavailable

66

Rim Valve With Cap

705400193

$8.69

67

Steel Wheel Nut

250100042

$3.98

68

Washer

211200041

$3.17

69

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

70

Oil Seal | 4X4

293250090

$24.49

71

Wear Ring

705400016

Unavailable

72

Disc Brake 205 mm

705600342

Unavailable

73

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

74

Flat Washer M10 | 4X4

250200014

$1.49

75

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

76

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

77

Synthetic Grease, 400 G

293550010

Unavailable

78

Loctite 271, 10 ml

293800005

$26.99
