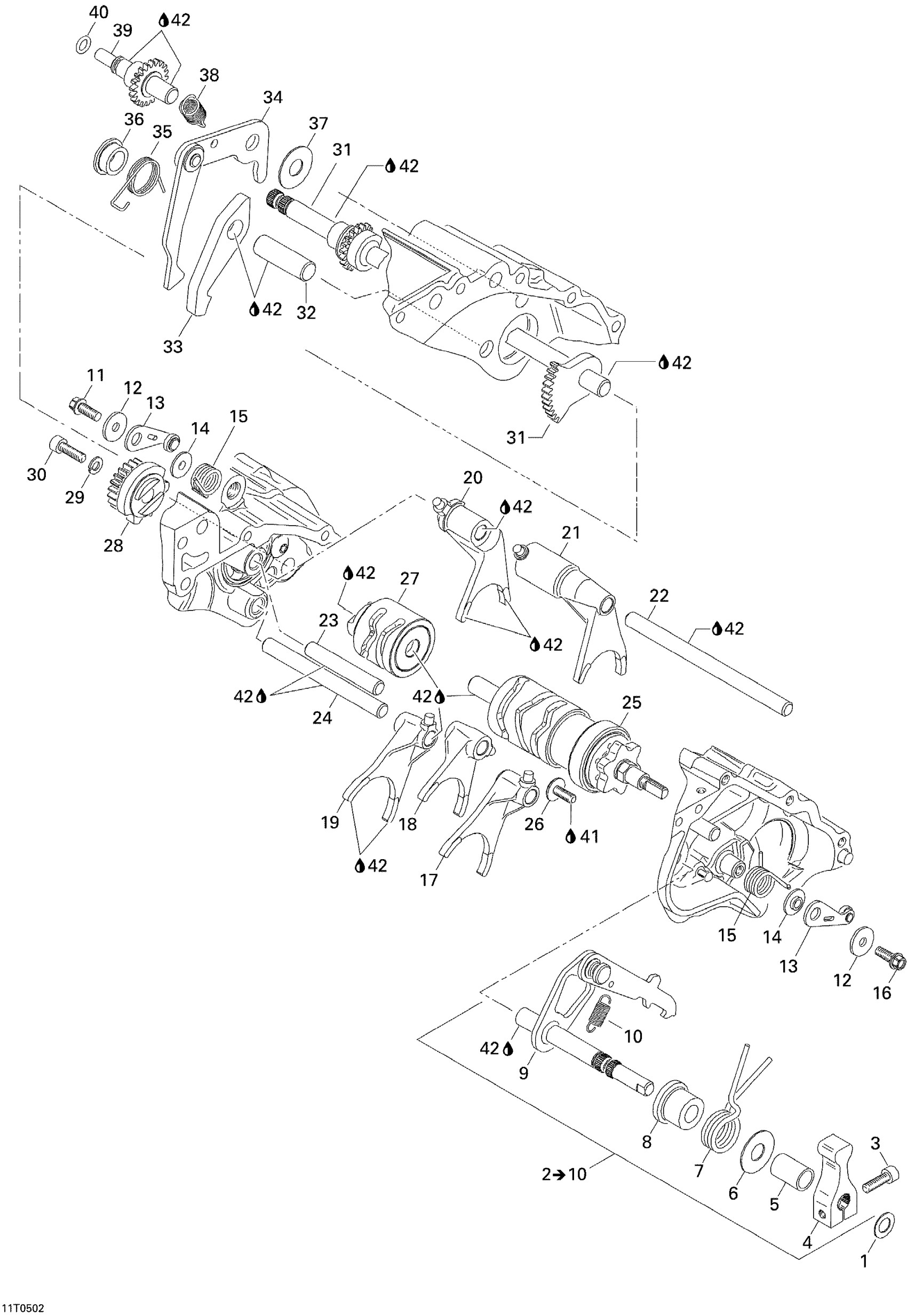

Can-Am Traxter XT, 2005 05- Gear Shift Diagram

#

Description
Price

1

THRUST WASHER - Call your local BRP dealership

420627100

Unavailable

2

SHIFT SHAFT ASS'Y - Call your local BRP dealership | Includes 2 to 10

420220537

Unavailable

3

Socket Head Screw M6 X 25

205062544

$1.15

4

Gear Shift Lever

711257090

Unavailable

5

Distance Sleeve

711247020

Unavailable

6

THRUST WASHER - Call your local BRP dealership

420227980

Unavailable

7

Shaft Spring

711239084

Unavailable

8

Collar Sleeve

711247050

Unavailable

9

Shift Shaft with Pawl Ass'y

711220536

Unavailable

10

Tension Spring

711239540

Unavailable

11

Hex. Flange Screw M6 X 16

420241751

Unavailable

12

Washer

420227900

Unavailable

13

INDEX LEVER KIT - Call your local BRP dealership

703500189

Unavailable

14

BUSHING - Call your local BRP dealership

420227710

Unavailable

15

INDEX LEVER SPRING - Call your local BRP dealership

420239560

Unavailable

16

Hex. Flange Screw M6 X 16

420241751

Unavailable

17

Shift Fork

420258402

Unavailable

18

Shift Fork

420258412

Unavailable

19

Shift Fork

420258392

Unavailable

20

Shift Fork

420258424

Unavailable

21

SHIFT FORK - Call your local BRP dealership

420258434

Unavailable

22

GEAR SHIFT ROD - Call your local BRP dealership

420257080

Unavailable

23

Needle Pin

420229475

$14.83

24

Cylindrical Pin M10 X 100

420229480

Unavailable

25

SHIFT DRUM ASS'Y - Call your local BRP dealership

420257107

Unavailable

26

SCREW M6 X 13 - Call your local BRP dealership

420241531

Unavailable

27

Shift Drum

420257111

Unavailable

28

INDEX GEAR - Call your local BRP dealership

420257130

Unavailable

29

Lock Washer

420445331

Unavailable

30

Socket Head Screw M6 X 25

205062544

$1.15

31

Shift Shaft Ass'y

420220585

Unavailable

32

SHAFT - Call your local BRP dealership

420220600

Unavailable

33

PARK LOCKING LEVER - Call your local BRP dealership

420258621

Unavailable

34

Actuating Lever

420258475

Unavailable

35

HELICAL SPRING - Call your local BRP dealership

420239550

Unavailable

36

COLLAR SLEEVE - Call your local BRP dealership

420247040

Unavailable

37

THRUST WASHER - Call your local BRP dealership

420227980

Unavailable

38

TENSION SPRING - Call your local BRP dealership

420239591

Unavailable

39

INDICATOR SHAFT - Call your local BRP dealership

420220545

Unavailable

40

O-Ring

420430800

$4.09

41

Loctite 243, 10 ml

293800060

$21.49

42

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
