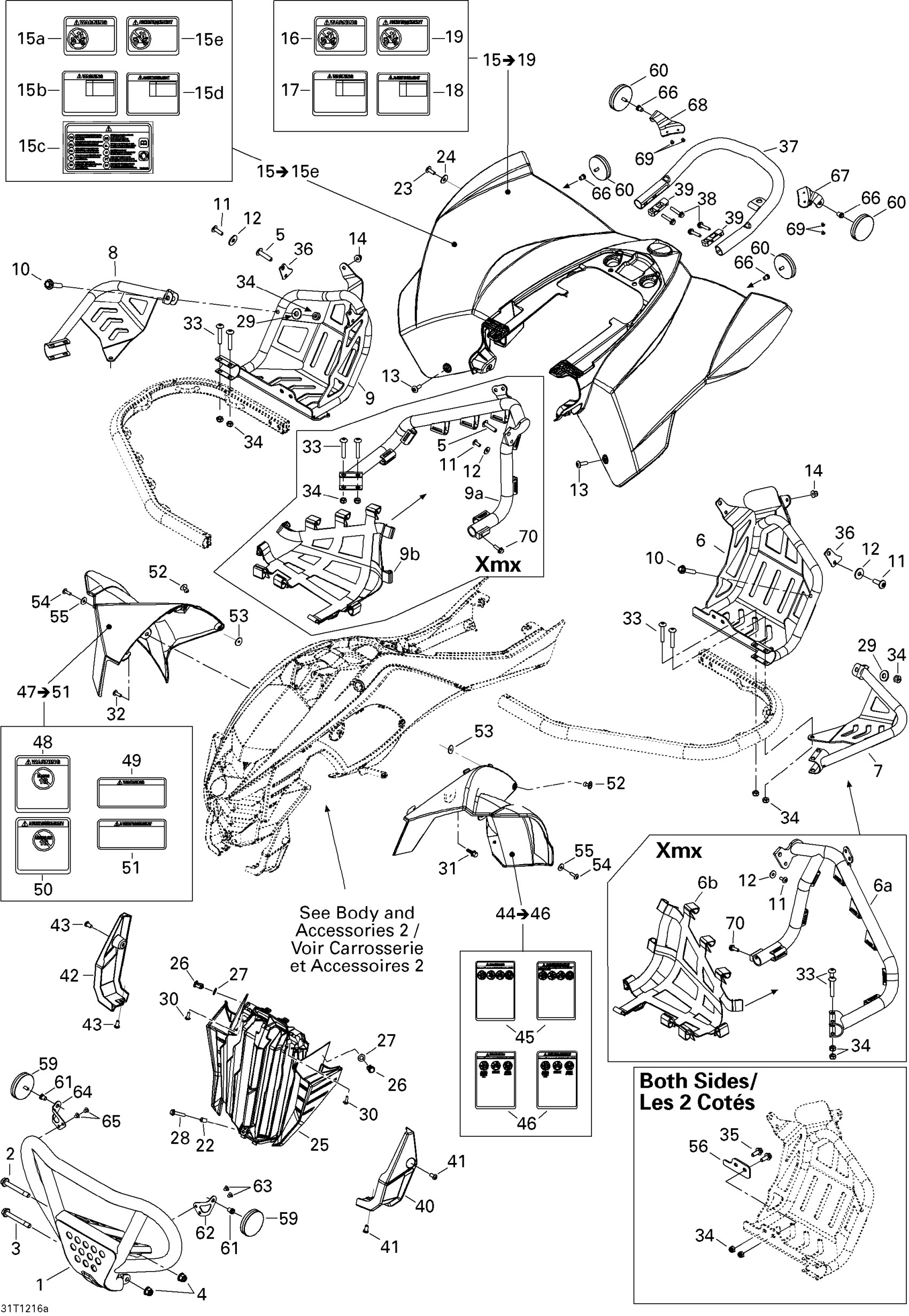

Can-Am DS 450EFI Xxc, Xmx, 2015 09- Body And Accessories 1 Diagram

#

Description
Price

1

FRONT BUMPER - Call your local BRP dealership

705002767

Unavailable

2

Hex Flange Screw M8 X 65, SCOTCH GRIP - Call your local BRP dealership

250000302

Unavailable

3

Hex. Flange Screw M8 X 75, Scotch Grip

207587534

$4.44

4

Hex. Flange Nut M8

233181434

$2.11

5

Torx Truss Screw M8 X 35

250000256

$1.15

6

LH PROTECTOR - Call your local BRP dealership

705003140

Unavailable

6a

LH PROTECTOR - Call your local BRP dealership | Xmx

705003807

Unavailable

6b

LH NET - Call your local BRP dealership | Xmx

705003820

Unavailable

7

PROTECTOR - Call your local BRP dealership

705003237

Unavailable

8

PROTECTOR - Call your local BRP dealership

705003238

Unavailable

9

RH PROTECTOR - Call your local BRP dealership

705003141

Unavailable

9a

RH PROTECTOR - Call your local BRP dealership | Xmx

705003817

Unavailable

9b

RH NET - Call your local BRP dealership | Xmx

705003821

Unavailable

10

FLANGED HEX. SCREW M8 X 40, SCOTCH GRIP - Call your local BRP dealership

207584084

Unavailable

11

Torx Truss Screw M6 X 16

250000721

$1.69

12

Stainless Steel Flat Washer

234062670

$2.11

13

Torx Truss Screw M6 X 16

250000721

$1.69

14

Elastic Stop Nut M6

232561434

$1.99

15

REAR FENDER KIT - Call your local BRP dealership | Includes 15 to 15e, Xxc Non Europe

715001341

Unavailable

16

WARNING DECAL, PASSENGER - Call your local BRP dealership

704900005

Unavailable

17

WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership

704901365

Unavailable

18

Warning Decal Tire Pressure, French

704901395

Unavailable

19

Warning Decal, Passenger, French | French Version

704900006

Unavailable

15

Rear Fender Kit | Includes 15 to 15e, Xmx Non Europe

715001345

$204.99

15a

WARNING DECAL, PASSENGER - Call your local BRP dealership

704900005

Unavailable

15b

WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership | All Xmx Except CE

704902001

Unavailable

15c

International Decal, Multilingual | International

704901394

Unavailable

15d

WARNING DECAL, PASSENGER, FRENCH - Call your local BRP dealership | All Xmx Except CE

704902002

Unavailable

15e

Warning Decal, Passenger, French | French Version

704900006

Unavailable

22

Spacer

707000058

$13.49

23

Torx Screw M6 X 16

250000223

$2.11

24

Stainless Steel Flat Washer

234062670

$2.11

25

Radiator Protector Ass'y

705004009

$38.99

26

Tuflok Plastic Rivet

293150230

$1.47

27

Washer

506151252

$3.17

28

Hex. Flange Screw M6 X 25

207662534

$2.11

29

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

30

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

31

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

32

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

33

Torx Truss Screw M8 X 50

250000761

$7.51

34

Elastic Stop Nut

232581434

$2.00

35

Hex. Flange Screw

207682034

$2.11

36

SPACER - Call your local BRP dealership

705003377

Unavailable

37

REAR BUMPER - Call your local BRP dealership

705002769

Unavailable

38

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

39

CLAMP - Call your local BRP dealership

705002913

Unavailable

40

LH RADIATOR MOULDING - Call your local BRP dealership

705002514

$19.49

41

SOCKET SCREW M6 X 12 - Call your local BRP dealership

250000339

Unavailable

42

RH RADIATOR MOULDING - Call your local BRP dealership

705002515

Unavailable

43

SOCKET SCREW M6 X 12 - Call your local BRP dealership

250000339

Unavailable

44

KIT FR. FENDER - Call your local BRP dealership | Includes 44 to 46

715002376

Unavailable

45

Warning Decal, Death And Injuries

704900002

Unavailable

46

Warning Decal, Death And Injuries | Europe

704901875

Unavailable

47

RH FRONT FENDER KIT, BLACK - Call your local BRP dealership | Includes 47 to 51

715000569

Unavailable

48

Warning Decal, Under 16 Years Old

704900011

Unavailable

49

WARNING DECAL, PERFORMANCE - Call your local BRP dealership

704901133

Unavailable

50

Warning Decal, Under 16 Years Old | French Version

704900012

Unavailable

51

Warning Decal, Performance, French

704901135

Unavailable

52

Pop Rivet 3/16"

293150123

$4.29

53

Washer

503191273

$1.35

54

Torx Screw M6 X 20

250000722

$1.68

55

Stainless Steel Flat Washer

234062670

$2.11

56

Spacer

705003378

Unavailable

59

Amber Reflector | Except Europe Model

705011222

$14.49

60

Red Reflector

705011221

$14.49

61

Insert M5 X 0.8

293450268

$2.09

62

LH REFLECTOR SUPPORT - Call your local BRP dealership

705002655

Unavailable

63

Stavex Rivet

293150144

$0.82

64

RH REFLECTOR SUPPORT - Call your local BRP dealership

705002656

Unavailable

65

Stavex Rivet

293150144

$0.82

66

Insert M5 X 0.8

293450268

$2.09

67

LH SUPPORT - Call your local BRP dealership

705002911

Unavailable

68

RH SUPPORT - Call your local BRP dealership

705002912

Unavailable

69

Stavex Rivet

293150144

$0.82

70

Hex. Flange Screw M6 X 20

207662034

$2.11
