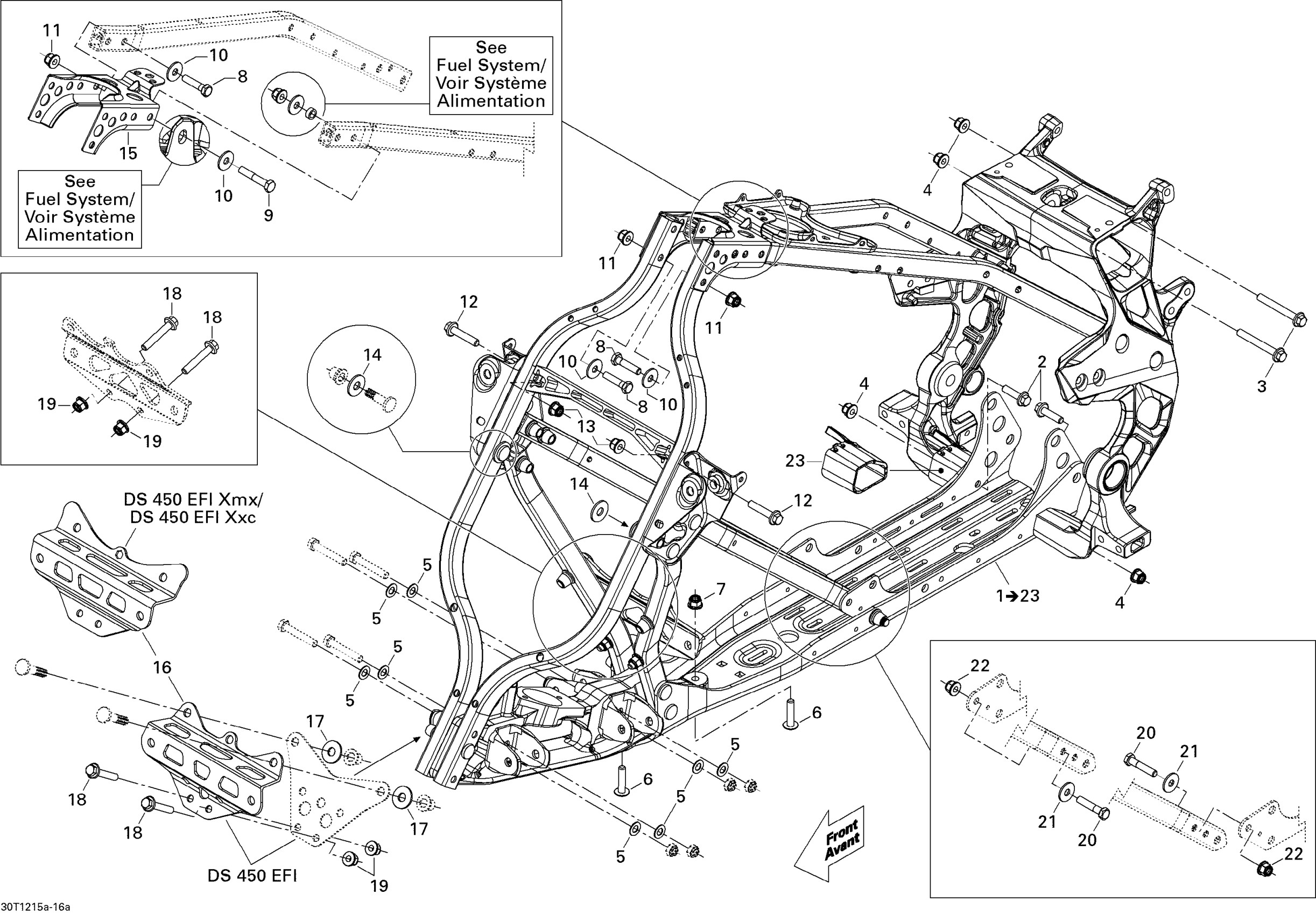

Can-Am DS 450EFI STD, 2015 09- Frame, System 1 Diagram

#

Description
Price

1

FRAME ASS'Y - Call your local BRP dealership | Includes 1 to 16

705202639

Unavailable

2

Hex. Flange Screw M8 X 30

207683034

$4.44

3

Hex. Flange Screw M8 x 65

207686534

$2.11

4

Hex. Flange Elastic Nut M8

233281434

$2.11

5

Washer

506151252

$3.17

6

TORX TRUSS SCREW M8 X 35 - Call your local BRP dealership

250000316

Unavailable

7

Hex. Flange Elastic Nut M8

233281434

$2.11

8

Hex. Screw M8 X 35

207083544

$1.15

9

Hex. Screw M8 X 45

207084544

$1.48

10

Flat Washer 8 mm

234082410

$1.47

11

Hex. Flange Elastic Nut M8

233281434

$2.11

12

Hex. Flange Screw M8 X 40

207684034

$2.11

13

Hex. Flange Elastic Nut M8

233281434

$2.11

14

Flat Washer M10 | 4X4

250200014

$1.49

15

PLATE - Call your local BRP dealership

705201072

Unavailable

16

Front Braket A-Arm

705201086

Unavailable

17

Flat Washer M10 | 4X4

250200014

$1.49

18

HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership

207684534

Unavailable

19

Hex. Flange Elastic Nut M8

233281434

$2.11

20

Hex. Screw M8 X 40

207084044

$1.15

21

Flat Washer 8 mm

234082410

$1.47

22

Hex. Flange Elastic Nut M8

233281434

$2.11

23

GUARD - Call your local BRP dealership

705500931

Unavailable
