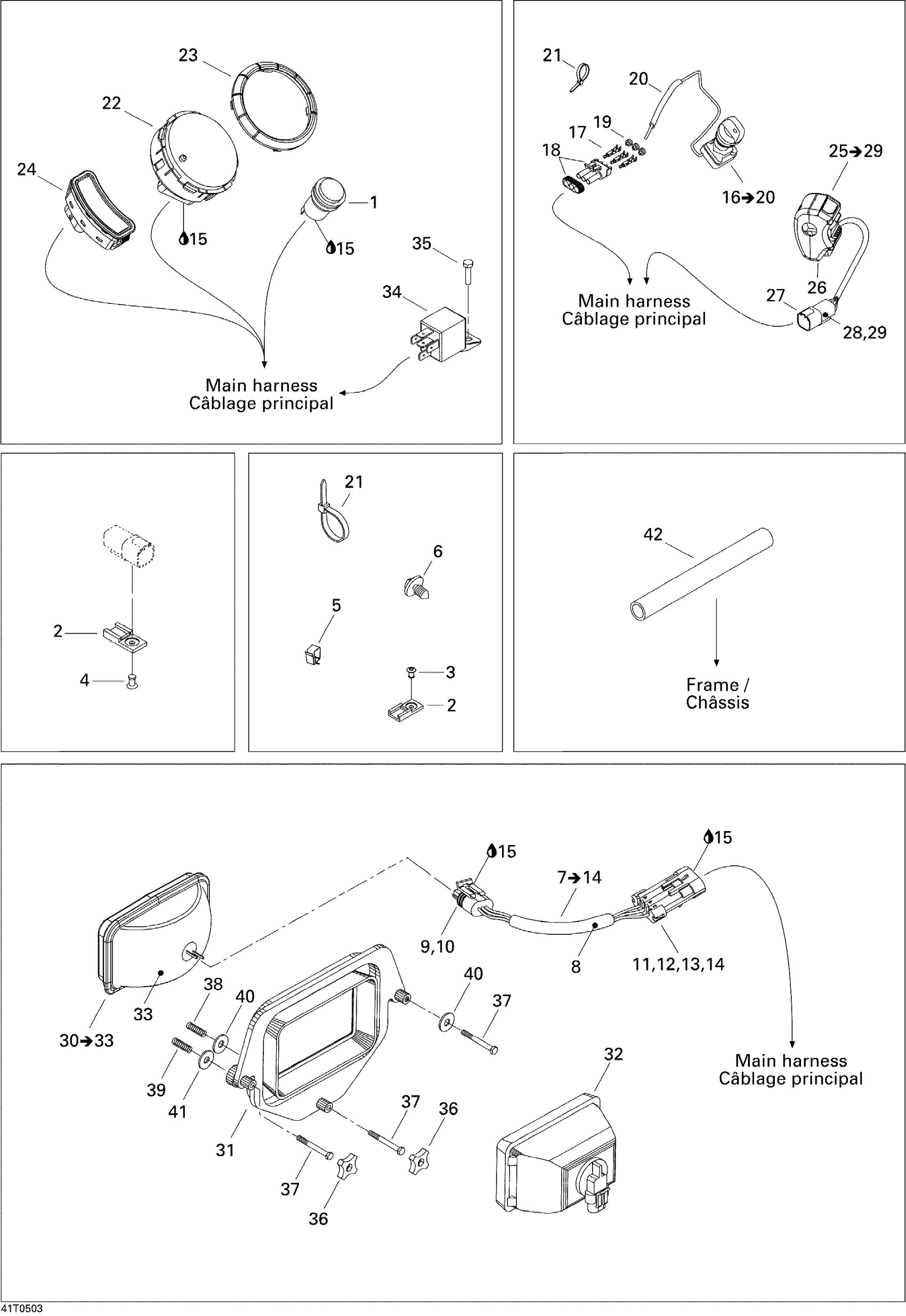

Can-Am Traxter XL, 2005 10- Electrical Accessories Diagram

#

Description
Price

1

Outlet Power Kit, 12 Volts

861507200

$36.99

2

Clip

270000141

$11.49

3

Pop Rivet 3/16"

390402400

$0.35

4

Pop Rivet 3/16"

390402200

$0.35

5

Clip

414227300

$1.67

6

Mount Dart

293730040

$1.04

7

Beam Adaptor Ass'y | Includes 8 to 15

710000720

Unavailable

8

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

9

Female Terminal

278001114

$3.19

10

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

Unavailable

11

Seal

710000643

$4.39

12

Lock

710000642

$4.59

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

16

Ignition Switch Ass'y | Includes 17 to 21

710000192

Unavailable

16

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

17

Female Terminal

278000223

$3.19

18

Male Housing, 3 Circuits

278000273

$9.59

19

Wire Seal

278000218

$4.39

20

Protector Tube

710000171

Unavailable

21

Tie Wrap 368 mm

293750008

$1.04

21

Tie Wrap 142 mm

293750002

$1.25

21

Tie-Rap 180 mm

414115200

$0.11

22

Speedometer

710000674

Unavailable

23

TRIM RING - Call your local BRP dealership

710000353

Unavailable

24

LH WARNING LIGHT - Call your local BRP dealership

710000592

Unavailable

25

Multi-Fonction Switch | Includes 25 to 29

710000015

Unavailable

26

BACK COVER - Call your local BRP dealership

710000173

Unavailable

27

Male Terminal Housing, 6 Circuits

409015200

Unavailable

28

Male Lock, 6 Circuits

409014600

Unavailable

29

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

30

HEADLAMP ASS'Y - Call your local BRP dealership | Includes 31 to 34

710000174

Unavailable

31

LAMP SUPPORT - Call your local BRP dealership

705000283

Unavailable

32

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

33

BULB - Call your local BRP dealership

710000176

Unavailable

34

Relay | DS 650 X

710010053

$23.49

35

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

36

Handle

572106600

$10.33

37

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

38

SPRING - Call your local BRP dealership

710000285

Unavailable

39

Spring

517168600

$7.39

40

Flat Washer 4 mm, Stainless

234042600

$1.15

41

Flat Washer 4 mm

234040600

$0.55

42

Tubing 10 MM 1000MM Long

219704407

$2.79

42

Tubing 25 MM 1000MM Long

219704402

$15.99
