Description

Price

2

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

3

Hex. Screw M4 X 25

207142544

$2.00

4

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

5

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

7

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44

8

Hex. Flange Screw M6 X 16

207661644

$0.74

10

Hex. Flange Screw M6 X 20

207662084

$1.69

12

Hex. Flange Screw M6 X 16

210261650

$1.67

13

Hexagonal Head Screw

210262050

$2.11

14

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

15

Flasher Unit

710003239

$78.49

18

Flat Washer

224061121

$0.53

19

Domed Nut M6

232361493

$2.11

20

Elastic Stop Nut M4

232541414

$0.58

21

Elastic Stop Nut M6

232561414

$0.55

22

Hex. Flange Elastic Nut M5

233251414

$1.04

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

24

Flat Washer M5

234051410

$0.53

25

Stainless Steel Flat Washer

234062670

$2.11

26

Lock Washer Helical M6

234161601

$1.15

29

External Serrated Lock Washer 6 mm

234461608

$1.15

31

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

Unavailable

32

Phillips Screw K40 X 16

250000723

$0.98

34

Torx Screw M6 X 16

250000223

$2.11

37

Clip

270000141

$11.49

38

Wire Seal

278000216

$3.19

39

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

41

Tie Wrap 94 mm | 4X4

293750001

$1.03

42

Speedometer

710005087

$399.99

44

Housing

710003006

$8.79

45

Tie Wrap 368 mm

293750008

$1.04

46

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

47

Battery Bolt Kit

250000282

$7.29

50

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

51

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

52

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

53

LH Front Facia

705004508

$51.99

54

CAP GUARD - Call your local BRP dealership | Europe Models

710001826

Unavailable

57

Tie-rap 627 mm

293750041

$0.93

59

Rubber Bumper

293830005

$8.09

61

Pop Rivet 3/16"

390402300

$0.75

62

Washer | DS 650 X

391301600

$0.48

63

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

64

Tie-Rap 180 mm

414115200

$0.11

94

Clip

414227300

$1.67

95

Washer

503175800

$3.28

97

Spacer

517203200

$16.18

98

Open Clamp

518321570

$7.69

100

BRP Logo13 mm

704904615

$13.49

101

Not Available As Spare Parts

XXX

Unavailable

103

Red Reflector

705011221

$14.49

104

Stopper Rubber

705014429

$5.95

106

Painted Headlamp Support

705004309

$16.99

107

RH Front Facia

705004509

$51.99

108

Plate Support | Europe

708300553

$24.49

109

SUPPORT - Call your local BRP dealership

709200284

Unavailable

110

Flasher | Europe Models, Includes 60 To 61

710000546

Unavailable

111

Flasher | Europe Models, Includes 60 To 61

710000547

Unavailable

113

Black, Electronic Key

710000817

$63.49

113

Grey, Electronic Key

710002183

$63.49

114

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

115

Horn

710004791

$38.99

116

Clip

710000992

$4.29

117

Trim Ring Ass'y

710001183

$19.99

121

Day Light

710001042

$85.99

122

RH Low Front Housing

710001081

$19.99

122

LH Low Front Housing

710001083

$19.99

123

RH Low Rear Housing

710001082

$12.99

123

LH Low Rear Housing

710001084

$12.99

126

RH High Front Housing

710001085

$19.99

126

LH High Front Housing

710001087

$19.99

127

RH High Rear Housing

710001086

$12.99

127

LH High Rear Housing

710001088

$12.99

130

LH Low Light Support

710001037

$9.09

130

RH Low Light Support

710001094

$9.09

131

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

131

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

132

LH High Light Support

710001036

$5.29

132

RH High Light Support

710001115

$5.29

133

Setting Screw

710001147

$12.71

135

Trim Ring Ass'y

710001183

$19.99

137

DC Outlet

710001248

$37.99

138

Starter Relay

710007777

$48.49

140

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

142

Ground Cable

710004382

$19.99

149

Positive Cable

710004376

$48.99

151

POSITIVE CABLE - Call your local BRP dealership

710001750

Unavailable

154

Light Harness

710005944

$30.99

161

Ignition Switch

710008400

$78.49

162

Fixation Plate

710002404

$9.39

166

BRACKET - Call your local BRP dealership

710002567

Unavailable

167

Battery Cable Cap

710006729

$7.20

168

Rectifier Support

710002587

$15.99

169

Brake Harness | Includes 1 to FRV2

710004324

$30.99

171

License Plate Light | Europe

710005563

$126.99

175

Harness Ass'y | Includes 1 to R1, Europe

710002804

Unavailable

176

Tie-Rap Clip

710002896

$4.39

183

Multi-Function Handle

710004040

$179.99

183

Handle Kit | STD

703500919

$74.99

187

Battery Support

710006561

$50.99

200

Main Harness

710005005

$949.99

202

Halogen Bulb

415129249

$41.49

203

Bulb

520000758

$9.10

204

Flasher | Europe

710002964

$35.99

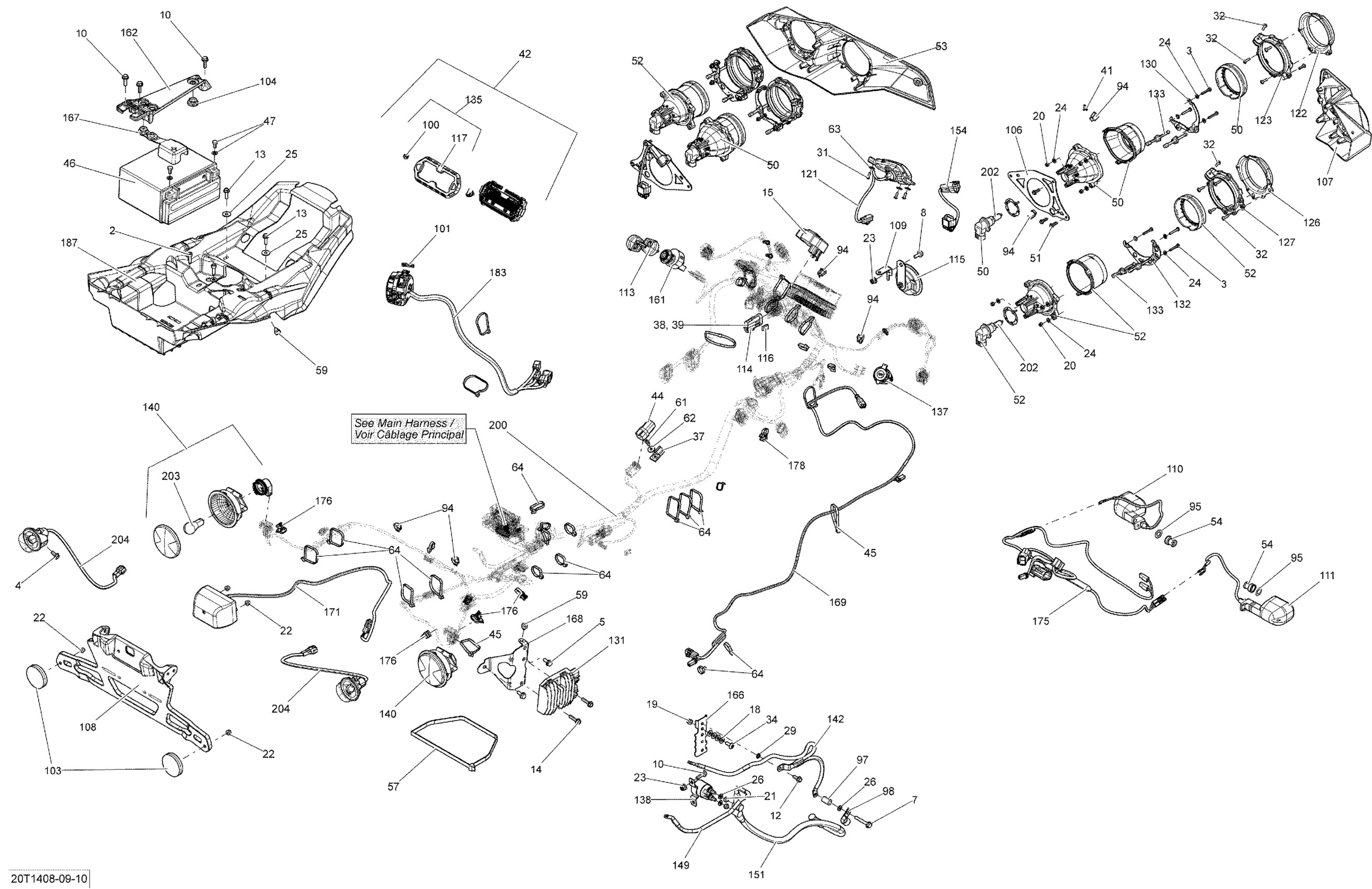

Can-Am Renegade 500EFI STD, 2014 10- Electrical System Diagram
