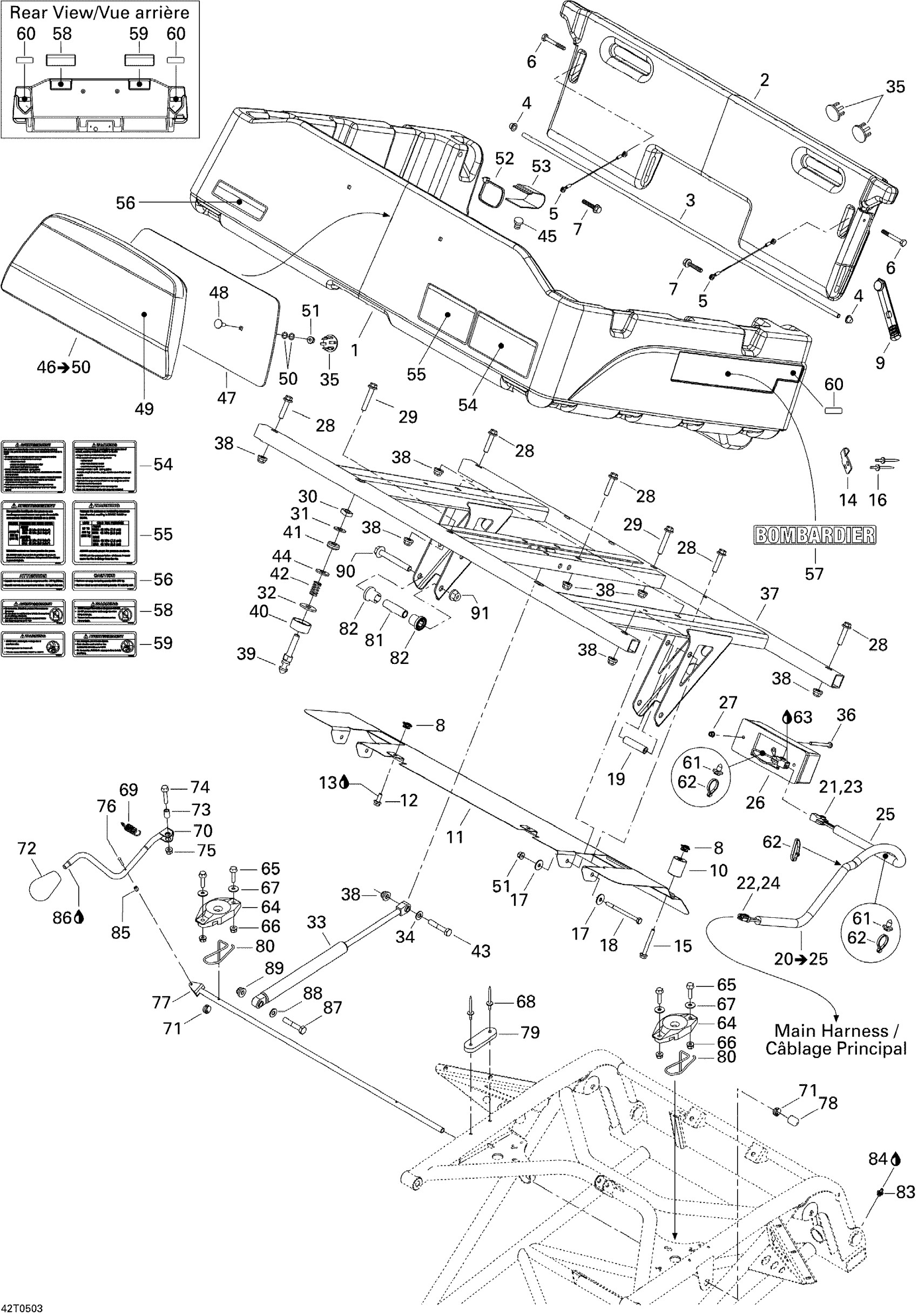

Can-Am Traxter XL, 2005 09- Rear Cargo Box Diagram

#

Description
Price

1

Box

705001600

Unavailable

2

Panel

705000220

Unavailable

3

Pivot Tube, black

705000294

Unavailable

4

PUSHNUT CAP 3/8 - Call your local BRP dealership

293000097

Unavailable

5

PANEL CABLE - Call your local BRP dealership

705000296

Unavailable

6

HEX. PLASTITE SCREW M6.81 X 45 - Call your local BRP dealership

243164540

Unavailable

7

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

8

JACK NUT M6 - Call your local BRP dealership

732610057

Unavailable

9

Panel Bracket

705000297

Unavailable

10

SPACER - Call your local BRP dealership

705000114

Unavailable

11

Heat Shield

705001227

Unavailable

12

Hex. Flange Screw M6 X 16

207661644

$0.74

13

Loctite 609, 10 ml

413703100

$26.99

14

LATCH SUPPORT - Call your local BRP dealership

291000166

Unavailable

15

Hex. Flange Screw M6 X 50

207665044

$4.12

16

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

17

Flat Washer

224061201

$1.37

18

Hex. Screw M6 X 80

207068044

$4.12

19

Bushing

705001358

Unavailable

20

Harness | Includes 20 to 25

710000721

Unavailable

21

Male Terminal

515175232

$1.58

22

Female Terminal

515175231

$4.39

23

Male Housing, 3 Circuits

515175494

$16.18

24

Female Housing, 3 Circuits

515175495

$16.18

25

Tubing 6 Mm 3000Mm Long

219704425

$13.75

26

Tail Light Housing Ass'y | Includes 17 to 20

710000711

$95.99

27

Hex. Flange Elastic Nut M5

233251414

$1.04

28

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

29

Hex. Flange Screw M8 X 50

207685044

$1.69

30

Square Nut M10

232802412

Unavailable

31

Washer

503175800

$3.28

32

WASHER - Call your local BRP dealership

506148100

Unavailable

33

Gas Shock

705000261

Unavailable

34

Flat Washer 8 mm

234081410

$0.83

35

PROTECTOR CAP - Call your local BRP dealership

293000096

Unavailable

36

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

37

Box Support, Black

705001279

Unavailable

38

Hex. Flange Elastic Nut M8

233281414

$1.47

39

LATCH STUD - Call your local BRP dealership

293750032

Unavailable

40

Rubber Pad

293830025

Unavailable

41

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

42

Spring

705000307

Unavailable

43

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

44

Flat Washer M10 | 4X4

250200014

$1.49

45

Cap

705000323

Unavailable

46

BACKREST COVER ASS'Y - Call your local BRP dealership | Includes 46 to 50

708000079

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

CARRIAGE BOLT M6 X 30

207763060

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Locking Nut

250100020

Unavailable

51

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

52

Tie Wrap 368 mm

293750008

$1.04

53

Not Available As Spare Part - Friction Washer

Unavailable

54

Warning Label, Cargo | English Version

704900926

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

WARNING LABEL, TIRE PRESSURE - Call your local BRP dealership | English Version

704900925

Unavailable

55

Not Available As Spare Part - Friction Washer

Unavailable

56

WARNING LABEL, BOX CAPACITY - Call your local BRP dealership | English Version

704900443

Unavailable

56

Warning Label, Box Capacity | French Version

704900445

Unavailable

57

Bombardier Label

704900136

Unavailable

58

WARNING LABEL, FLAMABLE - Call your local BRP dealership | English Version

704900759

Unavailable

58

WARNING LABEL, FLAMABLE - Call your local BRP dealership | French Version

704900760

Unavailable

59

WARNING LABEL, PASSENGER - Call your local BRP dealership | English Version

704900757

Unavailable

59

WARNING LABEL, PASSENGER - Call your local BRP dealership | French Version

704900758

Unavailable

60

REAR REFLECTOR - Call your local BRP dealership

704900128

Unavailable

61

Mount Dart

293730040

$1.04

62

Tie Wrap 142 mm

293750002

$1.25

63

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

64

Latch Base

708000034

Unavailable

65

Hex. Flange Screw M6 X 25

207662544

$0.64

66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

67

Flat Washer M6, Stainless

234062600

$0.77

68

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

69

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

Unavailable

70

Lever, black

705000253

Unavailable

71

SLEEVE - Call your local BRP dealership

705000292

Unavailable

72

LEVER BUTTON - Call your local BRP dealership

705500022

Unavailable

73

Sleeve

293900078

$13.71

74

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

75

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

76

ROUND HEAD RIVET - Call your local BRP dealership

293150084

Unavailable

77

CENTRAL TUBE, BLACK - Call your local BRP dealership

705000289

Unavailable

78

CAP - Call your local BRP dealership

705000300

Unavailable

79

Rubber Support

705000299

Unavailable

80

SPRING - Call your local BRP dealership

705000259

Unavailable

81

Internal Bushing

706200061

Unavailable

82

Cushion

706200063

Unavailable

83

Grease Fitting

408200700

$3.49

84

Synthetic Grease, 400 G

293550010

Unavailable

85

RING HOLDER - Call your local BRP dealership

705000305

Unavailable

86

Loctite 243, 10 ml

293800060

$21.49

87

Hex. Screw M8 X 45

207084544

$1.48

88

Flat Washer 8 mm

234081410

$0.83

89

Hex. Flange Elastic Nut M8

233281414

$1.47

90

Hex. Flange Screw M10 X 70

207607046

$2.96

91

Hex. Flange Nut M10

233001414

Unavailable
