Description

Price

1

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

2

Hex. Flange Screw M6 X 16

207661654

$2.11

3

Hex. Flange Screw M6 X 20

207662084

$1.69

4

Hex. Flange Screw M6 X 25

207662554

$1.48

5

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

6

Hex. Flange Screw M6 X 35

207663544

$0.90

7

Hex. Flange Screw M6 X 45

207664544

$1.46

8

Hex. Flange Screw M6 X 50

207665044

$4.12

9

Hex. Flange Screw M8 X 20

207682044

$1.15

10

Hex. Flange Screw M8 X 25

207682544

$1.35

11

Carriage Bolt M6 X 30

207763044

$4.44

12

Hex. Flange Screw M6 X 12

210261250

$1.90

13

Flat Washer

224061201

$1.37

14

Square Nut M6

232862412

$1.49

15

Flange Elastic Nut M5

233251434

$2.00

16

Flange Elastic Nut M6

233261434

$4.44

17

Hex. Flange Elastic Nut M8

233281434

$2.11

18

Flat Washer 6 mm

234062410

$0.77

19

Stainless Steel Flat Washer

234062670

$2.11

20

Torx Screw M6 X 20

250000712

$2.11

21

Torx Screw M8 X 20, Scotch Grip

250000740

$2.53

22

Torx Screw M6 X 20

250000722

$1.68

23

Torx Truss Screw M6 X 16

250000721

$1.69

24

Torx Screw K50 X 16

250000720

$1.69

25

Torx Screw M6 X 16

250000755

$0.87

26

Torx Screw M6 x 25

250000284

$2.11

27

Torx Screw M6 X 12

250000454

$4.44

28

Ball Head Stud

250300039

$7.51

29

Tuflok Plastic Rivet

293150230

$1.47

30

Threaded Insert M6 X 1.0

250100242

Unavailable

31

Rubber Bumper

293830005

$8.09

32

Pop Rivet 3/16"

390402400

$0.35

33

Clip

414479100

$1.90

34

Insert

293450275

$12.99

35

Oval Washer

705000321

$5.61

36

PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow

705002946

Unavailable

36

Black, LH Lateral Panel

705002958

$43.99

36

PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow

705002949

Unavailable

36

Black, RH Side Panel

705002959

$43.99

37

LH Rear Body Panel Cap

705017923

$13.99

38

Dashboard

705003556

$46.99

39

LH Grille

705008137

$20.99

39

LEFT GRILL - Call your local BRP dealership

705008139

Unavailable

40

RH Grille

705008138

$20.99

40

RIGHT GRILL - Call your local BRP dealership

705008140

Unavailable

41

Support

705002282

$31.99

42

Footrest

705002326

$43.99

43

Hook

705002342

$16.99

44

Rear Carpet

705002343

$19.49

45

Cap

705002353

$15.49

46

Red Reflector

705011221

$14.49

47

Amber Reflector | Except Europe Model

705011222

$14.49

48

RH Rear Body Panel Cap

705017924

$15.99

49

Engine Cover Support

705011461

$10.49

50

Grommet

705003264

$4.09

51

Bumper Support

705003505

$39.99

52

Bent Sectional Tube

705016093

$104.99

53

Front Bent Sectional Tube

705016094

$104.99

54

Bracket

705003599

$24.49

55

Engine Cover Support

705003646

$9.23

56

Front Facia

705003948

$55.99

57

LH Footboard

705004176

$49.99

58

RH Footboard

705004177

$49.99

59

YELLOW FRONT FENDER KIT - Call your local BRP dealership

715002157

Unavailable

59

Deep Black Front Fender Kit | Xxc Model

715002154

$139.99

59

Deep Black Front Fender Kit | Model-XXC Europe

715002155

$139.99

60

LH INNER FENDER - Call your local BRP dealership

705004307

$12.99

61

RH INNER FENDER - Call your local BRP dealership

705004308

Unavailable

62

Lever Indicator | 1000

705004416

$17.49

63

RH Footboard/Fender

705004729

$134.99

64

LH Footboard/Fender

705004730

$134.99

65

LH Rear Facia | North America, International

705004731

$19.99

65

LH Rear Facia | Europe

705004927

$15.99

66

RH Rear Facia | North America, International

705004732

$19.99

66

RH Rear Facia | Europe

705004926

$15.99

67

Front Bumper Plate

705004850

$19.99

70

Engine Cover

705004966

$14.49

71

Panel Extension

705004988

$15.49

72

Front Bumper

705011635

$280.99

73

Reflective Sheet

705005840

$9.39

74

Protective Plate Kit

715002374

$64.49

75

Skid Plate | XXC

705007820

$20.49

76

Ens Protec Cen.*Kit Cent. Skid | XXC

715002078

$138.99

77

Fuse Holder

710002482

$8.99

78

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

79

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

80

Spacer

705005809

$12.99

81

Yellow Rear Fender Kit | North America

715001881

$409.99

81

REAR FENDER KIT - Call your local BRP dealership | Xxc Model North America

715001887

Unavailable

81

Deep Black Rear Fender Kit | Model-XXC International

715002164

$409.99

81

Black Rear Fender Kit | Model-XXC Europe

715002165

$409.99

82

Oblong Grommet

705003668

$5.79

83

Yellow Central Pannel Kit

715001493

$104.99

83

YELLOW CENTRAL PANNEL KIT - Call your local BRP dealership | Model-International

715002171

Unavailable

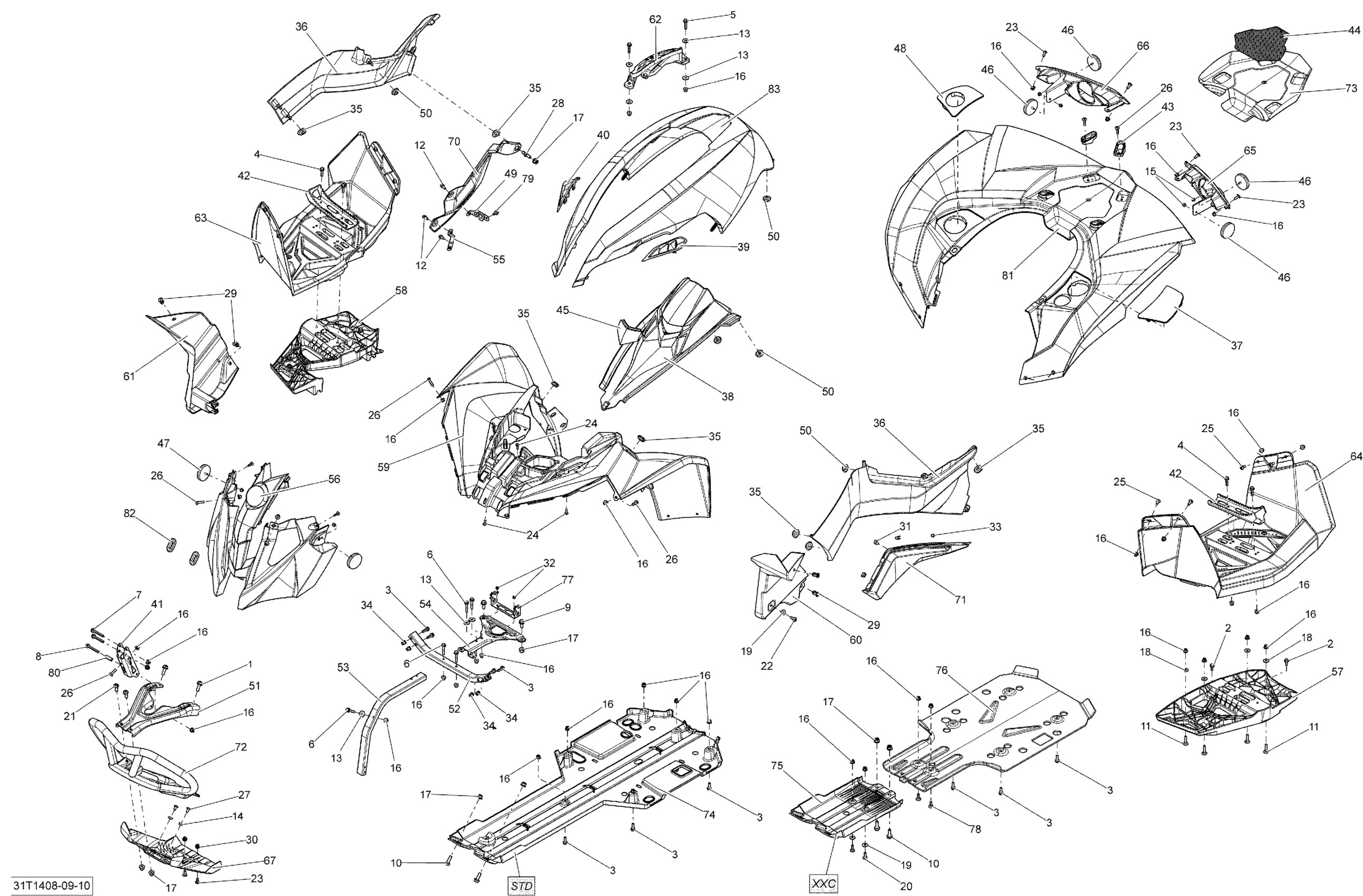

Can-Am Renegade 1000 EFI STD, XXC, 2014 09- Body And Accessories Diagram

Hex. Flange Screw M8 X 25, Scotch Grip

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Hex. Flange Screw M6 X 35

Hex. Flange Screw M6 X 45

Hex. Flange Screw M6 X 50

Hex. Flange Screw M8 X 20

Hex. Flange Screw M8 X 25

Carriage Bolt M6 X 30

Hex. Flange Screw M6 X 12

Flat Washer

Square Nut M6

Flange Elastic Nut M5

Flange Elastic Nut M6

Hex. Flange Elastic Nut M8

Flat Washer 6 mm

Stainless Steel Flat Washer

Torx Screw M6 X 20

Torx Screw M8 X 20, Scotch Grip

Torx Screw M6 X 20

Torx Truss Screw M6 X 16

Torx Screw K50 X 16

Torx Screw M6 X 16

Torx Screw M6 x 25

Torx Screw M6 X 12

Ball Head Stud

Tuflok Plastic Rivet

Threaded Insert M6 X 1.0

Rubber Bumper

Pop Rivet 3/16"

Clip

Insert

Oval Washer

PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow

Black, LH Lateral Panel

PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow

Black, RH Side Panel

LH Rear Body Panel Cap

Dashboard

LH Grille

LEFT GRILL - Call your local BRP dealership

RH Grille

RIGHT GRILL - Call your local BRP dealership

Support

Footrest

Hook

Rear Carpet

Cap

Red Reflector

Amber Reflector | Except Europe Model

RH Rear Body Panel Cap

Engine Cover Support

Grommet

Bumper Support

Bent Sectional Tube

Front Bent Sectional Tube

Bracket

Engine Cover Support

Front Facia

LH Footboard

RH Footboard

YELLOW FRONT FENDER KIT - Call your local BRP dealership

Deep Black Front Fender Kit | Xxc Model

Deep Black Front Fender Kit | Model-XXC Europe

LH INNER FENDER - Call your local BRP dealership

RH INNER FENDER - Call your local BRP dealership

Lever Indicator | 1000

RH Footboard/Fender

LH Footboard/Fender

LH Rear Facia | North America, International

LH Rear Facia | Europe

RH Rear Facia | North America, International

RH Rear Facia | Europe

Front Bumper Plate

Engine Cover

Panel Extension

Front Bumper
