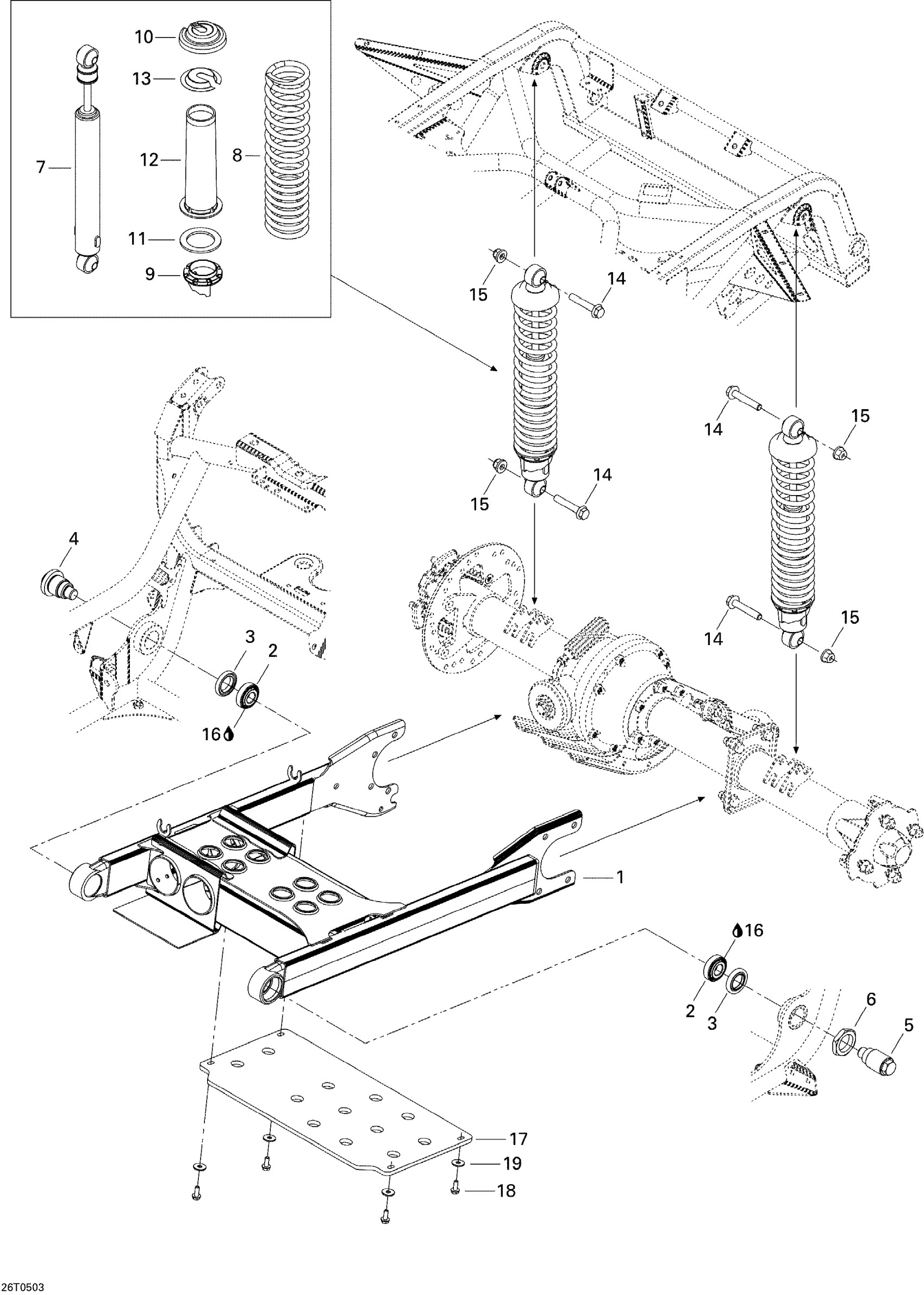

Can-Am Traxter XL, 2005 08- Rear Suspension Diagram

#

Description
Price

1

SWING ARM, BLACK - Call your local BRP dealership

706000295

Unavailable

2

CONE BEARING - Call your local BRP dealership

706000169

Unavailable

3

OIL SEAL - Call your local BRP dealership

706000010

Unavailable

4

RH Pivot Bolt

706000092

Unavailable

5

LH PIVOT BOLT - Call your local BRP dealership

706000093

Unavailable

6

HEX. JAM NUT - Call your local BRP dealership

706000006

Unavailable

7

Rear Shock

706000377

Unavailable

8

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706000398

Unavailable

9

Adjuster Ring

706002356

$18.49

10

Spring Stopper

706200881

$12.99

11

SPRING SEAT - Call your local BRP dealership

706000533

Unavailable

12

PROTECTOR - Call your local BRP dealership

503190436

Unavailable

13

Cap

706200785

$4.69

14

Hex. Flange Screw M10 X 55

207605544

$3.38

15

Hex. Flange Elastic Nut M10

233201414

$1.58

16

Synthetic Grease, 400 G

293550010

Unavailable

17

Protector Plate

706200293

Unavailable

18

Hex. Flange Screw M6 X 16

210261650

$1.67

19

Flat Washer

250200082

$0.42
