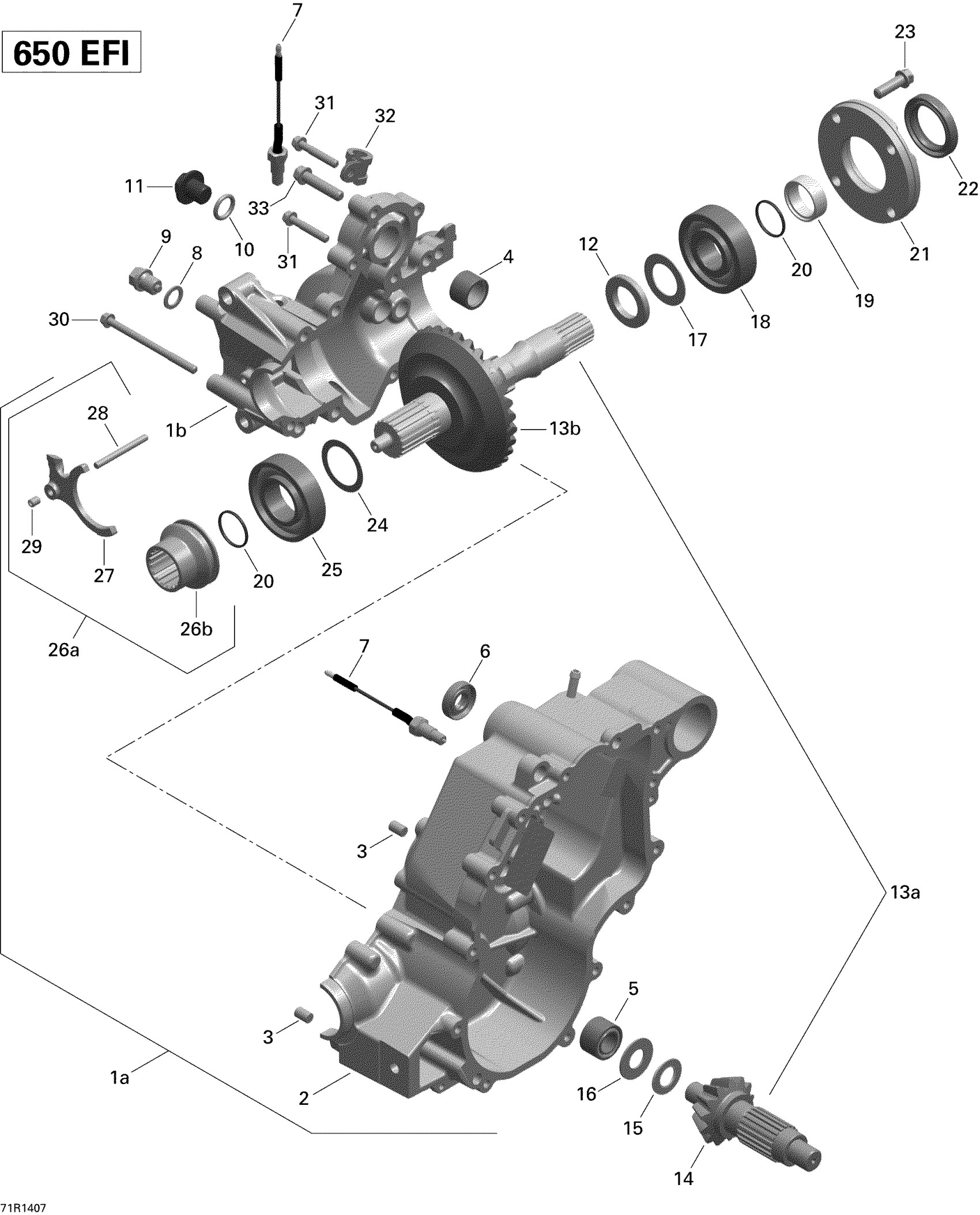

Can-Am Outlander MAX 650EFI STD, DPS, X, XT-P 2014 01- Gear Box Output Shaft Diagram

#

Description
Price

1a

Gear Housing Ass'y | Includes 1a to 7

420686205

$929.99

1b

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Center Pin 8 X 12

420632010

$4.01

4

Needle Bushing

420832240

$20.99

5

Needle Bushing

420232085

$37.99

6

Oil Seal

420250450

$17.04

7

3 Position Switch

420640192

$42.49

8

Copper Washer

420250640

$0.98

9

Magnetic Drain Plug M12

420241787

$17.99

10

O-Ring

420650350

$12.11

11

Plug Screw M14 X 1.5

420241662

$15.81

12

Distance Ring

420247772

$20.99

13a

Drive Ass'y | Includes 13a to 14

420635557

$444.99

13b

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Axial Needle Bearing

420632300

$18.49

16

Thrust Washer Set, MAG Side

420281306

$61.49

17

Washer Thrust Set

420281300

$95.49

18

Ball Bearing

420932822

$30.49

19

Distance Ring

420247114

Unavailable

20

O-Ring

420631612

$4.33

21

Bearing Cover

420611444

$48.49

22

Oil Seal

420950089

$19.49

23

Torx Flange Screw M8 X 25

420440372

$4.12

24

Shim 0.5

420944584

$4.12

25

Ball Bearing

420932580

$10.33

26a

Shifting Sleeve Kit | Includes 26a to 29

420257676

Unavailable

26b

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

SET SCREW M6 X 8 - Call your local BRP dealership

420841771

Unavailable

30

Torx Flange Screw M6 X 85

420641228

$7.41

31

Torx Flange Screw M6 X 35

420641258

$3.38

32

CABLE CLAMP - Call your local BRP dealership

420251690

Unavailable

33

Torx Flange Screw M8 X 35

420641188

$7.41
