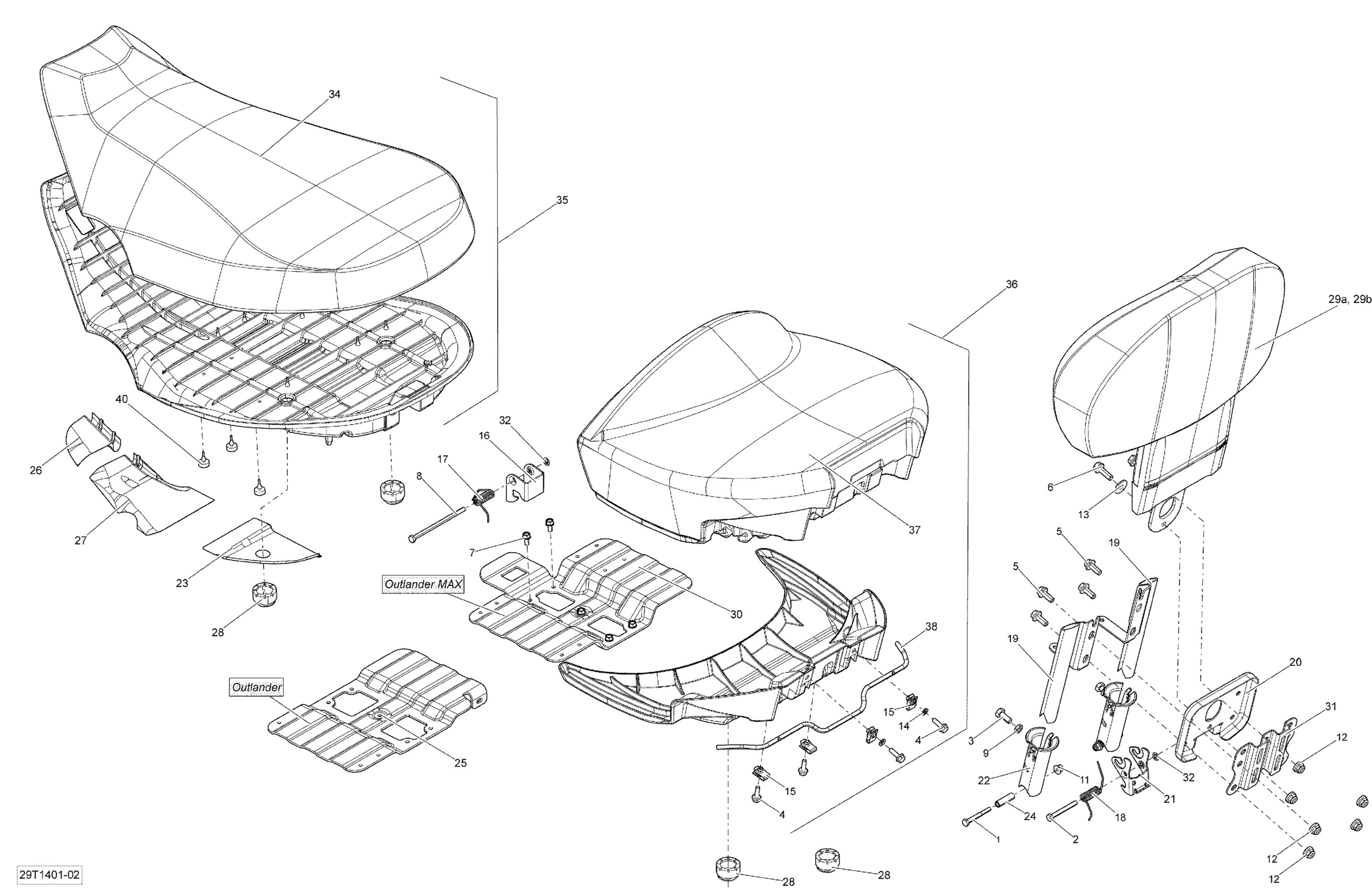

Can-Am Outlander Max 400 EFI, STD, XT, 2014 09- Seat Diagram

#

Description
Price

1

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065034

Unavailable

2

Hex. Screw M6 X 55

207065544

$2.11

3

HEX. CAP SCREW M8 X 20 - Call your local BRP dealership

207182034

Unavailable

4

Hex. Flange Screw M6 X 20

207662044

$2.00

5

Hex. Flange Screw M8 X 20

207682044

$1.15

6

Hex. Flange Screw M8 X 25

207682544

$1.35

7

Hex. Flange Screw M6 X 12

210261250

$1.90

8

Hex. Screw M6 X 110

230061044

$1.48

9

Hex. Jam Nut M8

232180600

$0.67

11

Flange Elastic Nut M6

233261434

$4.44

12

Hex. Flange Elastic Nut M8

233281414

$1.47

13

Flat Washer 8 mm

234082410

$1.47

14

Lock Washer M6, Black

234161471

$0.53

15

Panel Nut M6 X 1.0

250100198

$2.11

16

Latch, Black

708000144

$11.99

17

Spring

708000369

$9.19

18

Spring

708000369

$9.19

19

LH BACKREST STEM - Call your local BRP dealership

708000439

Unavailable

19

RH BACKREST STEM - Call your local BRP dealership

708000443

Unavailable

20

FRONT PLATE - Call your local BRP dealership

708000446

Unavailable

21

LATCH - Call your local BRP dealership

708000448

Unavailable

22

ROD GUIDE - Call your local BRP dealership

708000461

Unavailable

23

REFLECTING SHEET - Call your local BRP dealership

708000514

Unavailable

24

INNER BUSHING - Call your local BRP dealership

708000530

Unavailable

25

Not Available As Spare Parts

XXX

Unavailable

26

REFLECTING SHEET - Call your local BRP dealership

708000649

Unavailable

27

REFLECTING SHEET - Call your local BRP dealership

708000650

Unavailable

28

Bumper Rubber

708000760

$10.49

29a

Backrest Ass'y

708000809

$519.99

29b

Backrest Cover

708000465

$126.99

30

REINFORCEMENT SEAT - Call your local BRP dealership

708000817

Unavailable

31

REAR PLATE - Call your local BRP dealership

708000855

Unavailable

32

Push Nut

732610072

$2.19

34

Seat Cover

708000556

$126.99

35

Siege Assemblee*Seat Assembly | Includes 1 to 6

708001506

$459.99

36

Rear Seat Ass'y | Includes 16 to 20

708000805

$234.99

37

Seat Cover

708000457

$164.49

38

LATCH HANDLE - Call your local BRP dealership

708000822

Unavailable

40

Rubber Stopper

708000759

$4.19
