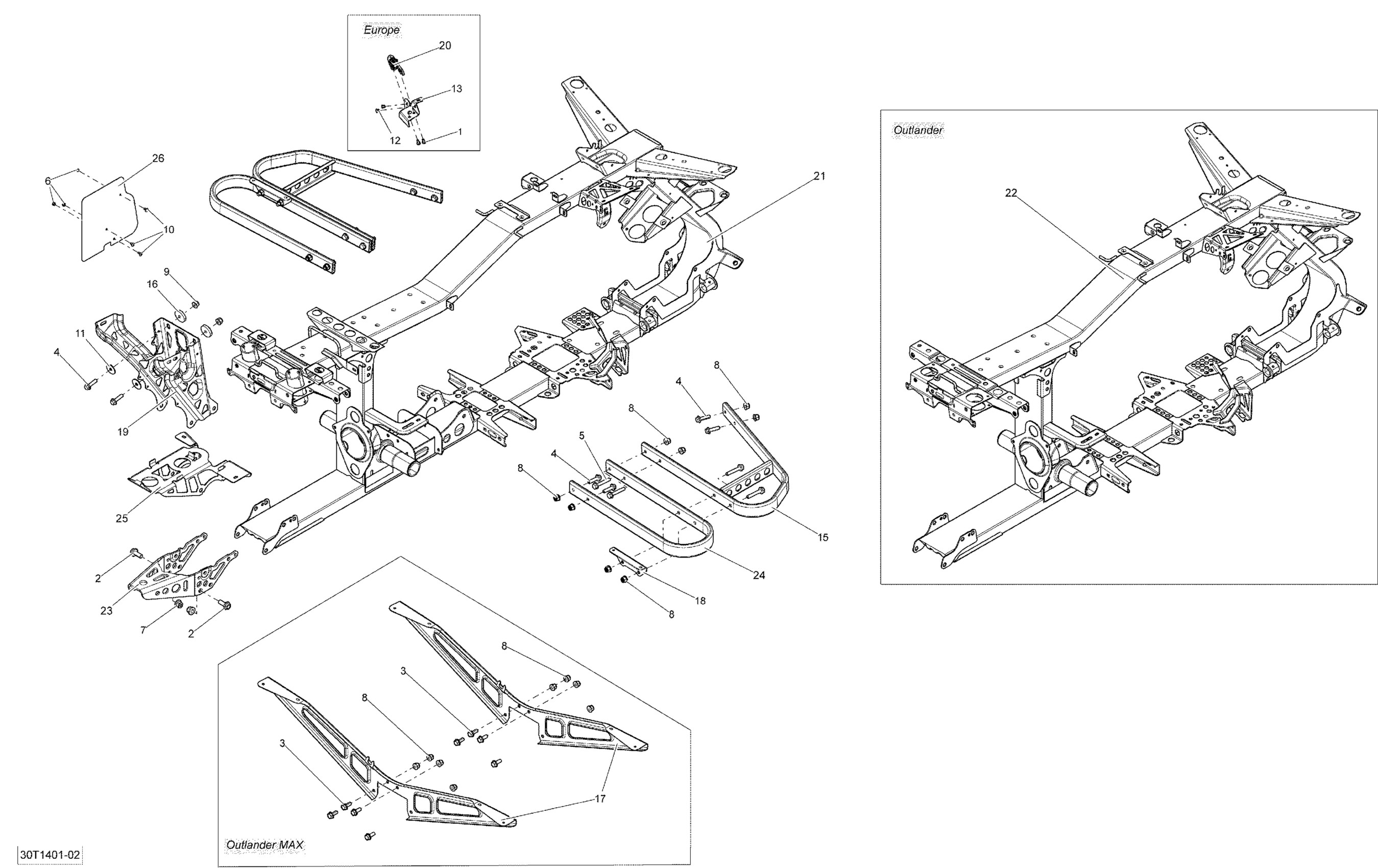

Can-Am Outlander Max 400 EFI, STD, XT, 2014 09- Frame Diagram

#

Description
Price

1

Socket Head Screw M5 X 10

205951046

$2.43

2

Hex. Flange Screw M10 X 25

207602544

$1.69

3

Hex. Flange Screw M8 X 20

207682044

$1.15

4

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

5

Hex. Flange Screw M8 X 45

207684544

$3.80

6

Elastic Stop Nut M4

232541484

$0.74

7

Hex. Flange Elastic Nut M10

233201436

$2.11

8

Hex. Flange Elastic Nut M8

233281414

$1.47

9

Hex. Elastic Flange Nut M8

233281416

$1.48

10

Torx Screw M4 X 8

250000127

$1.15

11

FLAT WASHER - Call your local BRP dealership

250200073

Unavailable

12

Pop Rivet 3/16"

390402400

$0.35

13

LOCK SUPPORT - Call your local BRP dealership | Europe

705201707

Unavailable

15

OOTBOARD ASS'Y - Call your local BRP dealership

705202081

Unavailable

16

SPACER - Call your local BRP dealership

705202084

Unavailable

17

DIAGONAL BRACE - Call your local BRP dealership

705202393

Unavailable

18

SUPPORT PLATE, BLACK - Call your local BRP dealership

705202402

Unavailable

19

Rear Support, Black

705203842

$42.99

20

Padlock with Key

707000666

$25.99

21

FRAME, BLACK - Call your local BRP dealership | Outlander MAX

705203839

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

TRAILER HOOK KIT - Call your local BRP dealership

715000286

Unavailable

24

REAR FOOTREST - Call your local BRP dealership

705201993

Unavailable

25

Battery Support Base

705201942

$32.99

26

Heat Shield

705202394

$17.49
