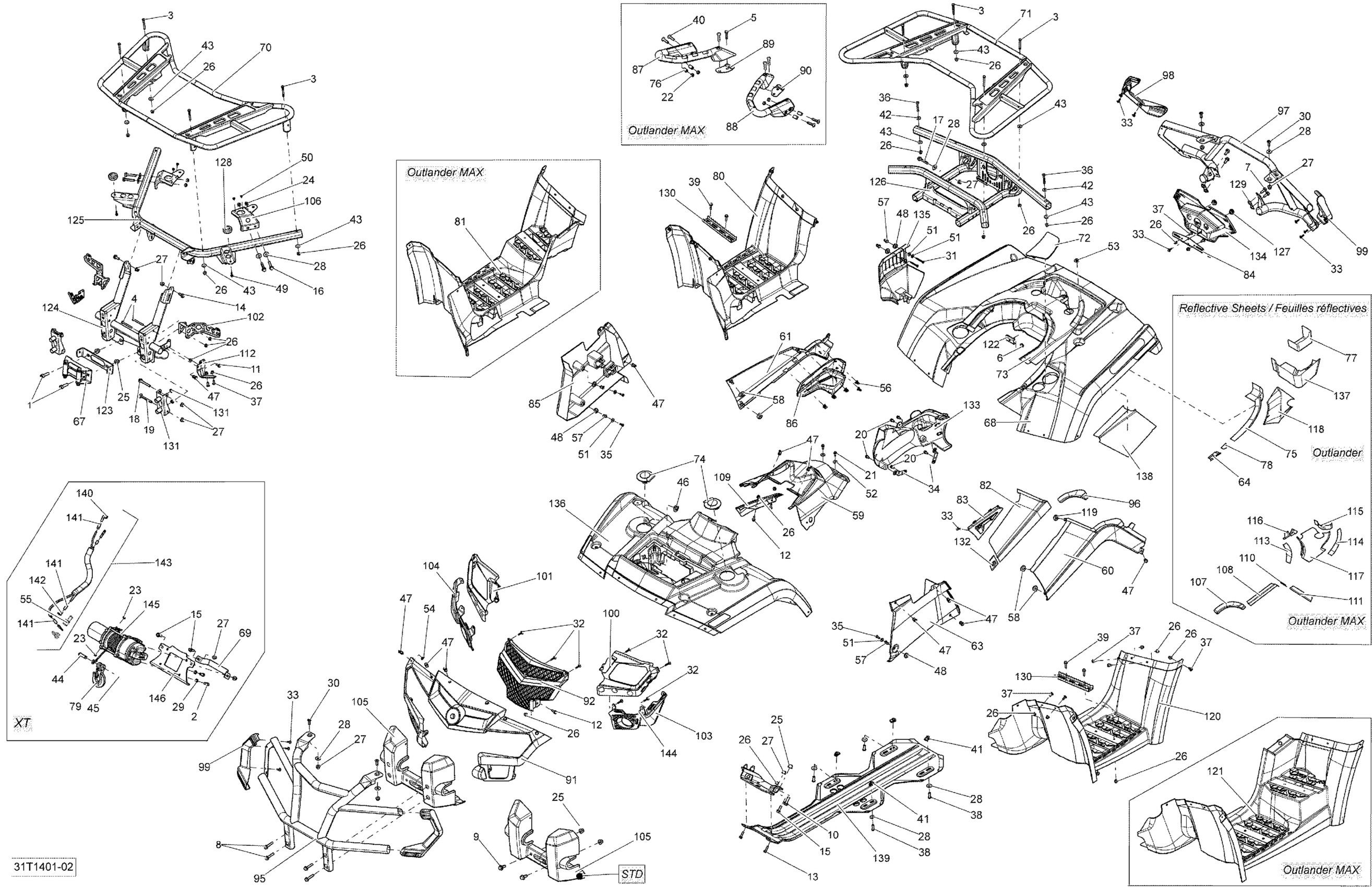

Can-Am Outlander Max 400 EFI, STD, XT, 2014 09- Body And Accessories Diagram

#

Description
Price

1

Socket Screw M10 X 35

205003544

$1.69

2

Socket Head Screw M8 X 20

205082044

$1.15

3

Hex. Screw M6 X 55

207065544

$2.11

4

Hex. Screw M6 X 60

207066044

$0.67

5

Hex. Screw M8 X 35

207083544

$1.15

6

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

7

Hex Screw Washer Head M8 X 20

207582054

$3.17

8

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.69

9

Hex. Flange Screw M10 X 25

207602544

$1.69

10

Hex. Flange Screw M10 X 30

207603044

$2.11

11

Hex. Flange Screw M6 X 16

207661644

$0.74

12

Hex. Flange Screw M6 X 20

207662044

$2.00

13

Hex. Flange Screw M6 X 25

207662544

$0.64

14

Hex. Flange Screw M8 X 20

207682044

$1.15

15

Hex. Flange Screw M8 X 25

207682544

$1.35

16

Hex. Flange Screw M8 X 45

207684544

$3.80

17

Hex. Flange Screw M8 X 50

207685044

$1.69

18

Hex. Flange Screw M8 x 60

207686044

$3.07

19

Carriage Bolt M8 X 70

207787044

$1.37

20

Hex. Flange Screw M6 X 12

210261250

$1.90

21

Hex. Flange Screw M6 X 16

210261650

$1.67

22

HEX. NUT - Call your local BRP dealership

232081494

Unavailable

23

Elastic Stop Nut M6

232561414

$0.55

24

Hex. Elastic Stop Nut M8

232581414

$0.56

25

Hex. Flange Elastic Nut M10

233201414

$1.58

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

Hex. Flange Elastic Nut M8

233281414

$1.47

28

Flat Washer 8 mm

234082410

$1.47

29

Lock Washer 8 mm

234181401

$0.92

30

TORX SCREW M8 X 25 - Call your local BRP dealership

235482584

Unavailable

31

Hex. Screw K50 X 45

241154540

$2.11

32

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

33

Screw M4 X 16

250000725

$3.49

34

Engine Cover Support

705003646

$9.23

35

Torx Screw K50 X 16

250000720

$1.69

36

Torx Truss Screw M6 X 50

250000749

$3.17

37

Torx Screw M6 X 16

250000755

$0.87

38

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

39

Hex. Flange Screw M6 X 25

250000787

$2.22

40

TORX SCREW M8 X 35 - Call your local BRP dealership | Max

250000441

Unavailable

41

Panel Nut M8

250100111

$4.29

42

Flat Washer

250200040

$1.90

43

Flat Washer

224061201

$1.37

44

Clevis Pin

250400021

$13.18

45

Cotter Pin

250400022

$9.69

46

PLASTIC CAP - Call your local BRP dealership | STD

293000103

Unavailable

47

Tuflok Plastic Rivet

293150230

$1.47

48

Grommet

709000582

$4.69

49

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

50

Pop Rivet 3/16"

390402300

$0.75

51

Washer | DS 650 X

391301600

$0.48

52

Flat Washer

250200082

$0.42

53

CAP - Call your local BRP dealership

414859400

Unavailable

54

Washer

506151252

$3.17

55

Protector Cap | XT

515175919

$17.99

56

Edge Clip

517302785

$0.88

57

Knob

517303439

$4.55

58

Oval Washer

705000321

$5.61

59

BLACK DASH-BOARD KIT - Call your local BRP dealership | Includes 13a to 13d

715000789

Unavailable

60

PANEL_BODY LH B-176 - Call your local BRP dealership

705003484

Unavailable

60

PANEL_BODY LH B-190 - Call your local BRP dealership

705003483

Unavailable

61

RED RH SIDE PANEL - Call your local BRP dealership | Viper Red

705003679

Unavailable

61

PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow

705003678

Unavailable

63

LH Inner Fender

705000652

$39.99

64

Heat Shield | Europe

517305451

$2.29

67

Fairlead_Roller Kit

715007699

$83.99

68

Red Rear Fender Kit | Model-Red North America

715002335

Unavailable

68

RED REAR FENDER KIT - Call your local BRP dealership | Model-Red Europe

715002343

Unavailable

68

RED REAR FENDER KIT - Call your local BRP dealership | Model-Red International

715002339

Unavailable

68

Yellow Rear Fender Kit | Model-Yellow North America

715002337

Unavailable

68

YELLOW REAR FENDER KIT - Call your local BRP dealership | Model-Yellow Europe

715002345

Unavailable

68

YELLOW REAR FENDER KIT - Call your local BRP dealership | Model-Yellow International

715002341

Unavailable

69

BLACK WINCH BRACKET - Call your local BRP dealership | XT

705001460

Unavailable

70

Front Luggage Rack

705002616

$275.49

71

Rear Luggage Rack

705002617

$275.49

72

LH Rear Body Panel Cap

705017923

$13.99

73

YELLOW STORAGE TRAY - Call your local BRP dealership | Yellow

705002952

Unavailable

73

RED STORAGE TRAY - Call your local BRP dealership | Viper Red

705002954

Unavailable

74

FRONT CAP - Call your local BRP dealership

705001999

Unavailable

75

Reflective Sheet

705002085

$12.99

76

Bushing

705002153

$11.99

77

Reflective Sheet

705002191

$9.69

78

Not Available As Spare Parts

XXX

Unavailable

79

Winch Hook Kit

705014949

$24.99

80

Not Available As Spare Parts

XXX

Unavailable

81

RH Footboard

705002487

$184.99

82

REFLECTIVE SHEET - Call your local BRP dealership

705002491

Unavailable

83

CONSOLE CAP - Call your local BRP dealership

705002493

Unavailable

84

SUPPORT - Call your local BRP dealership | Europe

705002499

Unavailable

85

INNER FENDER - Call your local BRP dealership

705002640

$36.99

86

MUFFLER COVER - Call your local BRP dealership

705002664

Unavailable

87

RH HANDLE - Call your local BRP dealership | Includes 27 to 29

705002699

Unavailable

88

LH HANDLE - Call your local BRP dealership | Includes 24 to 26

705002700

Unavailable

89

RH FIXATION PLATE - Call your local BRP dealership

705002760

Unavailable

90

LH FIXATION PLATE - Call your local BRP dealership

705002762

Unavailable

91

YELLOW FRONT FASCIA - Call your local BRP dealership | Yellow

705002778

Unavailable

91

RED FRONT FASCIA - Call your local BRP dealership | Red

705003080

Unavailable

92

UPPER GRILL - Call your local BRP dealership

705002779

Unavailable

95

Front Bumber | XT

705002812

$301.99

96

Not Available As Spare Parts

XXX

Unavailable

97

Rear Bumber | XT

705002806

$187.99

98

LH Front Cap | XT

705002802

$11.11

99

RH Front Cap | XT

705002803

$11.11

100

LH Head Lamp Support

705002825

$27.99

101

RH Head Lamp Support

705002826

$27.99

102

LH FACIA SUPPORT - Call your local BRP dealership

705002925

Unavailable

102

RH FACIA SUPPORT - Call your local BRP dealership

705002926

Unavailable

103

LH LOWER FRONT FACIA - Call your local BRP dealership

705002780

Unavailable

103

LH LOWER FRONT FACIA - Call your local BRP dealership | Europe

705002889

Unavailable

104

RH LOWER FRONT FACIA - Call your local BRP dealership

705002781

Unavailable

104

RH LOWER FRONT FACIA - Call your local BRP dealership | Europe

705002890

Unavailable

105

GUARD PLATE - Call your local BRP dealership | STD

705003495

Unavailable

105

GUARD PLATE - Call your local BRP dealership

705003496

Unavailable

106

LH ANCHOR PLATE - Call your local BRP dealership

705002995

Unavailable

106

RH Anchor Plate

705002997

$18.49

107

REFLECTIVE SHEET - Call your local BRP dealership

705003004

Unavailable

108

REFLECTIVE SHEET - Call your local BRP dealership

705003005

Unavailable

109

LEVER INDICATOR - Call your local BRP dealership

705001529

Unavailable

109

LEVER INDICATOR - Call your local BRP dealership | Europe

705003028

Unavailable

110

Reflective Sheet

705003033

Unavailable

111

REFLECTIVE SHEET - Call your local BRP dealership

705003034

Unavailable

112

LH LOWER FACIA SUPPORT - Call your local BRP dealership

705003037

Unavailable

112

RH LOWER FACIA SUPPORT - Call your local BRP dealership

705003039

Unavailable

113

REFLECTIVE SHEET - Call your local BRP dealership

705003082

Unavailable

114

REFLECTIVE SHEET - Call your local BRP dealership

705003083

Unavailable

115

REFLECTIVE SHEET - Call your local BRP dealership

705003084

Unavailable

116

REFLECTIVE SHEET - Call your local BRP dealership

705003085

Unavailable

117

REFLECTIVE SHEET - Call your local BRP dealership

705003086

Unavailable

118

REFLECTIVE SHEET - Call your local BRP dealership

705003087

Unavailable

119

Grommet

705003264

$4.09

120

Not Available As Spare Parts

XXX

Unavailable

121

LH Footboard

705003633

$184.99

122

U Reinforcement

705003647

$8.19

123

WINCH BRACKET - Call your local BRP dealership

705003649

Unavailable

124

FRONT BUMPER - Call your local BRP dealership

705003654

Unavailable

125

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

126

Rear Support

705003656

$275.49

127

Stopper Rubber

705014429

$5.95

128

RUBBER CAP - Call your local BRP dealership

705003667

Unavailable

129

LINK PLATE - Call your local BRP dealership

705003796

Unavailable

130

Footrest

705003648

$43.99

131

BUMPER BRACKET - Call your local BRP dealership

705003828

Unavailable

132

Reflective Sheet

705003830

$12.99

133

Engine Cover

705003837

$38.99

134

Rear Facia

705003840

$45.99

135

Thread Cover

705004036

$20.99

136

Red Front Fender Kit | Includes 16 to 22, Viper Red

715002329

$204.99

136

RED FRONT FENDER KIT - Call your local BRP dealership | Model-Red Europe

715002331

Unavailable

136

Yellow Front Fender Kit | Includes 16 to 22, Yellow

715002330

$204.99

136

YELLOW FRONT FENDER KIT - Call your local BRP dealership | Model-Yellow Europe

715002333

Unavailable

137

Reflective Sheet

705005888

$5.29

138

REFLECTIVE SHEET - Call your local BRP dealership | Europe

705005889

Unavailable

139

PLATE_SKID CTRL. KIT - Call your local BRP dealership

715000688

Unavailable

140

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

141

Was 710000483 Heat Shrink Tubing

219704447

$78.99

142

Open Barell | Model-XT

710000506

$6.11

143

WINCH CABLE ASS'Y - Call your local BRP dealership | XT, Includes 47 to 52

710001251

Unavailable

144

Push Nut

732610072

$2.19

145

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

146

BLACK MOUNTING PLATE - Call your local BRP dealership | XT

705004278

Unavailable
