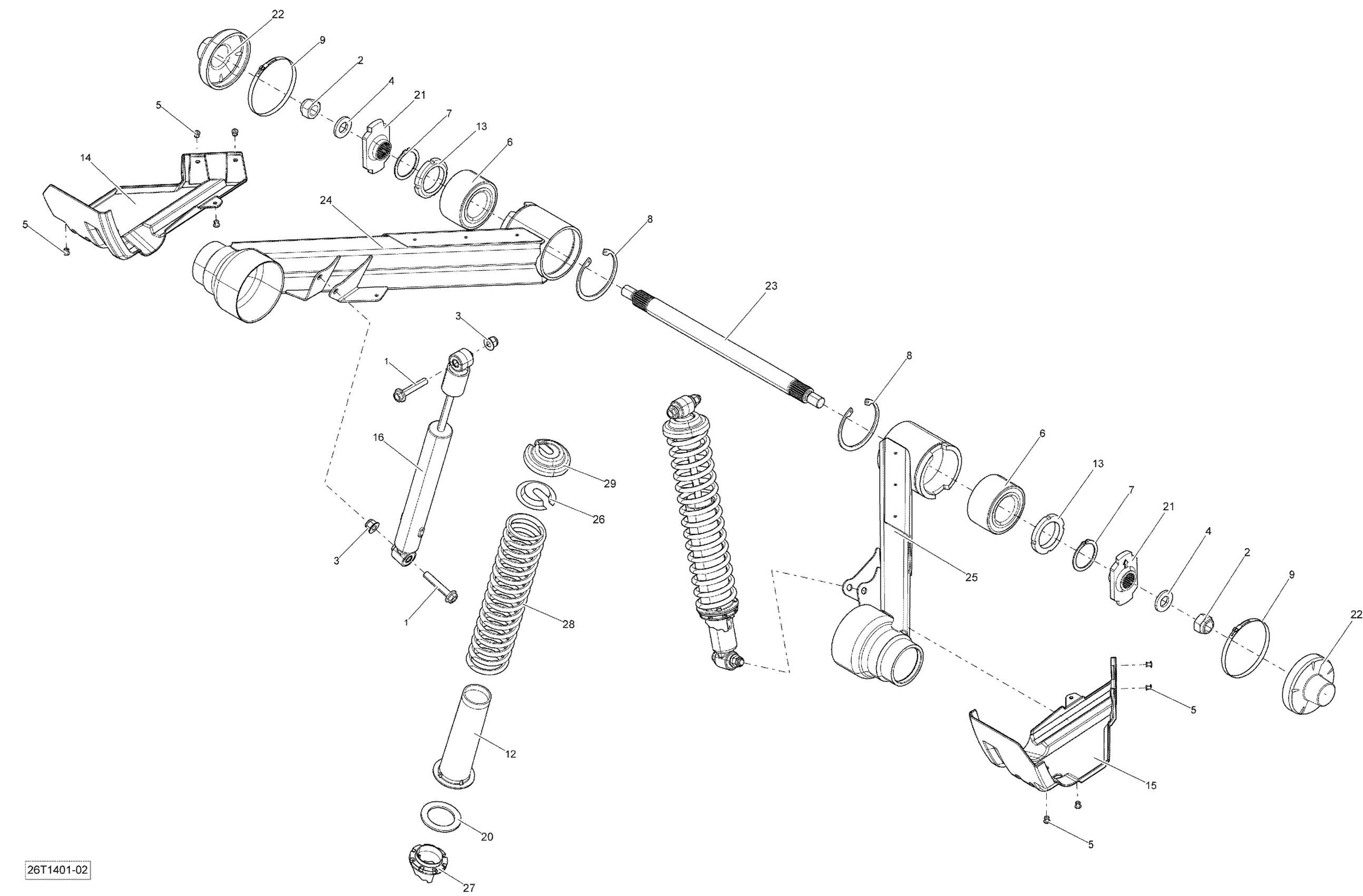

Can-Am Outlander Max 400 EFI, STD, XT, 2014 08- Rear Suspension Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 55

207605544

$3.38

2

Elastic Stop Nut M18

232591414

$4.39

3

Hex. Flange Elastic Nut M10

233201414

$1.58

4

Washer

250200045

$7.73

5

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

6

Ball Bearing

293350037

$139.99

7

Circlip 45 mm

293370027

$4.14

8

Circlip

293370041

$9.26

9

Oetiker Clamp

293650162

$9.79

12

PROTECTOR - Call your local BRP dealership

503190436

Unavailable

13

Nut

706000221

$20.99

14

LH PROTECTOR - Call your local BRP dealership

706000333

Unavailable

15

RH PROTECTOR - Call your local BRP dealership

706000334

Unavailable

16

Rear Shock

706000382

$179.99

20

SPRING SEAT - Call your local BRP dealership

706000533

Unavailable

21

Lever

706000548

$38.99

22

Cover

706000749

$16.49

23

Sway Bar

706001077

$116.49

24

LH SWING ARM - Call your local BRP dealership

706001185

Unavailable

25

Rh Swing Arm

706003425

$296.99

26

Cap

706200785

$4.69

27

Adjuster Ring

706002356

$18.49

28

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership

706000650

Unavailable

29

Spring Stopper

706200881

$12.99
