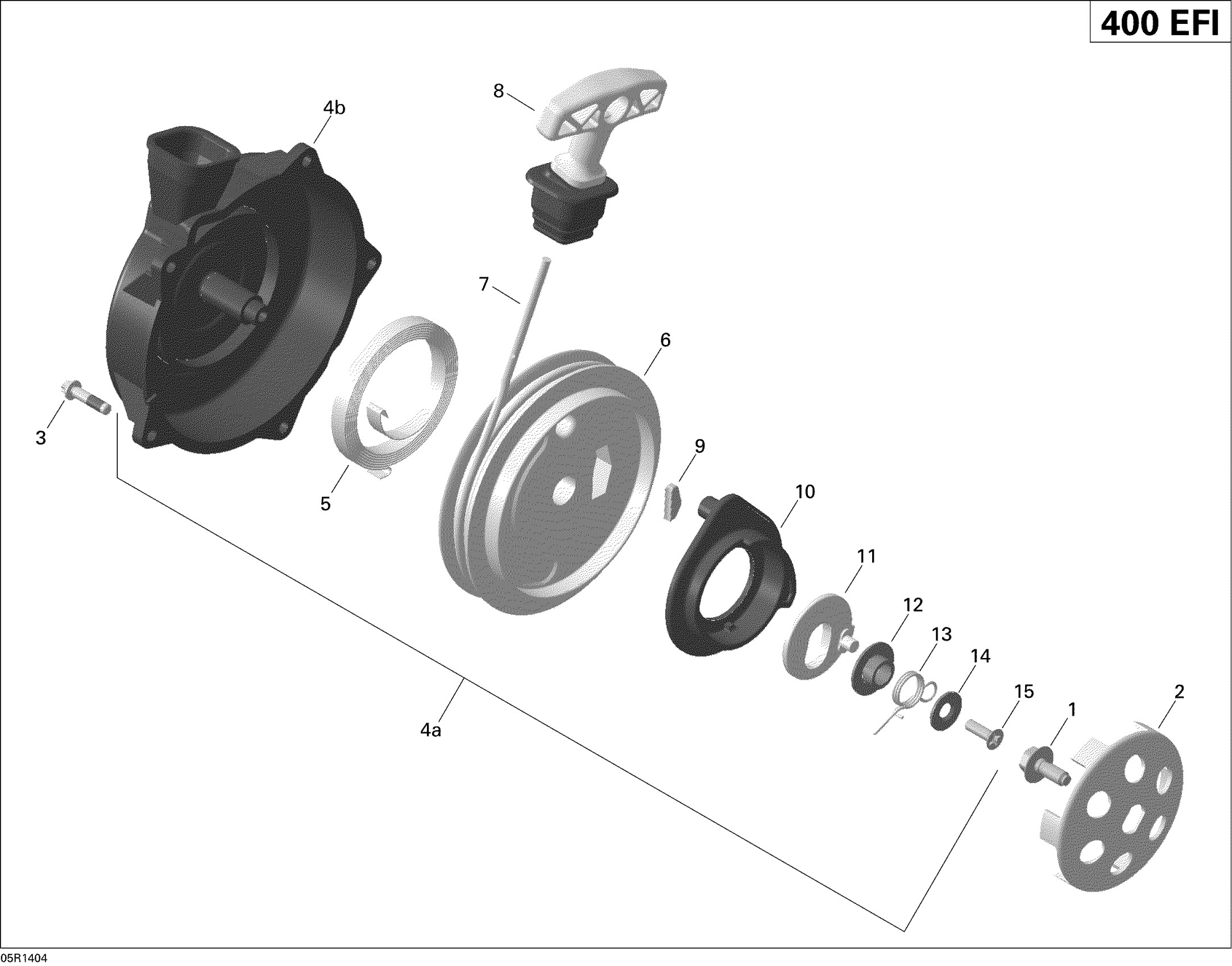

Can-Am Outlander Max 400 EFI, STD, XT, 2014 04- Rewind Starter Diagram

Hex. Collar Screw M8 X 20 | 330HO

420241721

$7.41

Starting Pulley

420852501

$29.49

Hex. Screw M6 X 25

420240034

$1.90

Starter Rope Housing Ass'y | Includes 4 to 15

715001034

$217.99

Starter Rope Housing

420610930

$58.49

Rewind Spring

420939115

$30.49

Rope Sheave

420852283

$62.49

Was 412500100 Rope-Starter

219704403

$158.99

Starting Grip With Rubber Buffer

420852555

$47.49

Key Clamp

420852070

$4.23

Pawl

420852299

$24.99

Lock Pawl

420852306

$17.05

STAGE SLEEVE - Call your local BRP dealership

420847927

Unavailable

Locking Spring

420938989

$20.49

Flat Washer

420244320

$7.73

PLASTITE SCREW M6 X 20 - Call your local BRP dealership

420241730

Unavailable
