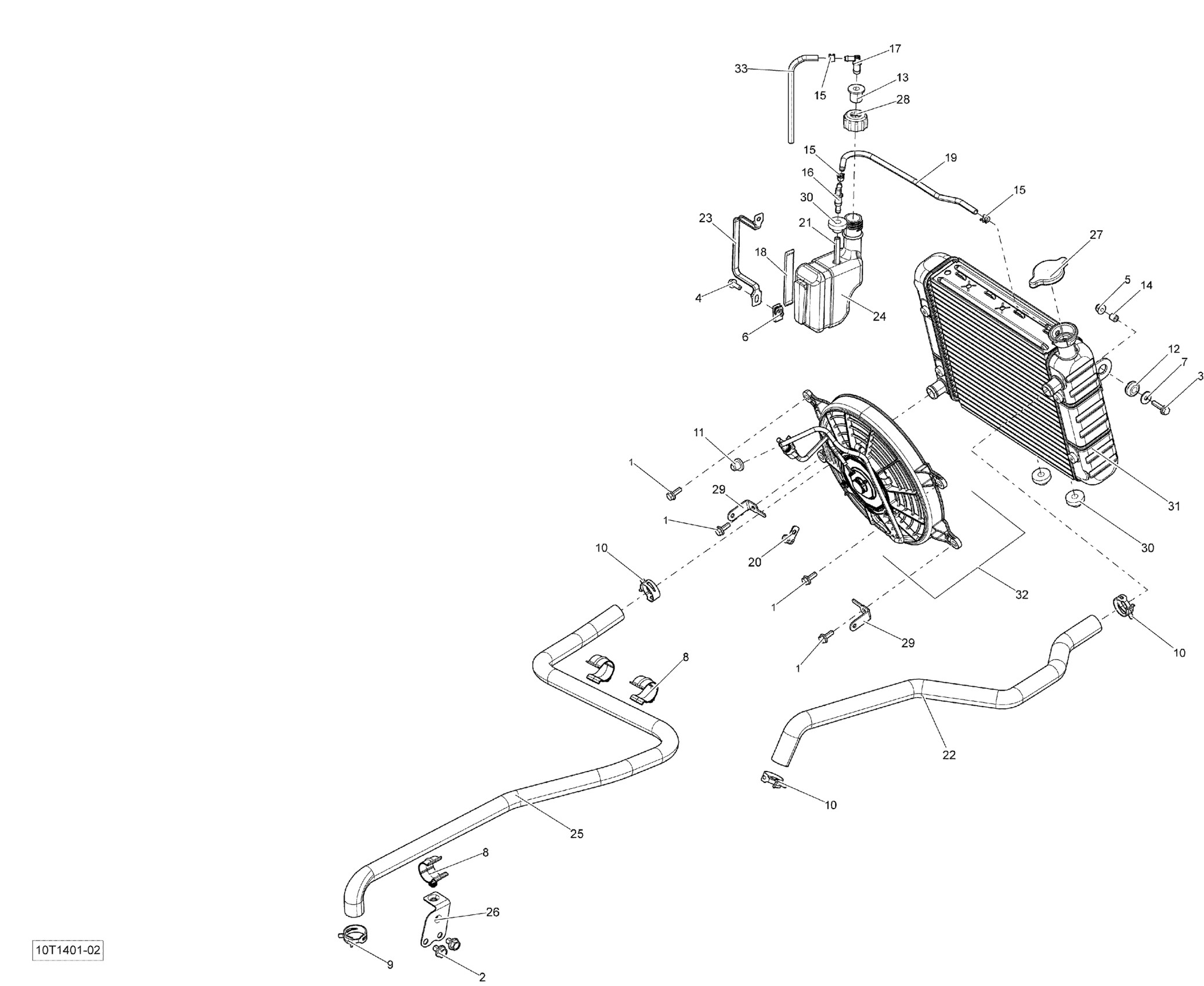

Can-Am Outlander Max 400 EFI, STD, XT, 2014 01- Cooling System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

2

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

3

Hex. Flange Screw M6 X 25

207662544

$0.64

4

Hex. Flange Screw M6 X 16

210261650

$1.67

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Panel Nut M6 X 1.0

250100198

$2.11

7

Flat Washer

250200082

$0.42

8

Retainer

275500526

$4.55

9

Norma Spring Clamp

293650108

$4.12

10

Norma Spring Clamp

293650109

$4.12

11

Grommet

293720029

$1.59

12

Grommet

709000582

$4.69

13

Grommet

293830136

$10.07

14

Bushing

293900105

$7.65

15

Spring Clamp

414554800

$0.88

16

Elbow Male Connector

414580600

$4.23

17

Male Connector

414580700

$4.12

18

Gasket, Neoprene 2000Mm Long

219704476

$15.36

19

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

20

Clamp

293650256

$5.49

21

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

22

RADIATOR INLET HOSE - Call your local BRP dealership

709200077

Unavailable

23

TANK ANCHOR - Call your local BRP dealership

709200080

Unavailable

24

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

25

HOSE OUTLET RADIATOR - Call your local BRP dealership

709200198

Unavailable

26

Hose Support

709200206

$9.69

27

Radiator Pressure Cap

709200207

$25.49

28

Cap

709200586

$11.11

29

SUPPORT - Call your local BRP dealership

709200284

Unavailable

30

Grommet

709200285

$9.69

31

RADIATOR ASS'Y - Call your local BRP dealership

709200307

Unavailable

32

Fan Ass'y

709200371

$224.99

33

Polyurethane Hose 10000Mm Long

219704410

$56.99
