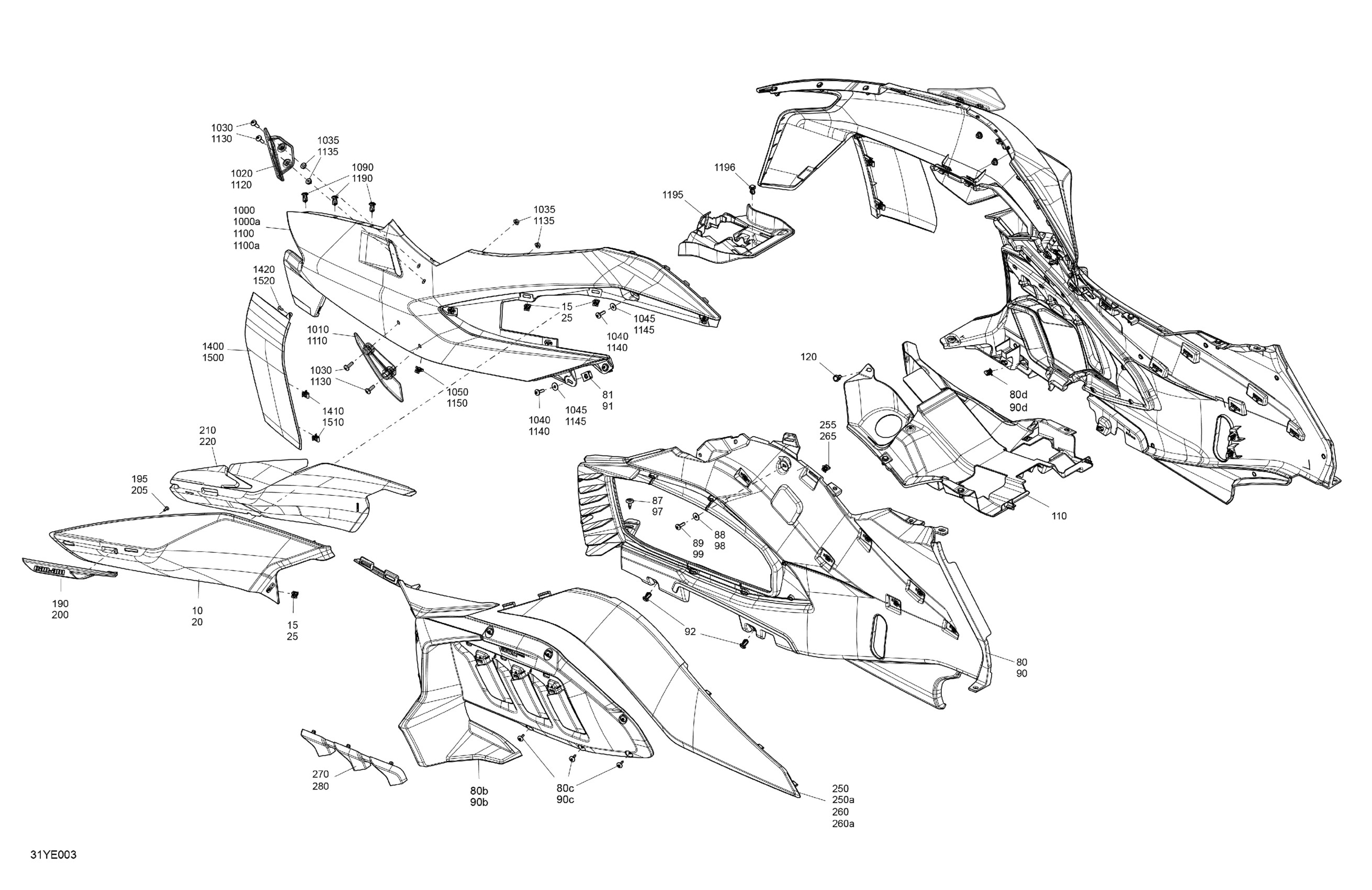

Can-Am North America - RT LIMITED - Platine Edition - B9SC - Carbon Black, 2025 07- Body - System Diagram

#

Description
Price

10

Black, LH Access Cover

705013938

$73.99

15

Edge Clip

517302785

$0.88

20

Black, RH Access Cover

705013939

$73.99

25

Edge Clip

517302785

$0.88

80

LH Central Fairing Ass'y | Includes 80 to 80c

705017527

$209.99

80b

LH Deflector

705016438

$149.99

80c

Screw Type K-40 M4 X 16

250001105

$2.24

80d

Edge Clip

517302785

$0.88

81

Panel Nut M6 X 1.0

250100208

$1.46

87

Tuflock Phillips Plastic Screw

414745900

$1.69

88

Stainless Steel Flat Washer

234062670

$2.11

89

Torx Truss Screw M6 X 25

250000807

$2.11

90

RH Central Fairing Ass'y | Includes 90 to 90d

705017528

$209.99

90b

RH Deflector

705016439

$149.99

90c

Screw Type K-40 M4 X 16

250001105

$2.24

90d

Edge Clip

517302785

$0.88

91

Panel Nut M6 X 1.0

250100208

$1.46

92

Tuflok Plastic Rivet

293150230

$1.47

97

Tuflock Phillips Plastic Screw

414745900

$1.69

98

Stainless Steel Flat Washer

234062670

$2.11

99

Torx Truss Screw M6 X 20

250000705

$2.11

110

Tank Guard

705016790

$27.99

120

Tuflok Plastic Rivet

293150230

$1.47

190

Sterling Silver, LH Fairing Trim

708304106

$154.99

195

Torx Truss PT K40 x 12

250001131

$2.11

200

Sterling Silver, RH Fairing Trim

708304107

$154.99

205

Torx Truss PT K40 x 12

250001131

$2.11

210

LH Front Trim Acoustic Insulation

518331044

$19.99

220

RH Front Trim Acoustic Insulation

518331045

$19.99

250

Carbon Black, LH Upper Fairing

705016727

$249.99

250a

Bare, LH Upper Fairing

705014100

$61.99

255

Edge Clip

517302785

$0.88

260

Carbon Black, RH Upper Fairing

705016728

$249.99

260a

RH Upper Fairing

705014101

$61.99

265

Edge Clip

517302785

$0.88

270

Sterling Silver, RH Engine Trim

708305108

$144.99

280

Sterling Silver, LH Engine Trim

708305107

$144.99

1000

Carbon Black, LH Front Fairing

708201137

$459.99

1000a

Bare, LH Front Fairing

708200870

$214.99

1010

LH Lower Air Deflector

705015953

$50.99

1020

LH Upper Air Deflector

705014710

$45.99

1030

Torx Truss Screw M6 X 20

250000705

$2.11

1035

Hex. Flange Nut M6

233161414

$2.11

1040

Torx Truss Screw M6 X 20

250000705

$2.11

1045

Stainless Steel Flat Washer

234062670

$2.11

1050

Edge Clip

517302785

$0.88

1090

Tuflok Plastic Rivet

293150230

$1.47

1100

Carbon Black, RH Front Fairing

708201138

$459.99

1100a

Bare, RH Front Fairing

708200871

$214.99

1110

RH Lower Air Deflector

705015954

$45.99

1120

RH Upper Air Deflector

705014711

$45.99

1130

Torx Truss Screw M6 X 20

250000705

$2.11

1135

Hex. Flange Nut M6

233161414

$2.11

1140

Torx Truss Screw M6 X 20

250000705

$2.11

1145

Stainless Steel Flat Washer

234062670

$2.11

1150

Edge Clip

517302785

$0.88

1190

Tuflok Plastic Rivet

293150230

$1.47

1195

Heat Shield

705014871

$18.49

1196

Tuflok Plastic Rivet

293150230

$1.47

1400

LH Scoop In

708201167

$78.99

1410

Edge Clip

517302785

$0.88

1420

Torx Truss PT K40 x 12

250001131

$2.11

1500

RH Scoop In

708201168

$44.99

1510

Edge Clip

517302785

$0.88

1520

Torx Truss PT K40 x 12

250001131

$2.11
