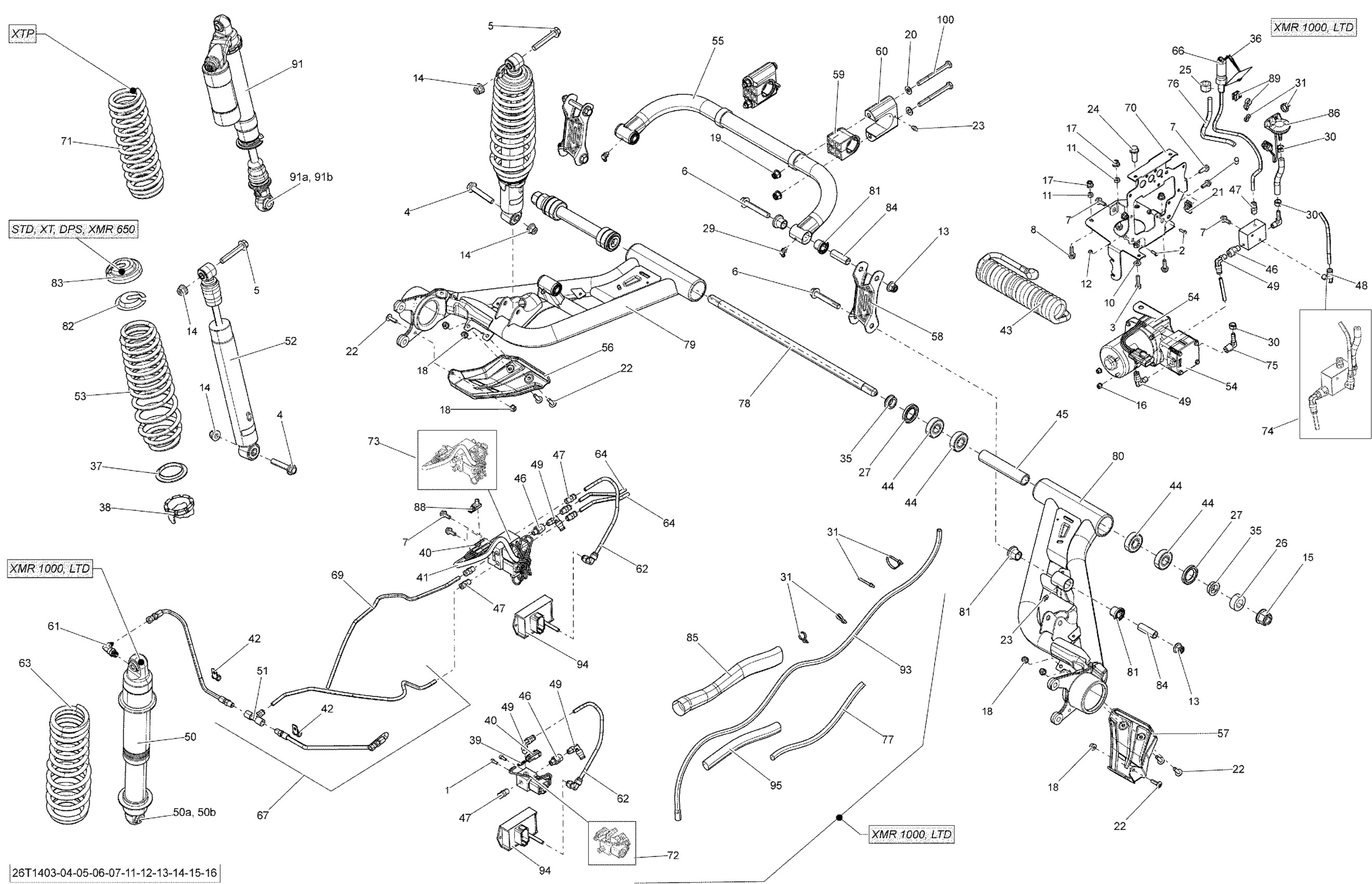

Can-Am Outlander MAX 1000EFI LTD, 2014 08- Rear Suspension Diagram

#

Description
Price

1

Socket Head Screw M4 X 12

205041254

$2.11

2

HEX. SCREW M4 X 12 - Call your local BRP dealership

207141244

Unavailable

3

Hex. Screw M6 X 25

207162544

$1.15

4

Hex. Flange Screw M10 X 55

207605546

$2.11

5

Hex. Flange Screw M10 X 6

207606046

$4.12

6

Hex. Flange Screw M10 X 65

207606536

$4.44

7

Hex. Flange Screw M6 X 16

207661644

$0.74

8

Hex. Flange Screw M6 X 20

207662044

$2.00

9

Hex. Flange Screw M6 X 16

210261650

$1.67

10

Flat Washer

224061121

$0.53

11

Hex. Nut M6

232061414

$0.53

12

Elastic Stop Nut M4

232541414

$0.58

13

Hex. Flange Elastic Nut M10

233201414

$1.58

14

Hex. Flange Elastic Nut M10

233201436

$2.11

15

Hex. Flange Elastic Nut M16

233211466

$1.99

16

Hex. Flange Elastic Nut M5

233251414

$1.04

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Hex. Flange Elastic Nut M6

233261494

$1.58

19

Hex. Flange Elastic Nut M8

233281434

$2.11

20

Flat Washer M8

234081430

$2.11

21

Panel Nut M6 X 1.0

250100198

$2.11

22

Torx Screw M6 X 20

250000722

$1.68

23

Grease Fitting

250000315

$5.82

24

Hex. Flange Screw M10 X 25

250001054

$14.21

25

Hex. Nut With Nylon 1/2" X 20

250100124

$7.51

26

Flat Washer M17

250200112

$7.99

27

Seal

293200144

$5.09

29

Grease Fitting 90°

293550056

$1.15

30

Clamp Oetiker

293650207

$12.17

31

Tie Wrap 142 mm

293750002

$1.25

35

Spacer

706001282

$12.99

36

O-Ring

414811400

$7.06

37

Not Available As Spare Parts

XXX

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable

39

Male Terminal

515175232

$1.58

40

Male Terminal Housing, 2 Circuits

515175654

$9.12

41

Not Available As Spare Parts

XXX

Unavailable

42

Clamp

293650256

$5.49

43

Auxiliary Hose

706000808

$104.99

44

Ball Bearing

293350145

$13.75

45

Spacer

706002259

$28.99

46

Check Valve

706000860

$42.99

47

Connector

706000869

$34.99

48

Elbow 90°

706000872

$28.99

49

Elbow 90°

706000928

$27.99

50

Rear Shock | LTD

706000930

$459.99

50a

Interior Bushing | XTP

715900210

$15.82

50b

O-Ring Bushing

715900209

$14.75

51

T Fitting

706000946

$35.99

52

Not Available As Spare Parts

XXX

Unavailable

53

Not Available As Spare Parts

XXX

Unavailable

54

Compressor Ass'y

706000964

$909.99

55

Swaybar

706000988

$126.99

56

LH PROTECTOR - Call your local BRP dealership

706001009

Unavailable

57

RH PROTECTOR - Call your local BRP dealership

706001010

Unavailable

58

Sway Bar Linkage

706001020

$13.99

59

Stabilizer Bar Bushing

706004640

$8.89

60

Bushing Holder

706001099

$33.99

61

Elbow 90° | XMR

706001200

$49.99

62

Hose Ass'y

706001216

$39.99

63

Black Rear Spring

706002785

$126.99

64

Not Available As Spare Parts

XXX

Unavailable

66

INFLATER ASS'Y - Call your local BRP dealership

706001339

Unavailable

67

REAR SHOCK DISTRIBUTOR ASS'Y - Call your local BRP dealership

706001341

Unavailable

69

Not Available As Spare Parts

XXX

Unavailable

70

Compressor Bracket

706001351

Unavailable

71

Not Available As Spare Parts

XXX

Unavailable

72

PRESSURE COLLECTOR ASS'Y - Call your local BRP dealership | LTD

706001367

Unavailable

73

Not Available As Spare Parts

XXX

Unavailable

74

HOSE ASS'Y - Call your local BRP dealership | Includes 108 to 108e

706001388

Unavailable

75

Elbow 90°

706001405

$18.49

76

Protector Tube

504153074

$14.49

77

Protector Tube

504153074

$14.49

78

Axial Pivot M16

706001664

$72.99

79

Black LH Swing Arm

706001860

$296.99

80

Black RH Swing Arm

706001861

$296.99

81

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

82

Not Available As Spare Parts

XXX

Unavailable

83

Not Available As Spare Parts

XXX

Unavailable

84

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

85

Not Available As Spare Parts

XXX

Unavailable

86

Air Suspension Sensor

710001825

$189.99

88

Not Available As Spare Parts

XXX

Unavailable

89

Clip Tie-Rap

710002899

$8.49

91

Not Available As Spare Parts

XXX

Unavailable

91a

Not Available As Spare Parts

XXX

Unavailable

91b

Not Available As Spare Parts

XXX

Unavailable

93

Polyurethane Hose 10000Mm Long

219704410

$56.99

94

Calibrated Module | LTD

710004405

$379.99

95

Not Available As Spare Parts

XXX

Unavailable

100

Hex. Screw M8 X 85

250001035

$1.89
