Description

Price

1

Tuned Pipe

707600062

Unavailable

2

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

3

GASKET - Call your local BRP dealership

707600003

Unavailable

4

Hex. Flange Nut M8

233081416

$1.15

5

Pipe Gasket

707600164

Unavailable

6

Muffler

707600258

Unavailable

7

Anti-Vibration Rubber

707600702

$8.57

8

Spring

415107100

$6.35

9

Hex. Flange Screw M6 X 16

207661646

$1.36

10

Hex. Flange Nut M6

233061414

$1.68

11

Hex. Forming Screw M6 X 10

210261050

$1.69

12

Heat Shield

707600202

Unavailable

13

Tuned Pipe

707600259

Unavailable

14

SPRING - Call your local BRP dealership

707600177

Unavailable

15

Muffler Support

707600309

Unavailable

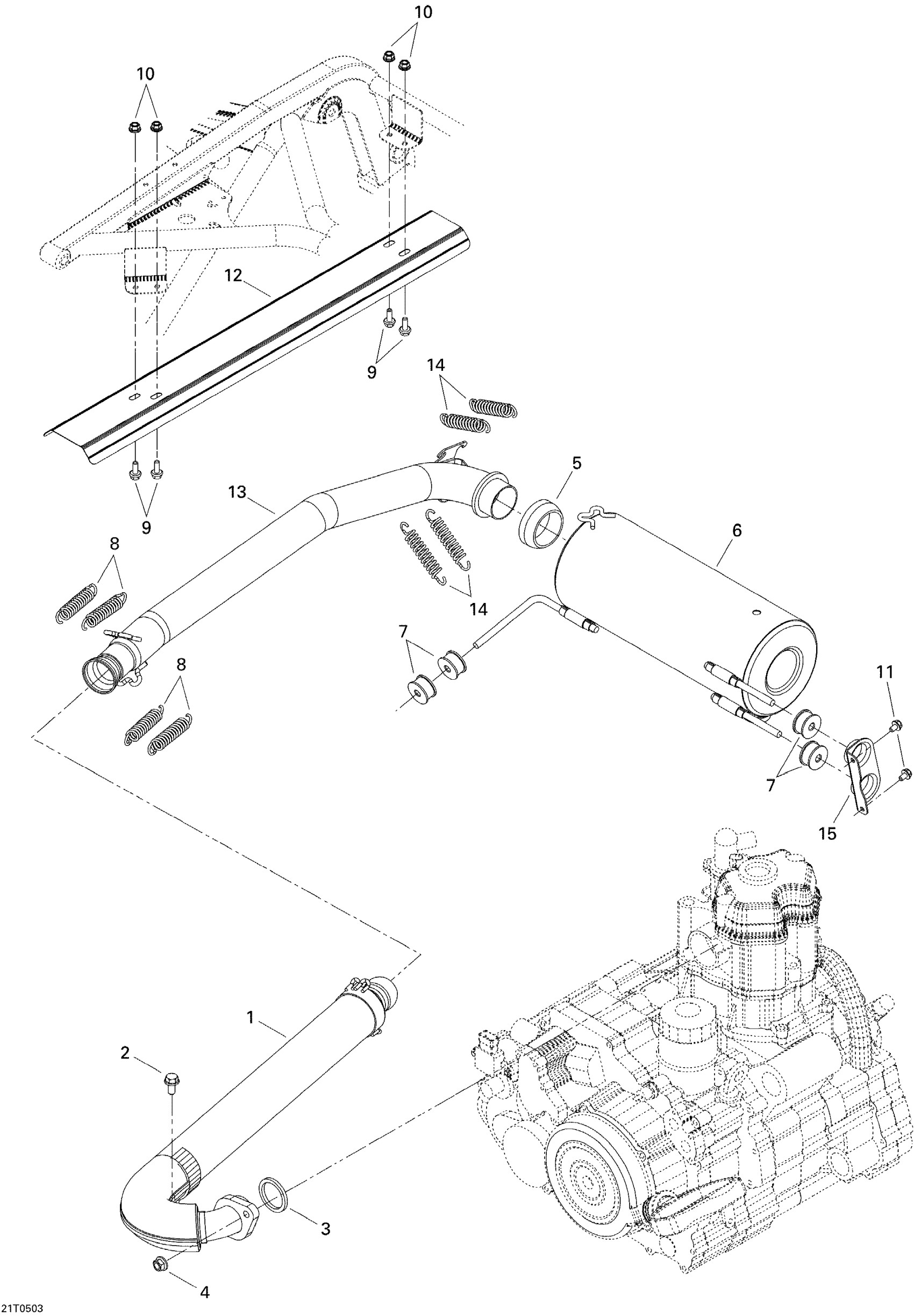

Can-Am Traxter XL, 2005 01- Exhaust System Diagram

Tuned Pipe

Hex. Flange Screw M8 X 16, Scotch Grip

GASKET - Call your local BRP dealership

Hex. Flange Nut M8

Pipe Gasket

Muffler

Anti-Vibration Rubber

Spring

Hex. Flange Screw M6 X 16

Hex. Flange Nut M6

Hex. Forming Screw M6 X 10

Heat Shield

Tuned Pipe

SPRING - Call your local BRP dealership

Muffler Support
