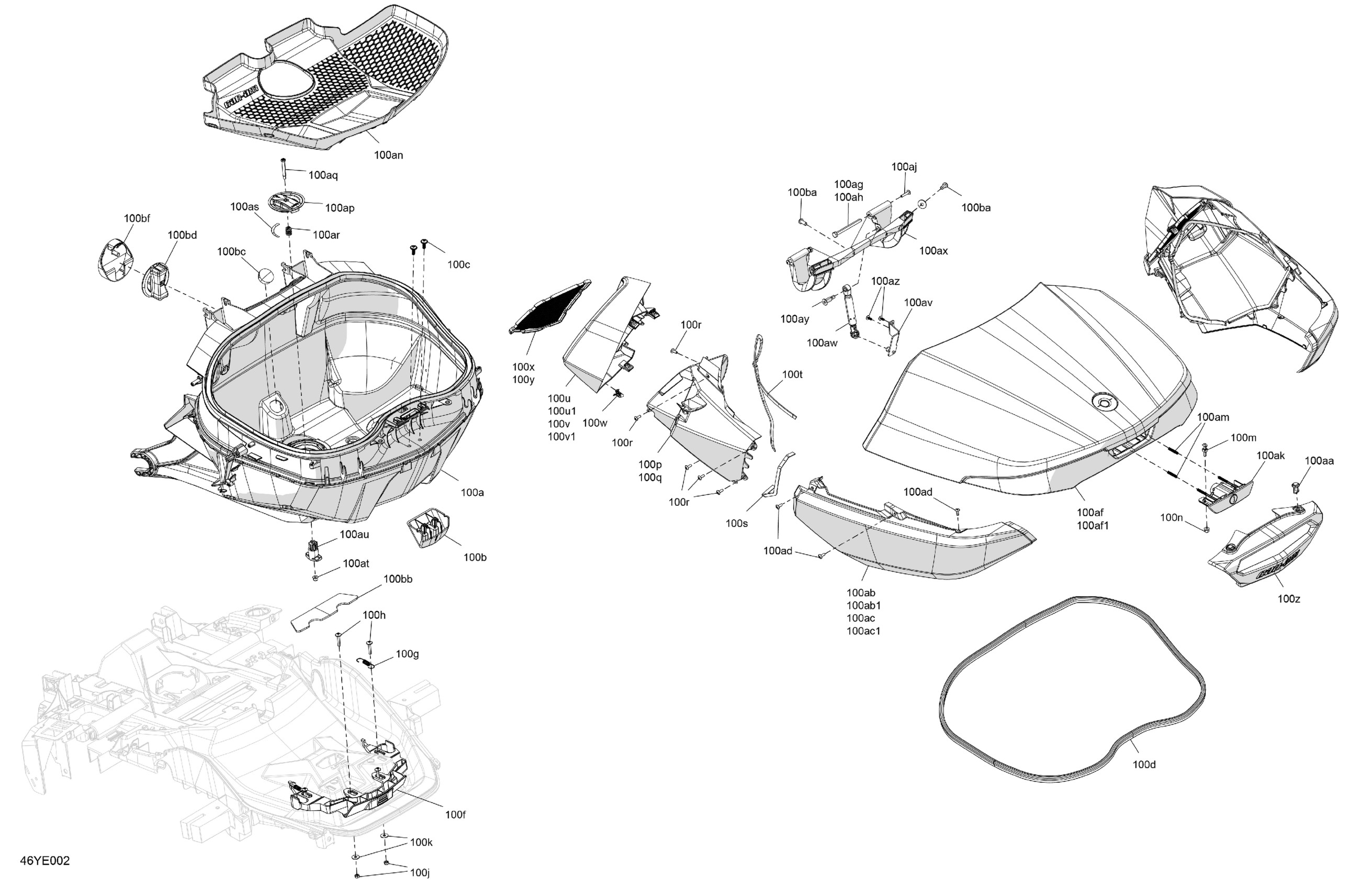

Can-Am North America - RT LIMITED - Platine Edition - B9SB - Deep Marsala, 2025 07- Body - Top Cargo Box Diagram

Description

Price

100a

Central Bonded Storage Box

708305116

$419.99

100b

Rear Central Reinforcement

708305115

$19.99

100c

Oval Head Torx Screw K60 X 16

250000546

$2.11

100d

Trim

293250579

$15.99

100f

Latch

708303384

$14.99

100g

Tension Spring

705601862

$2.99

100h

Torx Screw M5 X 25

250000762

$2.11

100j

Hex. Nut M5

232051600

$1.15

100k

Flat Washer 5 mm, Stainless

234052600

$0.77

100m

Stud

518333307

$13.49

100n

Flange Elastic Nut M5

233251434

$2.00

100p

LH Speaker Enclosure

708302113

$19.99

100q

RH Speaker Enclosure

708302114

$19.99

100r

Torx Truss PT K40 x 12

250001131

$2.11

100s

Seal 1000Mm Long

219704373

$8.26

100t

Seal 1000Mm Long

219704373

$8.26

100u

Deep Black, LH Rear Speaker Trim | Includes 2000ac to 2000ac1

708305046

$206.49

100u1

LH Rear Speaker Trim

708302155

$206.49

100v

Deep Black, RH Rear Speaker Trim | Includes 2000ad to 2000ad1

708305047

$206.49

100v1

RH Rear Speaker Trim

708302156

$206.49

100w

Edge Clip

517302785

$0.88

100x

LH Speaker Grille

708302106

$4.44

100y

RH Speaker Grille

708302107

$4.44

100z

Light Support

708302152

$12.49

100aa

Tuflok Plastic Rivet

293150230

$1.47

100ab

Deep Marsala Met, LH Rear Fairing

708303832

$244.99

100ab1

Bare, LH Rear Molded Fairing

708303800

$88.99

100ac

Deep Marsala Met, RH Rear Fairing

708303833

$249.99

100ac1

Bare, RH Rear Molded Fairing

708303801

$88.99

100ad

Torx Truss PT K40 x 12

250001131

$2.11

100af

Deep Black, Rear Box Cover

708303584

$459.99

100af1

Rear Box Cover

708303582

$459.99

100ag

RH Hinge Pin

708303376

$14.22

100ah

LH Hinge Pin

708303377

$14.22

100aj

Torx-Truss M/S M4 X 20

250000783

$2.11

100ak

Trunk Control Ass'y

708302100

$24.49

100am

Spring

708302198

$2.09

100an

Inner Trunk Soft Trim

708303064

$33.99

100ap

LinQ Lock Knob

708303063

$9.69

100aq

LinQ Lock Knob Screw

708303262

$2.64

100ar

Spring

708201081

$3.09

100as

Lock Decal

704908164

Unavailable

100at

Elastic Flange Nut M5

233251494

$2.11

100au

RH Latch

708201182

$12.58

100av

Shock Reinforcement

708303421

$61.99

100aw

Air Shock Absorber

708305055

$76.99

100ax

Lid Hinge

708303319

$69.99

100ay

Flange Screw M6 X 26

250000714

$3.91

100az

Torx-Truss Screw K40 X 10

250001034

$0.98

100ba

Tork Screw M6 X 16

250000534

$2.11

100bb

Foam Support

708303982

$2.39

100bc

Black, Nylon Cap

414916600

$4.69

100bd

Tool Linq

529000146

$5.26

100bf

Linq Handle Support

708304121

$1.19
