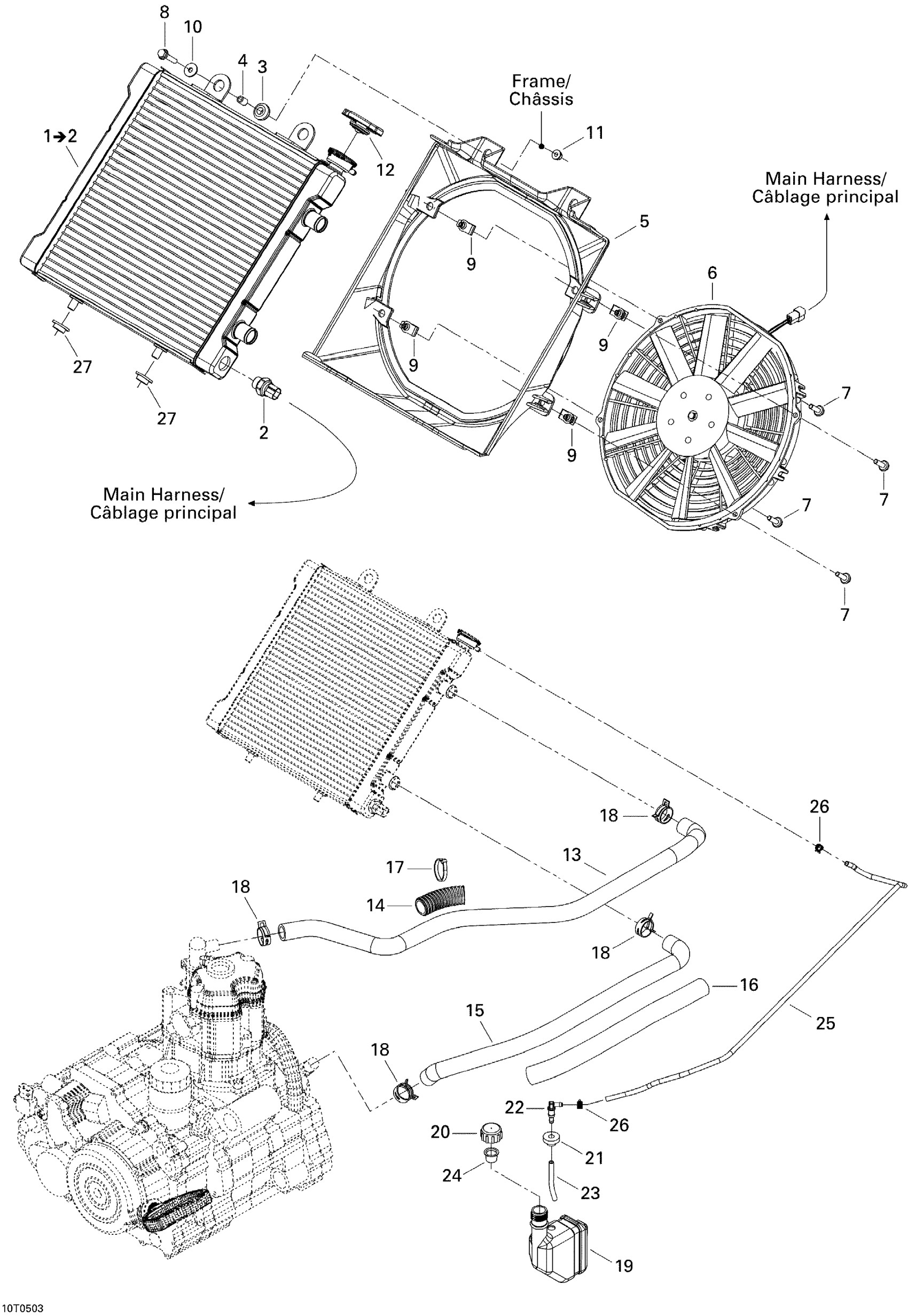

Can-Am Traxter XL, 2005 01- Cooling System Diagram

#

Description
Price

1

RADIATOR ASS'Y - Call your local BRP dealership | Includes 1 to 2

709200109

Unavailable

2

Temperature Sensor

715900095

$70.99

3

Grommet

709000582

$4.69

4

Bushing

293900019

$7.73

5

OUTER SHROUD - Call your local BRP dealership

709200111

Unavailable

6

FAN ASS'Y - Call your local BRP dealership | Includes 6 to 8

709200112

Unavailable

7

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

8

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

9

Panel Nut M6 X 1.0

250100198

$2.11

10

Flat Washer

250200082

$0.42

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Radiator Pressure Cap

709200207

$25.49

13

Radiator Inlet Hose

709200052

Unavailable

14

PROTECTION SHIELD - Call your local BRP dealership

709200031

Unavailable

15

OUTLET HOSE - Call your local BRP dealership

709200054

Unavailable

16

PROTECTION SHIELD - Call your local BRP dealership

709200032

Unavailable

17

Tie-Rap 180 mm

414115200

$0.11

18

Norma Spring Clamp

293650109

$4.12

19

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

20

TANK CAP - Call your local BRP dealership

709200009

Unavailable

21

Grommet

709200285

$9.69

22

Elbow Male Connector

414580600

$4.23

23

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

24

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

25

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

26

Spring Clamp

414554800

$0.88

27

Grommet

705003932

$2.89
