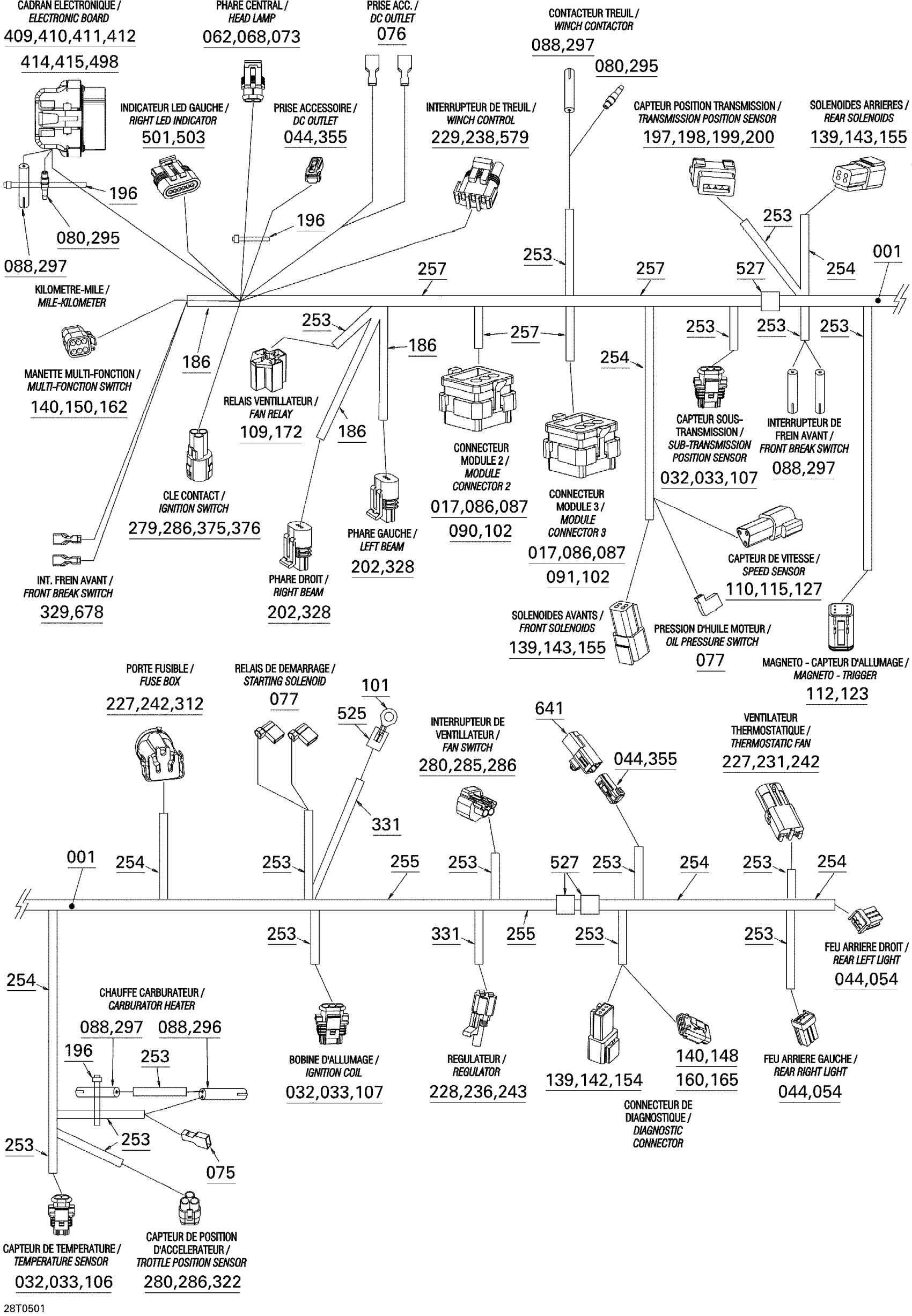

Can-Am Traxter Max Std & Max XT, 2005 10- Electrical Harness, Frame Diagram

#

Description
Price

001

Harness Ass'y | Includes 001 to 678

710000689

Unavailable

017

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

032

Female Terminal

278000998

$4.39

033

Wire Seal

278000999

$3.19

044

Female Terminal

515175231

$4.39

054

Female Housing, 3 Circuits

515175495

$16.18

062

Female Terminal

278001014

$3.28

068

Female Housing, 2 Circuits

409209500

$15.27

073

Wire Seal

278001013

$3.28

075

Female Terminal

409010700

$5.39

076

Female Terminal

409010800

$0.99

077

Female Terminal

409010300

$4.39

080

Male Terminal

278000230

$4.39

086

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

087

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

088

Female Terminal | DS 650 X

278001009

$3.19

090

Male Terminal Housing, 26 Circuits

278001062

Unavailable

091

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

101

Open Barrel Terminal

278001392

$4.79

102

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

106

Male Housing, 2 Circuits

278001005

$19.49

107

Male Housing, 3 Circuits

278000997

$19.49

109

Female Housing, 5 Circuits

409209900

$9.59

110

Male Terminal

278000631

$4.39

112

Female Terminal

278000632

$2.09

115

Male Housing

278002378

$13.99

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

127

Male Lock, 3 Circuits

409207600

$3.19

139

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

140

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

142

MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000044

Unavailable

143

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

Unavailable

148

FEMALE TERMINAL HOUSING, 3 CIRC. - Call your local BRP dealership

515175249

Unavailable

150

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

Unavailable

154

MALE LOCK, 3 CIRCUITS - Call your local BRP dealership

710000043

Unavailable

155

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

Unavailable

160

Female Lock, 3 Circuits

515175248

Unavailable

162

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

165

PLUG - Call your local BRP dealership

515175303

Unavailable

172

Female Terminal

561503100

$2.41

186

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

196

Tie Wrap 142 mm

293750002

$1.25

197

Female Terminal

710000051

Unavailable

198

Female Terminal Housing, 4 Circ.

710000032

Unavailable

199

WIRE SEAL - Call your local BRP dealership

710000050

Unavailable

200

Cap

710000049

Unavailable

202

Female Terminal

278001114

$3.19

227

Male Terminal

409004300

$5.61

228

Female Terminal

409007300

$0.45

229

Female Terminal

278000223

$3.19

231

Female Housing, 2 Circuits

278000217

$9.59

236

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

238

Male Housing, 3 Circuits

278000273

$9.59

242

Wire Seal

278000218

$4.39

243

Wire Seal

710000048

$7.69

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

279

Male Terminal

409011300

$5.93

280

Female Terminal

409012100

$4.55

285

HOUSING-TAB - Call your local BRP dealership

710000078

Unavailable

286

Seal

409012300

$4.54

295

Insulated Sheath

278001008

$3.28

296

Insulated Sheath

278000770

$7.90

297

Insulated Sheath

278001007

$3.58

312

MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership

710000107

Unavailable

322

Female Terminal Housing, 3 Circ.

710000153

$9.95

328

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

Unavailable

329

Female Terminal

710000082

$7.69

331

PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership

219704446

Unavailable

355

Female Housing, 2 Circuits

515175658

$16.18

375

Male Terminal

710000218

Unavailable

376

HOUSING-TAB - Call your local BRP dealership

710000219

Unavailable

409

Plug

515175812

$2.19

410

Female Housing, 24 Circuits

515175801

$9.59

411

Retainer Block

515175802

$11.49

412

Wire Seal

515175803

$2.99

414

LOCK - Call your local BRP dealership

515175805

Unavailable

415

Female Terminal

515175806

$0.99

498

Female Housing

710000399

$16.49

501

FEMALE TERMINAL - Call your local BRP dealership

710000412

Unavailable

503

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710000414

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

527

Shrink Tubing

710000484

Unavailable

579

Wire Seal

710000504

$4.39

641

Male Housing, 2 Circuits

710000667

$8.32

678

Shrink Tubing

710000750

Unavailable
