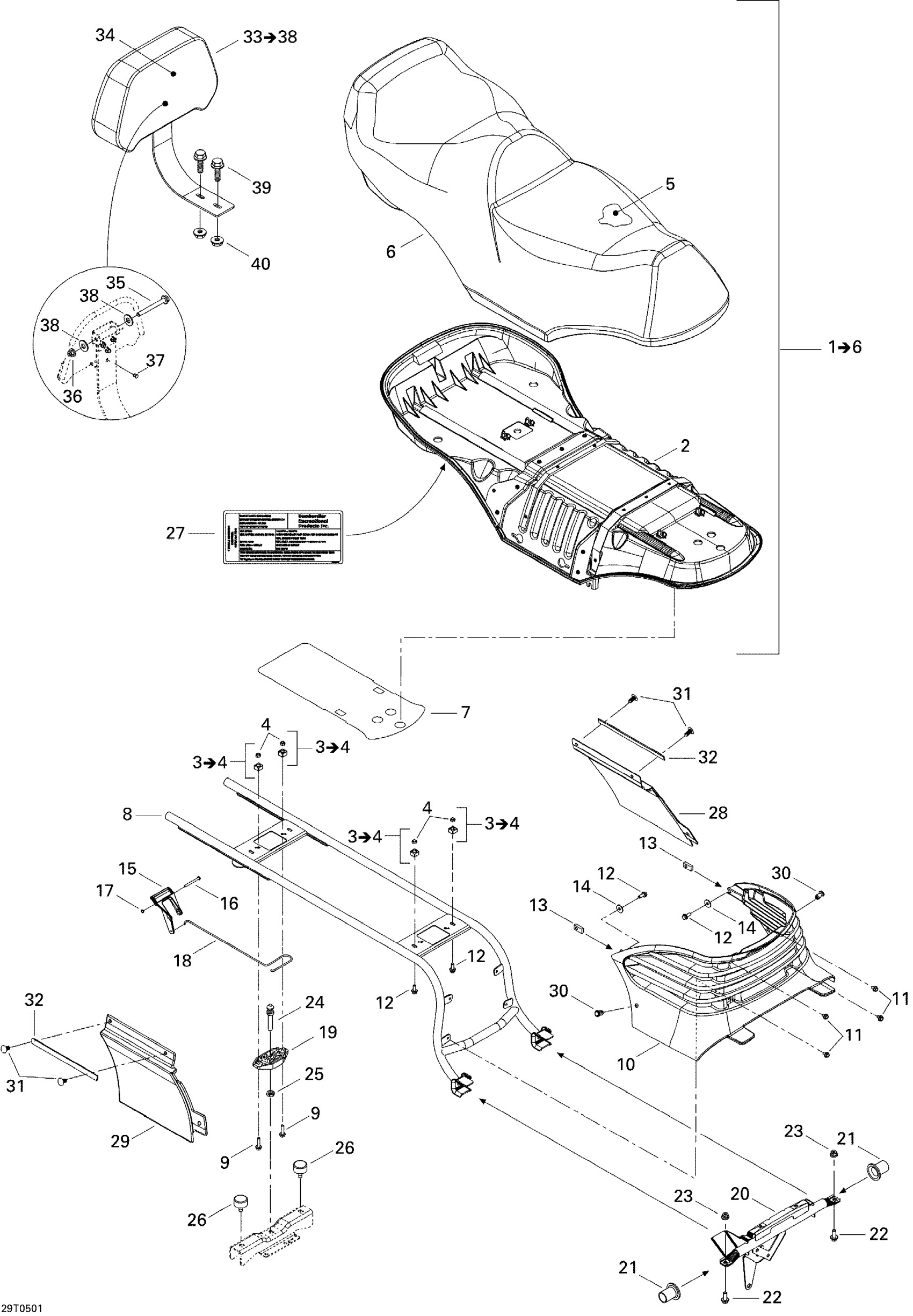

Can-Am Traxter Max Std & Max XT, 2005 09- Seat Diagram

#

Description
Price

1

SEAT ASS'Y - Call your local BRP dealership | Includes 1 To 6, STD, Viper Red

708000392

Unavailable

1

Seat Ass'y | Includes 1 To 6, XT, Yellow

708000393

Unavailable

1

Seat Ass'y | Includes 1 To 6, STD & XT, L. Green

708000394

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

4

Hex. Nut M6

232061600

$1.15

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Seat Cover | STD, Viper Red

708000395

Unavailable

6

Seat Cover | XT, Yellow

708000396

Unavailable

6

Seat Cover | STD & XT, L.Green

708000397

Unavailable

7

Reflective Sheet

708000434

Unavailable

8

Seat Support

708000345

Unavailable

9

Hex. Flange Screw M6 X 25

207662544

$0.64

10

Engine Cover

708000388

Unavailable

11

Hex. Forming Screw M6 X 10

210261050

$1.69

12

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

13

Nut Housing M6

708000042

Unavailable

14

Flat Washer

224061201

$1.37

15

Lever Latch

708000010

Unavailable

16

SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership

293150062

Unavailable

17

Push Nut

389804300

$0.53

18

SPRING - Call your local BRP dealership

708000015

Unavailable

19

Latch Base

708000034

Unavailable

20

Seat Pivot

708000411

Unavailable

21

SEAT BUSHING - Call your local BRP dealership

708000019

Unavailable

22

Hex. Flange Screw M8 X 20

207682046

$1.90

23

Hex. Elastic Flange Nut M8

233281416

$1.48

24

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

25

Hex. Jam Nut M10

232100600

$2.22

26

Rubber Stopper

708000758

$12.99

27

Emission Label

704900876

Unavailable

28

LH Panel | STD, Viper Red

705000669

Unavailable

28

LH Panel | XT, Yellow

705000694

Unavailable

28

LH Panel | STD & XT, L.Green

705000880

Unavailable

29

RH PANEL - Call your local BRP dealership | STD, Viper Red

705000670

Unavailable

29

RH PANEL - Call your local BRP dealership | XT, Yellow

705000695

Unavailable

29

RH Panel | STD & XT, L.Green

705000881

Unavailable

30

Tuflok Plastic Rivet

293150230

$1.47

31

Black Dart

293730010

$0.99

32

Gasket, Neoprene 2000Mm Long

219704476

$15.36

33

Backrest Ass'y | Includes 33 To 38

708000407

Unavailable

34

Backrest Cover

708000408

Unavailable

35

Hex. Screw M8 X 95

207089544

Unavailable

36

Hex. Flange Elastic Nut M8

233281414

$1.47

37

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

38

Hardened Washer

706200281

$2.85

39

Hex. Flange Screw M8 X 25

207682544

$1.35

40

Hex. Flange Elastic Nut M8

233281414

$1.47
