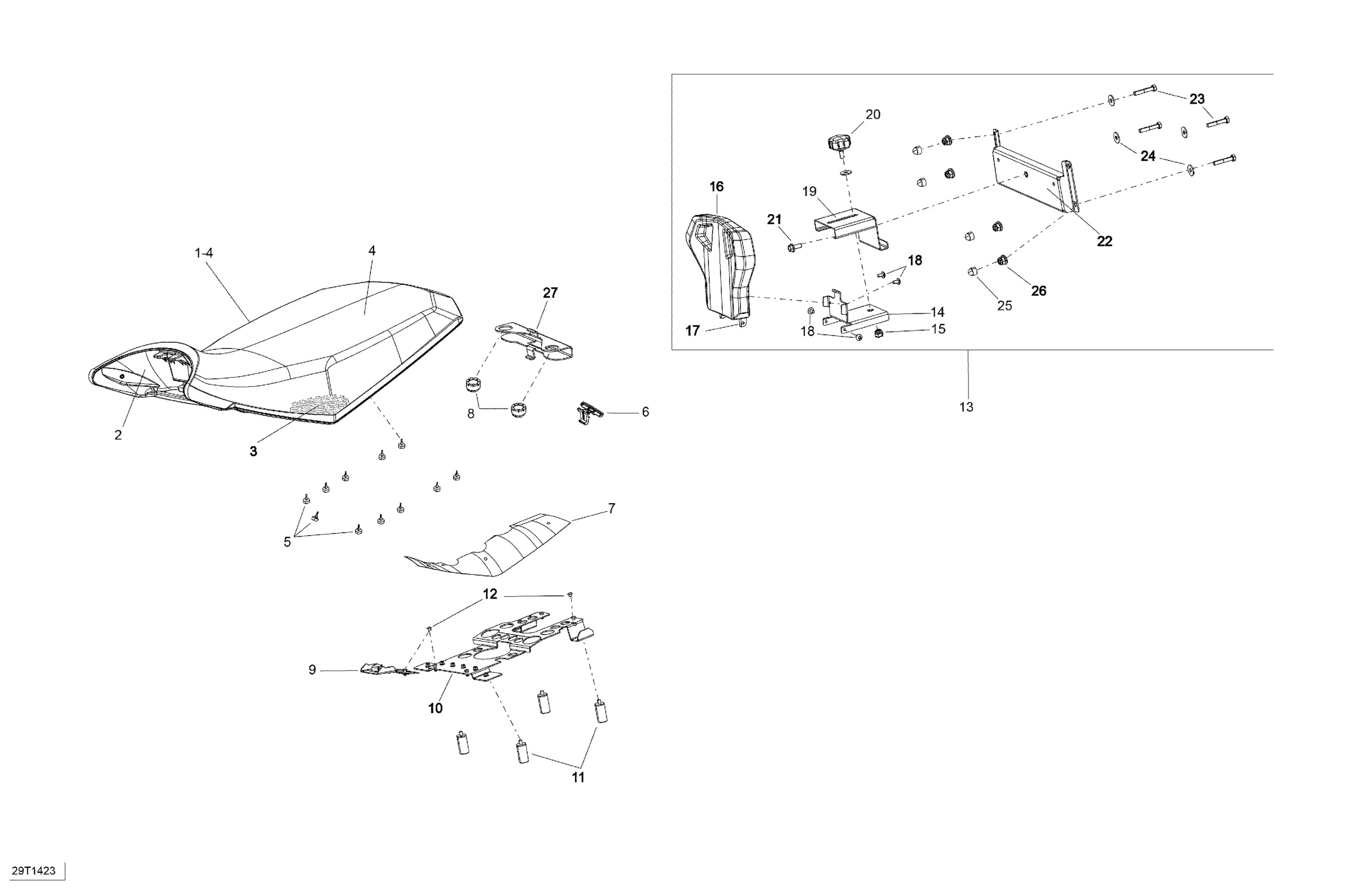

Can-Am Outlander 6x6 (International & T3), 2014 09- Seat _29T1423 Diagram

#

Description
Price

1

Seat Ass'y | Includes 1 to 4

708002491

$349.99

1

Seat Ass'y | Model-T3

708002208

Unavailable

2

Seat Base

708001118

Unavailable

3

Foam Seat

708000723

Unavailable

4

Black, Seat Cover

708000724

$77.49

5

Rubber Stopper

708000759

$4.19

6

Latch

708000909

$6.29

7

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

8

Bumper Rubber

708000760

$10.49

9

Front Bottom Support | Model-T3

605456520

Unavailable

10

Middle Bottom Support | Model-T3

605356519

Unavailable

11

RUBBER DAMPER - Call your local BRP dealership | Model-T3

605456546

Unavailable

12

Rivet | Model-T3

293150067

$2.89

13

Backrest Ass'y | Model-T3

708301345

Unavailable

14

Angle Support | Model-T3

705204093

Unavailable

15

Clinching Nut Hexert M8 | Model-T3

250100065

Unavailable

16

Backrest | Model-T3

708001794

Unavailable

17

Painted Backrest Plate Support | Model-T3

605356509

Unavailable

18

Torx Truss Screw M6 x 12 | Model-T3

250000675

$0.98

19

Backrest Fixing Body Painted | Model-T3

708001607

Unavailable

20

Handle M8 X 35 | Model-T3

510003533

$44.49

21

Hex. Flange Screw M8 X 20

207682046

$1.90

22

Horizontal Support | Model-T3

708001613

Unavailable

23

Hex. Screw M8 X 45

207084544

$1.48

24

Stainless Steel Flat Washer

234082670

$2.11

25

Cover | Model-T3

28056

$5.89

26

Hex. Elastic Stop Nut M8

232581414

$0.56

27

RAISER, SEAT (REAR) - Call your local BRP dealership | Model-T3

705204016

Unavailable
